Rugged Handheld

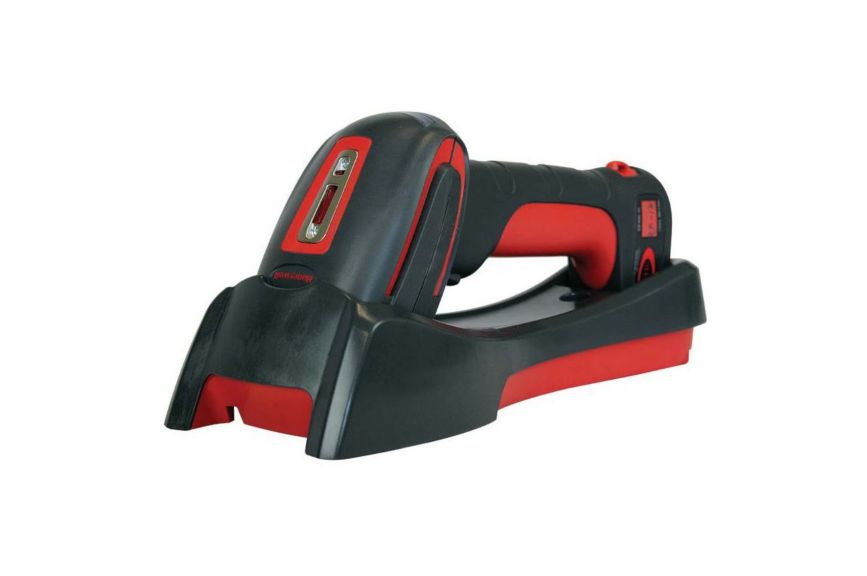

Granit 1911i Industrial Scanner

Granit 1911i Industrial Scanner

We optimized the Granit™: 1911i (wireless) area-imaging scanners for demanding, arm’:s length scanning of 1D and 2D barcodes. They deliver exceptional performance. Class-leading durability, too, with an IP65 rating to meet the demands of a harsh working environment. Equip your team with confidence. Choose Granit scanners.

  • With its extended linear depth-of-field, the scanner scans out-of-reach items with ease and allows users to scan 20 mil linear codes out to 75 cm (29.5 in) without sacrificing performance on 2D codes.
  • The long-lasting Lithium-Ion battery powers up to 50,000 scans per full charge and is removable without tools, ensuring maximum uptime for operations running multiple shifts.
  • The second-generation of the Honeywell TotalFreedomTM area-imaging development platform enables the loading and linking of multiple applications to enhance image decoding, data formatting and image processing –: eliminating the need for host system modifications.
  • Bluetooth Class 1, v2.1 radio enables movement up to 100 m (300 ft) from the base, and reduces interference with other wireless systems. Up to 7 imagers can communicate with a single base, reducing total cost of ownership.
  • The custom-built IP65-rated housing is able to withstand 5,000 1 m (3.3 ft) tumbles and survive 50 drops from 2 m (6.5 ft) at -20°:C (-4°:F), reducing service costs and increasing device uptime.

The Granit 1911i (wireless) area-imaging scanners are for businesses where arm&apos:s length 1D and 2D barcode scanning in harsh, unpredictable environments is the norm. And Granit scanners work seamlessly with Honeywell&apos:s industry-leading vehicle mount computers as part of a complete workflow solution. Scan 1D and 2D barcodes out to 75 cm (29.5 in). Bluetooth®: Class 1 (version 2.1) radio in the Granit 1911i gives you wireless connectivity and unrestricted movement up to 100 m (300 ft) from the base. Best-in-class durability with IP65-rated housing maximizes operator productivity in the harshest of environments and lowers overall cost of ownership. Built to survive 5,000 tumbles from 1 m (3.28 ft) and 50 drops to concrete from 2 m (6.5 ft) —: even at temperatures as low as -30°: C (-22°: F). Super bright LEDs, enhanced beeper volume, and vibrating tactile response counter loud machinery and poor lighting conditions, ensuring rapid feedback and eliminating redundant scanning. Powered by our Adaptus™: 6.0 imaging technology and its revolutionary decoding architecture, the Granit 1911i scanners equip you with the same exceptional barcode reading performance as the best-in-class Xenon series of area-imaging scanners.

Features

  • Features
    • Super Bright LEDs
    • Vibrating Tactile Response
    • Adaptus™ 6.0 Imaging Technology
    • Enhanced Beeper Volume
  • Form Factor
    • Gun Shape

Dimensions

  • Overall Dimensions
    • 13.3 x 7.5 x 19.5 cm
    • 5.2 x 2.9 x 7.6 in

Scanning Specifications

  • Brightness
    • 0 - 100000 lux
  • Skew
    • 65
  • Scanning Range
    • Standard Range (100% UPC out to 24 ft (600 mm))
  • Number of Scans
    • 50000
  • Print Contrast
    • 20
  • Pitch
    • 45
  • Motion Tolerance
    • Up to 610 cm/s (240 in/s) at 16.5 cm (6.5 in) and 381 cm/s (150 in/s) at 25 cm (10 in) for 13 mil UPC
  • Scan Pattern
    • Area Image
  • Depth of Field
    • 0.6 - 29.5 in
  • Decode Capability
    • 2D
    • 1D

Network

  • Bluetooth
    • Yes
  • Bluetooth Specifications
    • v2.1

Hardware

  • Aimer Type
    • Laser
  • Host System Interface
    • RS-232
    • KBW
    • USB
  • Wireless
    • Yes
  • Engine Type
    • 2D

Electrical

  • Input Voltage
    • 4 - 5.5 V DC

Environmental

  • Storage Temperature Range
    • - 40 - 158 °F
    • - 40 - 70 °C
  • Operating Temperature
    • - 20 - 50 °C
    • - 4 - 122 °F

Standards & Approvals

  • Tumble Specifications
    • 5,000 1 m (3.3 ft) tumbles
  • Protection Ratings
    • IP65
  • Drop Specifications
    • 50 2 m (6.5 ft) drops to concrete at -20 °C (-4 °F)

Service Terms

  • Warranty Duration
    • 3 yr

Features

  • Features
    • Super Bright LEDs
    • Vibrating Tactile Response
    • Adaptus™ 6.0 Imaging Technology
    • Enhanced Beeper Volume
  • Form Factor
    • Gun Shape

Dimensions

  • Overall Dimensions
    • 13.3 x 7.5 x 19.5 cm
    • 5.2 x 2.9 x 7.6 in

Scanning Specifications

  • Brightness
    • 0 - 100000 lux
  • Skew
    • 65
  • Scanning Range
    • Standard Range (100% UPC out to 24 ft (600 mm))
  • Number of Scans
    • 50000
  • Print Contrast
    • 20
  • Pitch
    • 45
  • Motion Tolerance
    • Up to 610 cm/s (240 in/s) at 16.5 cm (6.5 in) and 381 cm/s (150 in/s) at 25 cm (10 in) for 13 mil UPC
  • Scan Pattern
    • Area Image
  • Depth of Field
    • 0.6 - 29.5 in
  • Decode Capability
    • 2D
    • 1D

Network

  • Bluetooth
    • Yes
  • Bluetooth Specifications
    • v2.1

Hardware

  • Aimer Type
    • Laser
  • Host System Interface
    • RS-232
    • KBW
    • USB
  • Wireless
    • Yes
  • Engine Type
    • 2D

Electrical

  • Input Voltage
    • 4 - 5.5 V DC

Environmental

  • Storage Temperature Range
    • - 40 - 158 °F
    • - 40 - 70 °C
  • Operating Temperature
    • - 20 - 50 °C
    • - 4 - 122 °F

Standards & Approvals

  • Tumble Specifications
    • 5,000 1 m (3.3 ft) tumbles
  • Protection Ratings
    • IP65
  • Drop Specifications
    • 50 2 m (6.5 ft) drops to concrete at -20 °C (-4 °F)

Service Terms

  • Warranty Duration
    • 3 yr
  • Features : Super Bright LEDs|Vibrating Tactile Response|Adaptus™ 6.0 Imaging Technology|Enhanced Beeper Volume
  • Form Factor : Gun Shape
  • Overall Dimensions : 13.3 x 7.5 x 19.5 cm|5.2 x 2.9 x 7.6 in
  • Brightness : 0 - 100000 lux
  • Skew : 65
  • Scanning Range : Standard Range (100% UPC out to 24 ft (600 mm))
  • Number of Scans : 50000
  • Print Contrast : 20
  • Pitch : 45
  • Motion Tolerance : Up to 610 cm/s (240 in/s) at 16.5 cm (6.5 in) and 381 cm/s (150 in/s) at 25 cm (10 in) for 13 mil UPC
  • Scan Pattern : Area Image
  • Depth of Field : 0.6 - 29.5 in
  • Decode Capability : 2D|1D
  • Bluetooth : Yes
  • Bluetooth Specifications : v2.1
  • Aimer Type : Laser
  • Host System Interface : RS-232|KBW|USB
  • Wireless : Yes
  • Engine Type : 2D
  • Input Voltage : 4 - 5.5 V DC
  • Storage Temperature Range : - 40 - 158 °F|- 40 - 70 °C
  • Operating Temperature : - 20 - 50 °C|- 4 - 122 °F
  • Tumble Specifications : 5,000 1 m (3.3 ft) tumbles
  • Protection Ratings : IP65
  • Drop Specifications : 50 2 m (6.5 ft) drops to concrete at -20 °C (-4 °F)
  • Warranty Duration : 3 yr
