Magnetic Position Sensors

RTP Series

Non-contact magnetically biased, Hall-effect IC senses rotary movement of the actuator over a set operating range.

Distributor Inventory

The RTP Series Hall-effect Rotary Position Sensors provide non-contact sensing in harsh transportation and industrial applications at a competitive cost.

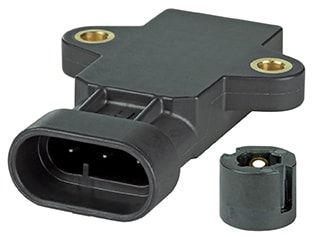

These products take non-contact sensing to the next level by separating the magnet from the sensor body. The absence of the actuator shaft removes the wear and tear on the bearings caused by radial forces. A choice of a bare or a housed magnet is available.

These products use a magnetically biased, Hall-effect integrated circuit (IC) to sense rotary movement of the actuator over a set operating range. Rotation of the actuator changes the magnet’s position relative to the IC. The resulting flux density change is converted to a linear output.

The IC, together with conditioning and protection circuitry, is sealed in an IP69K-qualified rugged package for durability in most harsh environments.

Nine operating ranges from 50° to 360° are tolerant to over-travel and allow use in most common applications. Low voltage and high voltage versions cover an input voltage range of 4.5 Vdc to 30 Vdc.

Honeywell’s industry-leading capabilities in research and development provide the customer with known quality and support.

Others

  • EMI
    • Radiated immunity: 100 V/m from 200 MHz to 1000 MHz per ISO11452-2; conducted immunity: 100 mA BCI per ISO11452-4 from 1 MHz to 200 MHz
    • Radiated immunity: 100 V/m from 200 MHz to 1000 MHz per ISO11452-2; conducted immunity: 100 mA BCI per ISO11452-4 from 1 MHz to 400 MHz
  • Mounting Hole
    • round
  • Pinout Style
    • European
    • North American
  • Operating Temperature
    • -40 °C to 125 °C [-40 °F to 257 °F]
  • Operating Range
    • 120° (±60°)
    • 50° (±25°)
    • 90° (±45°)
    • 60° (±30°)
    • 360° (±180°)
    • 70° (±35°)
    • 270° (±135°)
    • 350° (±175°)
  • Termination
    • AMP Superseal connector
  • Sealing
    • IP69K
  • Output Signal Delay
    • 4 ms typ.
  • Supply Voltage Type
    • Low voltage
    • High voltage
  • Accuracy
    • ±2.0%
  • Reverse Polarity Protection
    • -10 Vdc
    • -30 Vdc
  • Output Signal
    • Standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric
    • Standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric
  • Life
    • Infinite rotation
  • Supply Voltage
    • 5 Vdc
    • 10 Vdc to 30 Vdc
  • Series Name
    • RTP
  • EMC
    • Exceeds CE requirements
  • Output Style
    • Single
  • Current Consumption
    • 20 mA max. (normal), 25 mA max. (during output to ground short)
    • 32 mA max. (normal), 47 mA max. (during output to ground short)

Others

  • EMI
    • Radiated immunity: 100 V/m from 200 MHz to 1000 MHz per ISO11452-2; conducted immunity: 100 mA BCI per ISO11452-4 from 1 MHz to 200 MHz
    • Radiated immunity: 100 V/m from 200 MHz to 1000 MHz per ISO11452-2; conducted immunity: 100 mA BCI per ISO11452-4 from 1 MHz to 400 MHz
  • Mounting Hole
    • round
  • Pinout Style
    • European
    • North American
  • Operating Temperature
    • -40 °C to 125 °C [-40 °F to 257 °F]
  • Operating Range
    • 120° (±60°)
    • 50° (±25°)
    • 90° (±45°)
    • 60° (±30°)
    • 360° (±180°)
    • 70° (±35°)
    • 270° (±135°)
    • 350° (±175°)
  • Termination
    • AMP Superseal connector
  • Sealing
    • IP69K
  • Output Signal Delay
    • 4 ms typ.
  • Supply Voltage Type
    • Low voltage
    • High voltage
  • Accuracy
    • ±2.0%
  • Reverse Polarity Protection
    • -10 Vdc
    • -30 Vdc
  • Output Signal
    • Standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric
    • Standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric
  • Life
    • Infinite rotation
  • Supply Voltage
    • 5 Vdc
    • 10 Vdc to 30 Vdc
  • Series Name
    • RTP
  • EMC
    • Exceeds CE requirements
  • Output Style
    • Single
  • Current Consumption
    • 20 mA max. (normal), 25 mA max. (during output to ground short)
    • 32 mA max. (normal), 47 mA max. (during output to ground short)
  • EMI : Radiated immunity: 100 V/m from 200 MHz to 1000 MHz per ISO11452-2; conducted immunity: 100 mA BCI per ISO11452-4 from 1 MHz to 200 MHz|Radiated immunity: 100 V/m from 200 MHz to 1000 MHz per ISO11452-2; conducted immunity: 100 mA BCI per ISO11452-4 from 1 MHz to 400 MHz
  • Mounting Hole : round
  • Pinout Style : European|North American
  • Operating Temperature : -40 °C to 125 °C [-40 °F to 257 °F]
  • Operating Range : 120° (±60°)|50° (±25°)|90° (±45°)|60° (±30°)|360° (±180°)|70° (±35°)|270° (±135°)|350° (±175°)
  • Termination : AMP Superseal connector
  • Sealing : IP69K
  • Output Signal Delay : 4 ms typ.
  • Supply Voltage Type : Low voltage|High voltage
  • Accuracy : ±2.0%
  • Reverse Polarity Protection : -10 Vdc|-30 Vdc
  • Output Signal : Standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric|Standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric
  • Life : Infinite rotation
  • Supply Voltage : 5 Vdc|10 Vdc to 30 Vdc
  • Series Name : RTP
  • EMC : Exceeds CE requirements
  • Output Style : Single
  • Current Consumption : 20 mA max. (normal), 25 mA max. (during output to ground short)|32 mA max. (normal), 47 mA max. (during output to ground short)
