Switches

Rotary Switches

Lever or knob action. 3- and 4-positions. Integral connectors (Metripack 280 and Sumitomo). Environmentally sealed design

Overview

Customization is standard with Honeywell's rotary switches, which are tested to withstand a wide range of environmental conditions and contaminants such as temperature cycling, chemical splashes, pressure wash, vibration, dust, humidity, and salt.

Honeywell's broad range of product options simplifies the way you build the rotary switch for and application. Optional features of momentary positions, terminal and integral connector types, UL-ratings, and various circuitry configurations are available to promote design flexibility. These options, coupled with the wide electrical rating and temperature range, come standard on every switch to meet the growing needs of our customers.

Features and benefits:
  • Durable construction: polypropylene plastic housing (rear) improves durability and supports equipment.
  • Wide range of configuration: two-, three-, or four-position switches, maintained and momentary (recoil) positions and numerous circuitry configurations allow for customization of equipment operation and control.
  • Many connector choices: integral connector (Metri-Pack, Sumitomo): Two-, three-, or four-position switches. Screw terminal: Two- or three-position switches.
  • Faster assembly: integral connectors facilitate quick assembly and minimize the potential for wiring errors.
  • Longer switch life: thanks to their ability to keep dirt and moisture out of the contact chamber.

Designed to withstand harsh environments with a durable, environmentally-sealed design, Honeywell rotary switches are found in rugged applications, from off-road vehicles like ATVs, snowmobiles, and motorcycles to agriculture, construction, industrial, lawn and garden equipment. Other product applications include:

  • golf carts
  • aerial lifts
  • telehandlers
  • skid loaders
  • forklifts
  • tractors
  • material handlers
  • marine equipment
  • generators
Specifications

Others

  • Chamber Sealing
    • O-ring
  • Mounting
    • Panel
  • Electrical Rating
    • 12 Vdc, 20 A; 24 Vdc, 8 A (Res.)
  • Multiple Key Codes
    • Optional
  • Diameter
    • 22,1 mm [0.87 in]
  • Connector
    • MetriPak 280
  • Unique Key Codes
    • Optional
  • Thickness
    • 3,18 mm to 6,35 mm [0.15 in to 0.25 in]
  • Series Name
    • Key and Rotary Switches
  • Position
    • Four [Off-Ignition-Ignition Heat-Ignition Heat Start (momentary)]; 4 terminals
    • Three [Off (magneto ground)-On-Start (momentary)]; 6 terminals
    • Three [Off-On(1)-On(2 Dual Circuit)]; 4 terminals
    • Three [Off-On-Start (momentary)]; 4 terminals
    • Two (Off-On); 4 terminals
  • Cycle Life (Rotary)
    • 25000 Cycles
  • Depth Behind Panel
    • 43,43 mm [1.71 in]
  • Temperature
    • -40 °C to 85 °C] -40 °F to 185 °F]
  • Match Existing Key Codes
    • Optional (with factory approval)

Others

  • Chamber Sealing
    • O-ring
  • Mounting
    • Panel
  • Electrical Rating
    • 12 Vdc, 20 A; 24 Vdc, 8 A (Res.)
  • Multiple Key Codes
    • Optional
  • Diameter
    • 22,1 mm [0.87 in]
  • Connector
    • MetriPak 280
  • Unique Key Codes
    • Optional
  • Thickness
    • 3,18 mm to 6,35 mm [0.15 in to 0.25 in]
  • Series Name
    • Key and Rotary Switches
  • Position
    • Four [Off-Ignition-Ignition Heat-Ignition Heat Start (momentary)]; 4 terminals
    • Three [Off (magneto ground)-On-Start (momentary)]; 6 terminals
    • Three [Off-On(1)-On(2 Dual Circuit)]; 4 terminals
    • Three [Off-On-Start (momentary)]; 4 terminals
    • Two (Off-On); 4 terminals
  • Cycle Life (Rotary)
    • 25000 Cycles
  • Depth Behind Panel
    • 43,43 mm [1.71 in]
  • Temperature
    • -40 °C to 85 °C] -40 °F to 185 °F]
  • Match Existing Key Codes
    • Optional (with factory approval)
  • Chamber Sealing : O-ring
  • Mounting : Panel
  • Electrical Rating : 12 Vdc, 20 A; 24 Vdc, 8 A (Res.)
  • Multiple Key Codes : Optional
  • Diameter : 22,1 mm [0.87 in]
  • Connector : MetriPak 280
  • Unique Key Codes : Optional
  • Thickness : 3,18 mm to 6,35 mm [0.15 in to 0.25 in]
  • Series Name : Key and Rotary Switches
  • Position : Four [Off-Ignition-Ignition Heat-Ignition Heat Start (momentary)]; 4 terminals|Three [Off (magneto ground)-On-Start (momentary)]; 6 terminals|Three [Off-On(1)-On(2 Dual Circuit)]; 4 terminals|Three [Off-On-Start (momentary)]; 4 terminals|Two (Off-On); 4 terminals
  • Cycle Life (Rotary) : 25000 Cycles
  • Depth Behind Panel : 43,43 mm [1.71 in]
  • Temperature : -40 °C to 85 °C] -40 °F to 185 °F]
  • Match Existing Key Codes : Optional (with factory approval)
Manuals and Guides
Name
Description
File Size
Date
Size
Controls, Monitors, and Pressure Switches Range Guide
application/pdf 5.52 MB
10/7/2021
5.52 MB
Transportation Range Guide
application/pdf 18.57 MB
10/7/2021
18.57 MB
Brochure
Name
Description
File Size
Date
Size
Partners Providing Technical Safety and Productivity Solutions -
application/pdf 1.04 MB
4/11/2024
1.04 MB
Application Note
Name
Description
File Size
Date
Size
Forestry Vehicles
application/pdf 1.05 MB
12/20/2022
1.05 MB
Platform Vehicles
application/pdf 628.05 KB
12/20/2022
628.05 KB
All-Terrain Vehicle Solutions
application/pdf 803.57 KB
12/21/2022
803.57 KB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Exploded view diagram of Honeywell sensors and switches in oil rig applications
application/pdf 6.35 MB
9/8/2022
6.35 MB
Product Photo
Name
Description
File Size
Date
Size

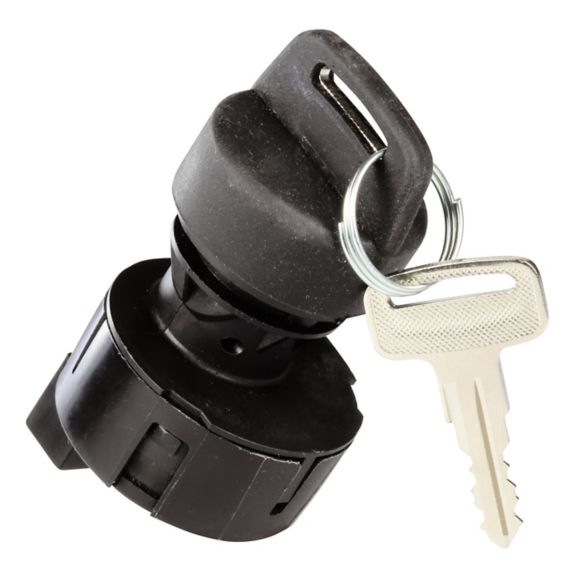

89477 highres photo
image/jpeg 497.67 KB
10/7/2021
497.67 KB

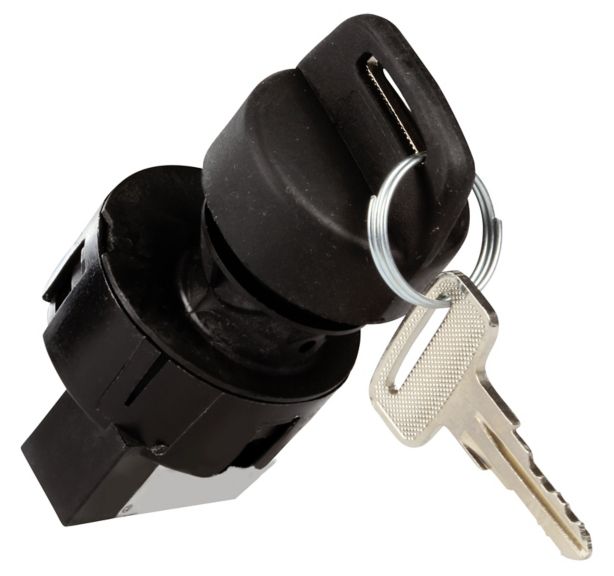

89165 lowres photo
image/jpeg 68.21 KB
10/7/2021
68.21 KB

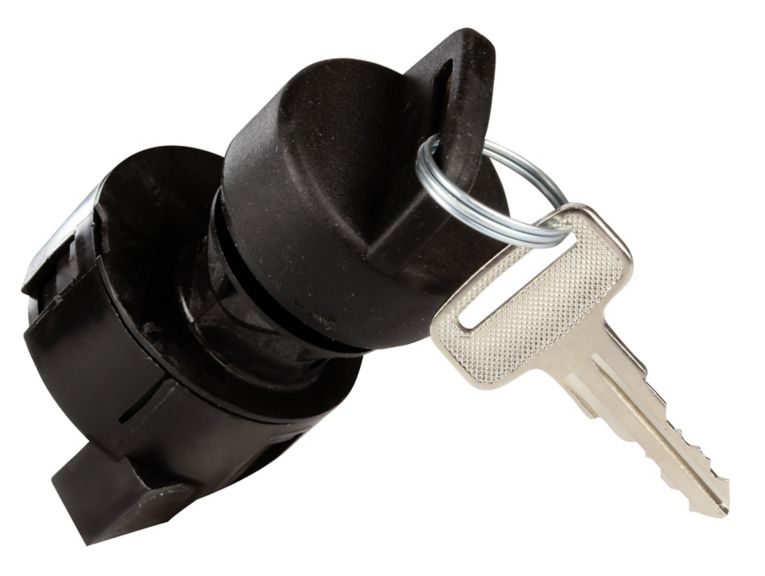

89697 highres photo
image/jpeg 588.5 KB
10/7/2021
588.5 KB

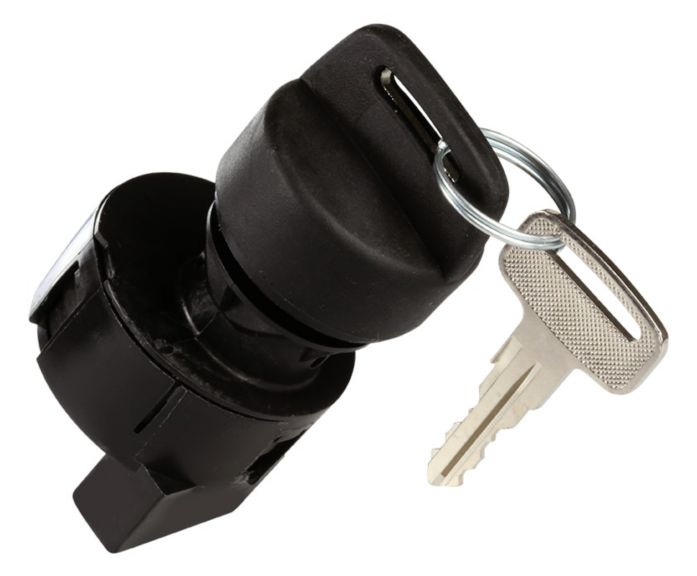

89477 lowres photo
image/jpeg 53.91 KB
10/7/2021
53.91 KB
84825 highres photo
image/jpeg 365.5 KB
10/7/2021
365.5 KB

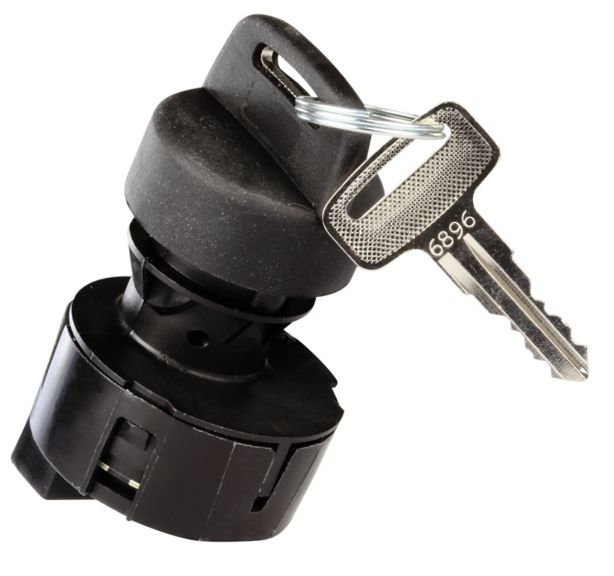

84826 highres photo
image/jpeg 663.12 KB
10/7/2021
663.12 KB
89165 highres photo
image/jpeg 566.54 KB
10/7/2021
566.54 KB
89697 lowres photo
image/jpeg 71.8 KB
10/7/2021
71.8 KB

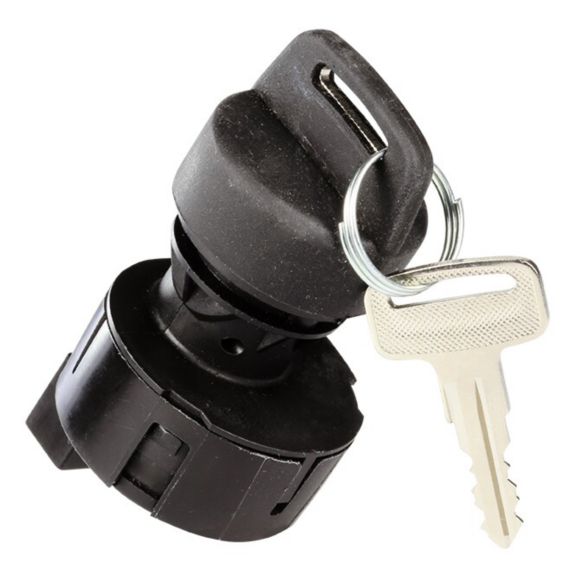

84825 lowres photo
