Switches

E-Stop Switches

Positive contact closure and opening. Environmentally sealed design. UV resistant knob for outdoor use. Variety of knob colors

Geral

Honeywell's push-pull/e-stop switches are robust, environmentally sealed, sliding contact switches incorporating two circuits with multiple combinations. The sliding contacts provide positive contact closure and opening when the switch knob is operated. Contact closures are available with both circuits closed in the push position, or both circuits closed in the pull position, or alternate closure, one closed and one open. Dual o-ring design protects the contact chamber by isolating it from any moisture or any other contaminant.

Especificações

Outros

  • Diameter
    • 45,21 mm [1.78 in]
  • Cycle Life (Rotary)
    • 25000 Cycles
  • Depth Behind Panel
    • 43,43 mm [1.71 in]
  • Electrical Rating
    • 12 Vdc to 14 Vdc, 20 A; 24 Vdc, 10 A
  • Housing Material
    • Glass filed Nylon
  • Chamber Sealing
    • O-ring
  • Button Material
    • Acetal
  • Temperature
    • -40 °C to 100 °C [-40 °F to 212 °F]
  • Series Name
    • Push Pull/eStop Switches
  • Thickness
    • 1,27 mm to 4,83 mm [0.05 in to 0.19 in]
  • Connector
    • Screw
  • Position
    • 1NO and 1NC circuits in push
    • 2NC circuits in push
    • 2NO circuits in push
  • Mounting
    • Panel (hole diameter: 22 mm [0.87 in])

Outros

  • Diameter
    • 45,21 mm [1.78 in]
  • Cycle Life (Rotary)
    • 25000 Cycles
  • Depth Behind Panel
    • 43,43 mm [1.71 in]
  • Electrical Rating
    • 12 Vdc to 14 Vdc, 20 A; 24 Vdc, 10 A
  • Housing Material
    • Glass filed Nylon
  • Chamber Sealing
    • O-ring
  • Button Material
    • Acetal
  • Temperature
    • -40 °C to 100 °C [-40 °F to 212 °F]
  • Series Name
    • Push Pull/eStop Switches
  • Thickness
    • 1,27 mm to 4,83 mm [0.05 in to 0.19 in]
  • Connector
    • Screw
  • Position
    • 1NO and 1NC circuits in push
    • 2NC circuits in push
    • 2NO circuits in push
  • Mounting
    • Panel (hole diameter: 22 mm [0.87 in])
  • Diameter : 45,21 mm [1.78 in]
  • Cycle Life (Rotary) : 25000 Cycles
  • Depth Behind Panel : 43,43 mm [1.71 in]
  • Electrical Rating : 12 Vdc to 14 Vdc, 20 A; 24 Vdc, 10 A
  • Housing Material : Glass filed Nylon
  • Chamber Sealing : O-ring
  • Button Material : Acetal
  • Temperature : -40 °C to 100 °C [-40 °F to 212 °F]
  • Series Name : Push Pull/eStop Switches
  • Thickness : 1,27 mm to 4,83 mm [0.05 in to 0.19 in]
  • Connector : Screw
  • Position : 1NO and 1NC circuits in push|2NC circuits in push|2NO circuits in push
  • Mounting : Panel (hole diameter: 22 mm [0.87 in])
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Push-Pull and E-Stop Switches Datasheet
application/pdf 1.43 MB
12/12/2022
1.43 MB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Transportation Range Guide
application/pdf 18.57 MB
10/4/2021
18.57 MB
Over 50,000 products ranging from snap-action, limit, toggle, and pressure switches to position, speed, pressure, and airflow sensors, Honeywell Sensing and Control (S&C) has one of the broadest sensing and switching portfolios.
application/pdf 5.57 MB
9/2/2021
5.57 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Partners Providing Technical Safety and Productivity Solutions
application/pdf 8.05 MB
10/4/2021
8.05 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Industrial Product Line Card --
application/pdf 2.24 MB
10/25/2022
2.24 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Platform Vehicles
application/pdf 628.05 KB
12/20/2022
628.05 KB
Forestry Vehicles
application/pdf 1.05 MB
12/20/2022
1.05 MB
All-Terrain Vehicle Solutions
application/pdf 803.57 KB
12/21/2022
803.57 KB
Sensors and Switches in Front Loaders
application/pdf 2.54 MB
9/2/2021
2.54 MB
Sensors and Switches in Mobile Cranes
application/pdf 1.98 MB
9/2/2021
1.98 MB
Exploded view diagram of Honeywell sensors and switches in oil rig applications
application/pdf 6.35 MB
9/9/2022
6.35 MB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

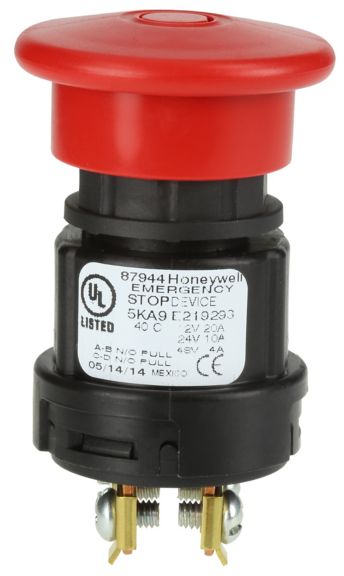

87944 highres photo
image/jpeg 476.65 KB
9/2/2021
476.65 KB
89496 lowres photo
image/jpeg 14.7 KB
9/2/2021
14.7 KB

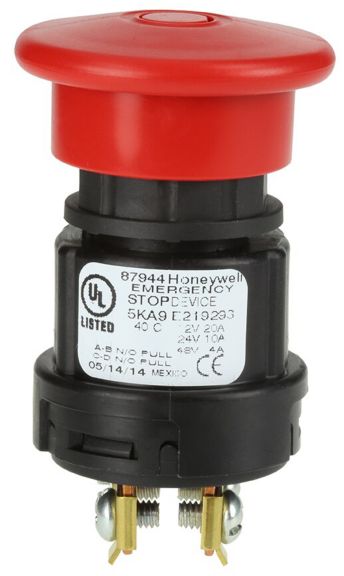

87944 lowres photo
image/jpeg 62.02 KB
9/2/2021
62.02 KB

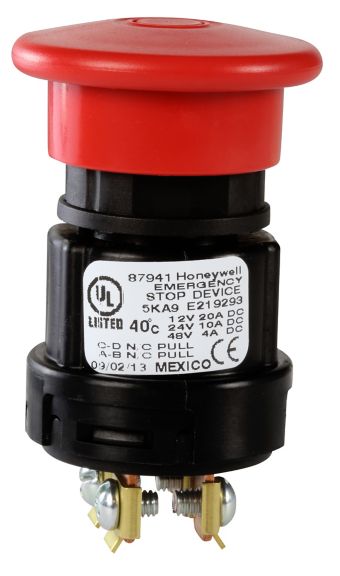

87941 highres photo
image/jpeg 731.07 KB
9/2/2021
731.07 KB
E-Stop Switches Product Photos
application/zip 2.21 MB
9/6/2021
2.21 MB
87941 lowres photo
image/jpeg 75.39 KB
9/2/2021
75.39 KB

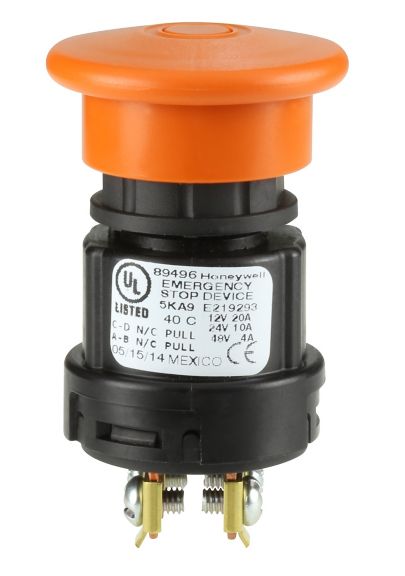

89496 highres photo
image/jpeg 212.81 KB
9/2/2021
212.81 KB
87943 highres photo
image/jpeg 683.51 KB
9/2/2021
683.51 KB

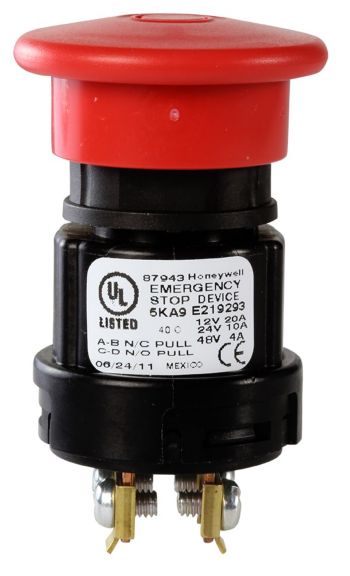

87943 lowres photo
