Switches

Key Switches

Key action. 2-, 3-, or 4-position switching. Sliding contacts. Integral connectors. Screw terminals. Environmentally sealed

Geral

Customization is standard with Honeywell’s key and ignition switches. Honeywell’s broad range of product options make building the specific key switch for an application simple. Optional features of multiple unique key codes, momentary positions, terminal and integral connector types, UL-ratings, and various circuitry configurations are available to provide design flexibility.

To maintain consistent branding, Honeywell also offers over-molded keys with custom logos. These options, coupled with the wide electrical rating and temperature range, come standard on every switch to meet growing customers’ needs.

These rugged and reliable switches increase application reliability and facilitate seamless equipment operation and control with their ability to keep dirt and moisture out of the contact chamber, thereby prolonging switch life. The two-, three-, and four position key switch options easily integrate into specific application designs.

Designed to withstand harsh environments with a robust, environmentally sealed design, Honeywell key and ignition switches are found in the toughest applications, from off-road vehicles like ATVs, snowmobiles, and motorcycles to agriculture, construction, industrial, and lawn and garden equipment.

Especificações

Outros

  • Diameter
    • 22,1 mm [0.87 in]
  • Series Name
    • Key and Rotary Switches
  • Mounting
    • Panel
  • Depth Behind Panel
    • 39,88 mm [1.57 in]
    • 43,43 mm [1.71 in]
  • Position
    • Three (Off-On-Start); 3 terminals
    • Three (On-Off-On); 6 terminals
    • Two (Off-On(2 circuit)); 6 terminals
    • Two (Off-On); 3 terminals
  • Electrical Rating
    • 12 Vdc, 20 A; 24 Vdc, 10 A; 48 Vdc, 4 A (Res.)
  • Multiple Key Codes
    • Optional
  • Connector
    • Screw
  • Thickness
    • 3,18 mm to 6,35 mm [0.15 in to 0.25 in]
  • Cycle Life (Rotary)
    • 25000 Cycles
  • Chamber Sealing
    • O-ring
  • Match Existing Key Codes
    • Optional (with factory approval)
  • Unique Key Codes
    • Optional
  • Temperature
    • -40 °C to 85 °C] -40 °F to 185 °F]

Outros

  • Diameter
    • 22,1 mm [0.87 in]
  • Series Name
    • Key and Rotary Switches
  • Mounting
    • Panel
  • Depth Behind Panel
    • 39,88 mm [1.57 in]
    • 43,43 mm [1.71 in]
  • Position
    • Three (Off-On-Start); 3 terminals
    • Three (On-Off-On); 6 terminals
    • Two (Off-On(2 circuit)); 6 terminals
    • Two (Off-On); 3 terminals
  • Electrical Rating
    • 12 Vdc, 20 A; 24 Vdc, 10 A; 48 Vdc, 4 A (Res.)
  • Multiple Key Codes
    • Optional
  • Connector
    • Screw
  • Thickness
    • 3,18 mm to 6,35 mm [0.15 in to 0.25 in]
  • Cycle Life (Rotary)
    • 25000 Cycles
  • Chamber Sealing
    • O-ring
  • Match Existing Key Codes
    • Optional (with factory approval)
  • Unique Key Codes
    • Optional
  • Temperature
    • -40 °C to 85 °C] -40 °F to 185 °F]
  • Diameter : 22,1 mm [0.87 in]
  • Series Name : Key and Rotary Switches
  • Mounting : Panel
  • Depth Behind Panel : 39,88 mm [1.57 in]|43,43 mm [1.71 in]
  • Position : Three (Off-On-Start); 3 terminals|Three (On-Off-On); 6 terminals|Two (Off-On(2 circuit)); 6 terminals|Two (Off-On); 3 terminals
  • Electrical Rating : 12 Vdc, 20 A; 24 Vdc, 10 A; 48 Vdc, 4 A (Res.)
  • Multiple Key Codes : Optional
  • Connector : Screw
  • Thickness : 3,18 mm to 6,35 mm [0.15 in to 0.25 in]
  • Cycle Life (Rotary) : 25000 Cycles
  • Chamber Sealing : O-ring
  • Match Existing Key Codes : Optional (with factory approval)
  • Unique Key Codes : Optional
  • Temperature : -40 °C to 85 °C] -40 °F to 185 °F]
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
application/pdf 7.62 MB
9/2/2021
7.62 MB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Over 50,000 products ranging from snap-action, limit, toggle, and pressure switches to position, speed, pressure, and airflow sensors, Honeywell Sensing and Control (S&C) has one of the broadest sensing and switching portfolios.
application/pdf 5.57 MB
9/2/2021
5.57 MB
Transportation Range Guide
application/pdf 18.57 MB
10/4/2021
18.57 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Partners Providing Technical Safety and Productivity Solutions -
application/pdf 1.04 MB
4/11/2024
1.04 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Platform Vehicles
application/pdf 628.05 KB
12/20/2022
628.05 KB
Forestry Vehicles
application/pdf 1.05 MB
12/20/2022
1.05 MB
All-Terrain Vehicle Solutions
application/pdf 803.57 KB
12/21/2022
803.57 KB
Construction Vehicles -
application/pdf 984.29 KB
12/20/2022
984.29 KB
Sensors and Switches in Front Loaders
application/pdf 2.54 MB
9/2/2021
2.54 MB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Exploded view diagram of Honeywell sensors and switches in oil rig applications
application/pdf 6.35 MB
9/9/2022
6.35 MB
Sensors and Switches in Mobile Cranes
application/pdf 1.98 MB
9/2/2021
1.98 MB
eBook
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Redefining Road Rail & Rugged Applications
application/pdf 28.35 MB
12/20/2022
28.35 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

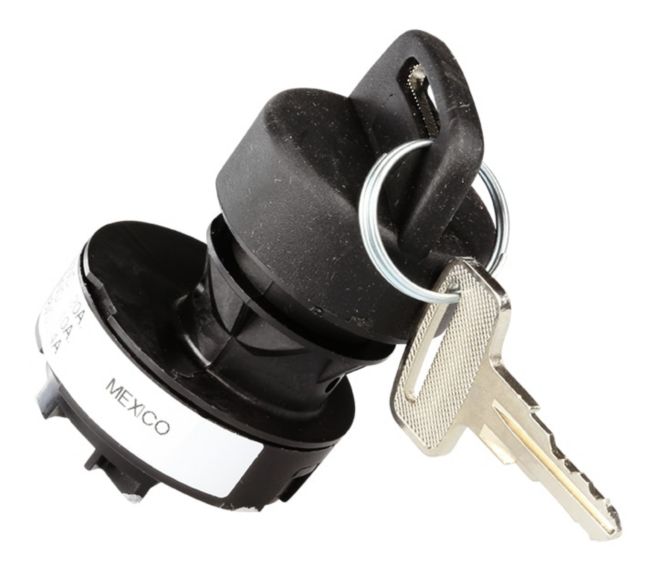

84828 lowres photo
image/jpeg 56.79 KB
9/2/2021
56.79 KB

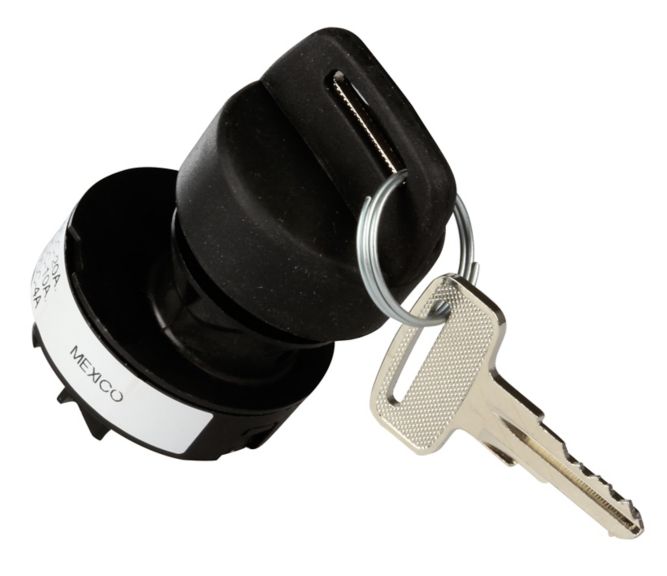

84829 highres photo
image/jpeg 491.5 KB
9/2/2021
491.5 KB

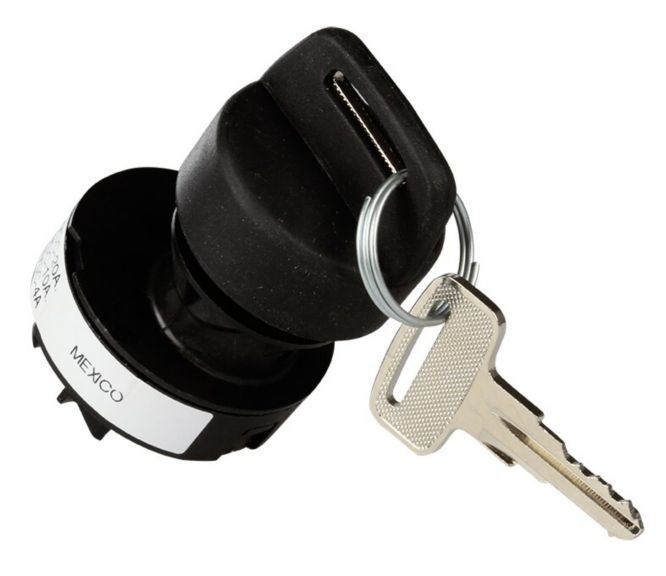

84829 lowres photo
image/jpeg 55.79 KB
9/2/2021
55.79 KB

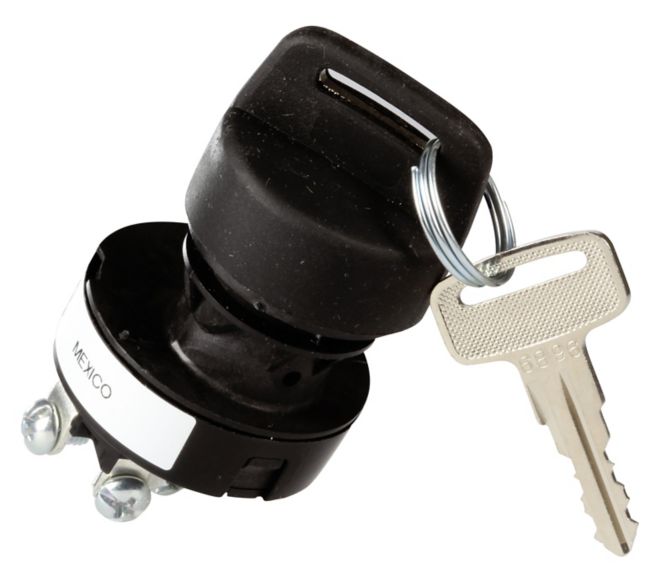

84830 highres photo
