Magnetic Position Sensors

Arc

Arc sensing ranges of 0° to 100° & 0° to 180°. Analog Vdc output

The Honeywell SMART Arc Position Sensor is one of the most durable, adaptable, lightweight, and non-contact position sensors available, enabling absolute position sensing with enhanced accuracy. This simple, robust, arc position sensor offers an IP69K sealed package, eliminating mechanical failure mechanisms, reducing wear and tear, improving reliability and durability, and minimizing downtime.

The SMART Arc Position Sensor is a non-contact sensing solution, providing highly accurate motion control and improving operation efficiency and safety. This Honeywell position sensor utilizes magnetoresistive technology to detect the position of a magnet relative to the sensor in one of two available sensing ranges:

  • 0º to 100º
  • 0º to 180º

Why is the SMART Position Sensor smart? SMART means that this is a sensor that can essentially think for itself. SMART Position Sensors provide a self-diagnostics feature and data gathering for enhanced reliability and closed-loop feedback control.

These devices use a patented combination of an ASIC (Application-Specific Integrated Circuit) and an array of MR (magnetoresistive) sensors to accurately and reliably determine the position of a magnet attached to a moving object so that the object’s position can be determined or controlled.

The MR array measures the output of the MR sensors mounted along the magnet’s direction of travel. The output and the MR sensor sequence determine the nearest pair of MR sensors to the center of the magnet location. The output of these two MR sensors is then used to determine the position of the magnet between them.

Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SMART Position Sensor, 100� and 180� Arc Configurations --
application/pdf 1.02 MB
10/25/2022
1.02 MB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Transportation Range Guide
application/pdf 18.57 MB
10/4/2021
18.57 MB
Position Sensors Product Range Guide
application/pdf 4.85 MB
10/4/2021
4.85 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
50061061: SMART Position Sensor, 100� and 180� Arc Configurations (English, German, Chinese) --
application/pdf 1.13 MB
10/25/2022
1.13 MB
Modelo CAD
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Download SPS A100D HAMS CAD Rendering
application/zip 653.74 KB
9/2/2021
653.74 KB
SMART Position Sensor Arc SPS-A180D-HAMS CAD Model
application/zip 653.74 KB
9/2/2021
653.74 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Partners Providing Technical Safety and Productivity Solutions
application/pdf 8.05 MB
10/4/2021
8.05 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Sales Focus
application/vnd.ms-powerpoint 933 KB
9/9/2021
933 KB
SMART Position Sensors
application/postscript 356.61 KB
9/2/2021
356.61 KB
Industrial Product Line Card --
application/pdf 2.24 MB
10/25/2022
2.24 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Industrial Warehouse Solutions
application/pdf 2.85 MB
9/23/2022
2.85 MB
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Sensors and Switches in Mobile Cranes
application/pdf 1.98 MB
9/2/2021
1.98 MB
Sensors and Switches in Valves and Flowmeters
application/pdf 1.78 MB
9/23/2022
1.78 MB
SMART Position Sensors, 100Ł and 180Ł Arc Configurations
application/pdf 1.1 MB
9/9/2021
1.1 MB
Value Added SMART Position Sensors, Arc Configuration, for Boom/Sprayer Arm Angle Position Sensing
application/pdf 1.44 MB
9/2/2021
1.44 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

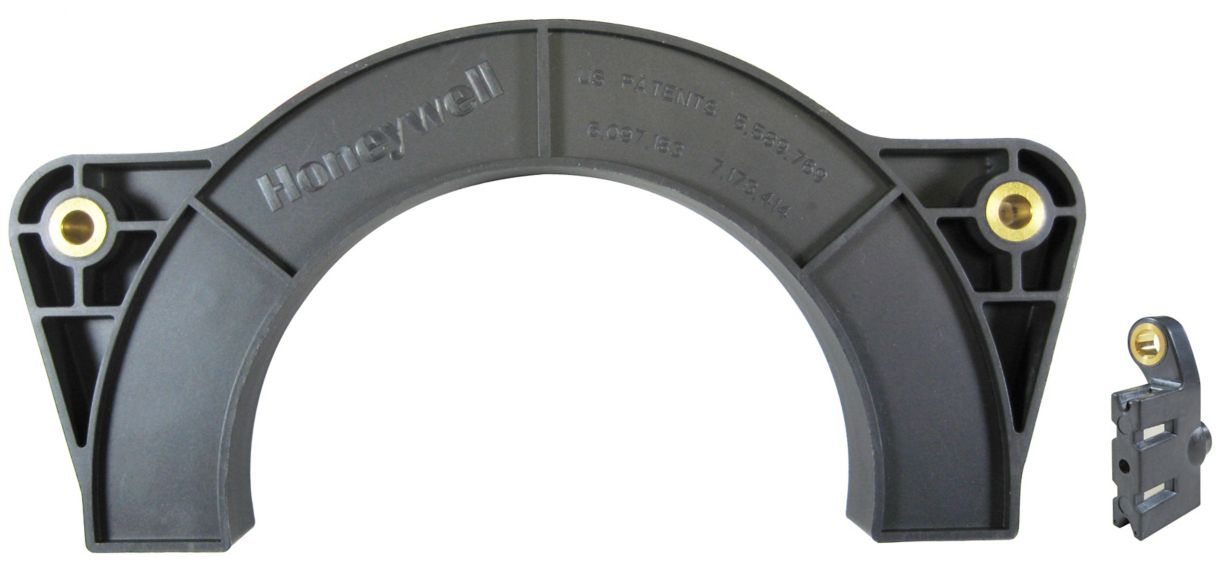

SPS Series 180 degree arc high res photo.jpg
image/jpeg 358.28 KB
9/2/2021
358.28 KB

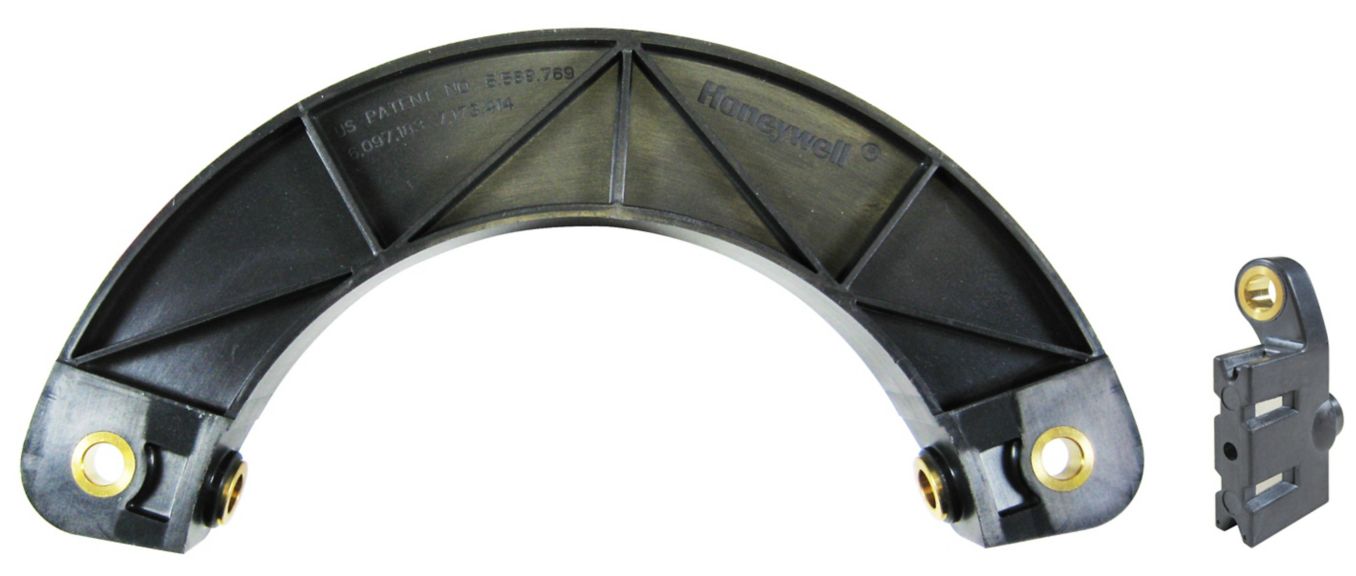

SPS Series 100 degree arc highres photo.jpg
image/jpeg 320 KB
9/2/2021
320 KB
SPS-A100D-HAWS high res photo.jpg
image/jpeg 207.93 KB
9/2/2021
207.93 KB
Arc Product Photo
application/zip 1.05 MB
9/2/2021
1.05 MB
SPS-A100X-LAAS0401 high res photo.jpg
image/jpeg 214.26 KB
9/2/2021
214.26 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Download SPS A100D HAMS CAD Rendering
653.74 KB
9/2/2021
653.74 KB
Sales Focus
933 KB
9/9/2021
933 KB
SPS Series 180 degree arc high res photo.jpg
358.28 KB
9/2/2021
358.28 KB
SMART Position Sensors
356.61 KB
9/2/2021
356.61 KB
SMART Position Sensor, 100� and 180� Arc Configurations --
1.02 MB
10/25/2022
1.02 MB
SPS Series 100 degree arc highres photo.jpg
320 KB
9/2/2021
320 KB
Partners Providing Technical Safety and Productivity Solutions
8.05 MB
10/4/2021
8.05 MB
Industrial Warehouse Solutions
2.85 MB
9/23/2022
2.85 MB
SPS-A100D-HAWS high res photo.jpg
207.93 KB
9/2/2021
207.93 KB
50061061: SMART Position Sensor, 100� and 180� Arc Configurations (English, German, Chinese) --
1.13 MB
10/25/2022
1.13 MB
Defence Ground Vehicles -
872.87 KB
10/25/2022
872.87 KB
SMART Position Sensor Arc SPS-A180D-HAMS CAD Model
653.74 KB
9/2/2021
653.74 KB
Transportation Range Guide
18.57 MB
10/4/2021
18.57 MB
Sensors and Switches in Mobile Cranes
1.98 MB
9/2/2021
1.98 MB
Arc Product Photo
1.05 MB
9/2/2021
1.05 MB
Sensors and Switches in Valves and Flowmeters
1.78 MB
9/23/2022
1.78 MB
SMART Position Sensors, 100Ł and 180Ł Arc Configurations
1.1 MB
9/9/2021
1.1 MB
SPS-A100X-LAAS0401 high res photo.jpg
214.26 KB
9/2/2021
214.26 KB
Position Sensors Product Range Guide
4.85 MB
10/4/2021
4.85 MB
Value Added SMART Position Sensors, Arc Configuration, for Boom/Sprayer Arm Angle Position Sensing
1.44 MB
9/2/2021
1.44 MB
Industrial Product Line Card --
2.24 MB
10/25/2022
2.24 MB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SMART Position Sensor, 100� and 180� Arc Configurations --
1.02 MB
10/25/2022
Transportation Range Guide
18.57 MB
10/4/2021
Position Sensors Product Range Guide
4.85 MB
10/4/2021
50061061: SMART Position Sensor, 100� and 180� Arc Configurations (English, German, Chinese) --
1.13 MB
10/25/2022
Download SPS A100D HAMS CAD Rendering
653.74 KB
9/2/2021
SMART Position Sensor Arc SPS-A180D-HAMS CAD Model
653.74 KB
9/2/2021
Partners Providing Technical Safety and Productivity Solutions
8.05 MB
10/4/2021
Sales Focus
933 KB
9/9/2021
SMART Position Sensors
356.61 KB
9/2/2021
Industrial Product Line Card --
2.24 MB
10/25/2022
Industrial Warehouse Solutions
2.85 MB
9/23/2022
Defence Ground Vehicles -
872.87 KB
10/25/2022
Sensors and Switches in Mobile Cranes
1.98 MB
9/2/2021
Sensors and Switches in Valves and Flowmeters
1.78 MB
9/23/2022
SMART Position Sensors, 100Ł and 180Ł Arc Configurations
1.1 MB
9/9/2021
Value Added SMART Position Sensors, Arc Configuration, for Boom/Sprayer Arm Angle Position Sensing
1.44 MB
9/2/2021
SPS Series 180 degree arc high res photo.jpg
358.28 KB
9/2/2021
SPS Series 100 degree arc highres photo.jpg
320 KB
9/2/2021
SPS-A100D-HAWS high res photo.jpg
207.93 KB
9/2/2021
Arc Product Photo
1.05 MB
9/2/2021
SPS-A100X-LAAS0401 high res photo.jpg
214.26 KB
9/2/2021
SKU
Description
alt
SPS-A100D-HAMS
SMART Position Sensor, SPS Series, 100° arc configuration, 0° to 100° sensing range, 6 Vdc to 24 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc analog output, magnet actuator included
alt

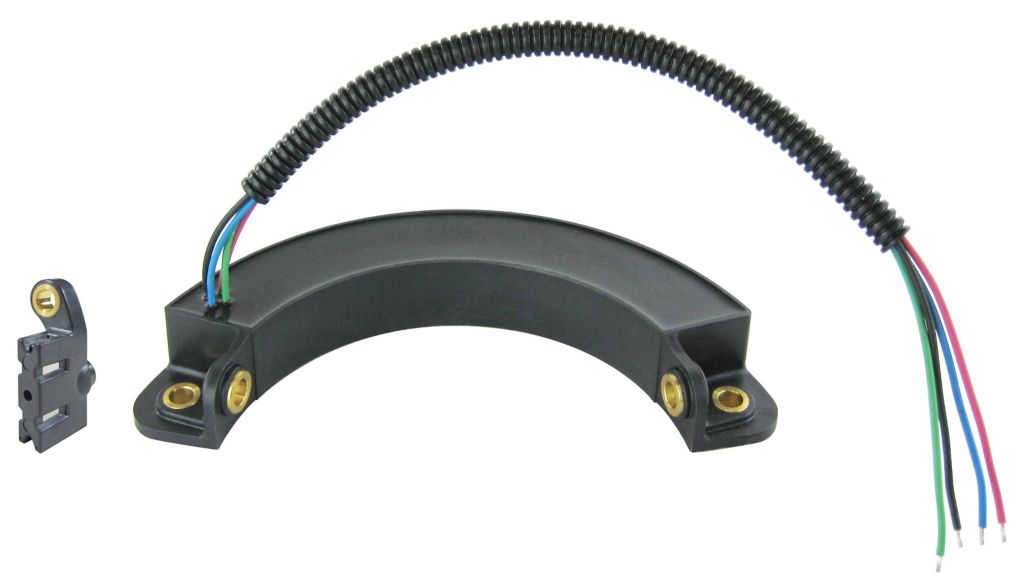

SPS-A100D-HAWS
SMART Position Sensor, SPS Series, 100° arc configuration, 0° to 100° sensing range, 6 Vdc to 24 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc analog output, 18 AWG flying leads, magnet actuator included
alt
SPS-A100D-VAMS
SMART Position Sensor, SPS Series, 100° arc configuration, 0° to 100° sensing range, 18 Vdc to 40 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc, magnet actuator included
alt

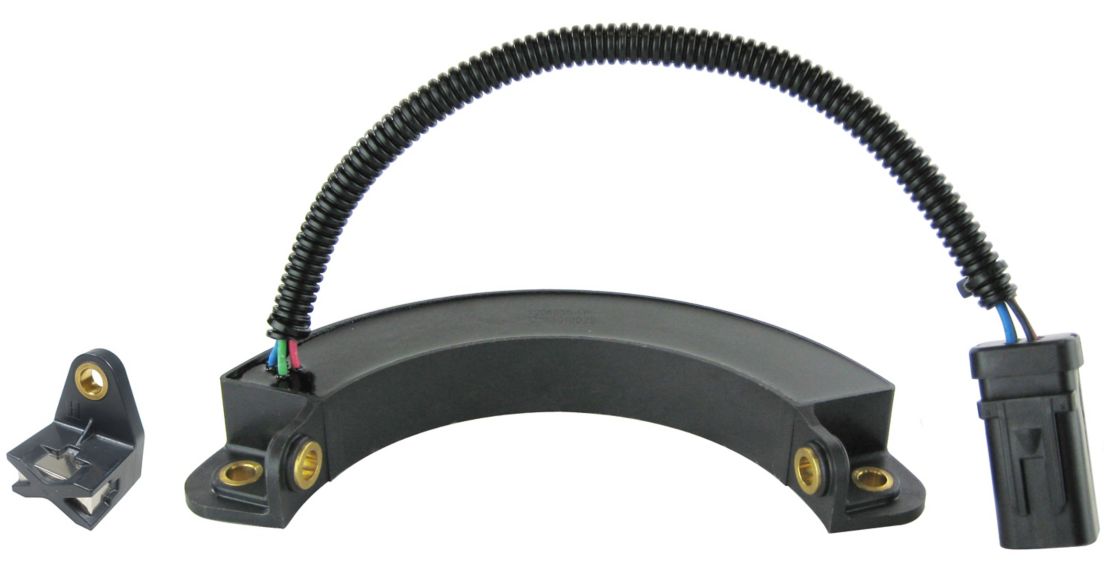

SPS-A100X-LAAS0401
SMART Position Sensor, SPS Series, 100° arc configuration, 0° to 100° outside sensing range, 5 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc analog output, Ampseal 16 connector (p/n 776536), magnet actuator included
alt
SPS-A180D-HAMS
SMART Position Sensor, SPS Series, 180° arc configuration, 0° to 180° sensing range, 6 Vdc to 24 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc, magnet actuator included
alt
SPS-A180D-VAMS
SMART Position Sensor, SPS Series, 180° arc configuration, 0° to 180° sensing range, 18 Vdc to 40 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc, magnet actuator included
SKU
Description
alt
SPS-A100D-HAMS
SMART Position Sensor, SPS Series, 100° arc configuration, 0° to 100° sensing range, 6 Vdc to 24 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc analog output, magnet actuator included
alt
SPS-A100D-HAWS
SMART Position Sensor, SPS Series, 100° arc configuration, 0° to 100° sensing range, 6 Vdc to 24 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc analog output, 18 AWG flying leads, magnet actuator included
alt
SPS-A100D-VAMS
SMART Position Sensor, SPS Series, 100° arc configuration, 0° to 100° sensing range, 18 Vdc to 40 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc, magnet actuator included
alt
SPS-A100X-LAAS0401
SMART Position Sensor, SPS Series, 100° arc configuration, 0° to 100° outside sensing range, 5 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc analog output, Ampseal 16 connector (p/n 776536), magnet actuator included
alt
SPS-A180D-HAMS
SMART Position Sensor, SPS Series, 180° arc configuration, 0° to 180° sensing range, 6 Vdc to 24 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc, magnet actuator included
alt
SPS-A180D-VAMS
SMART Position Sensor, SPS Series, 180° arc configuration, 0° to 180° sensing range, 18 Vdc to 40 Vdc supply voltage, 0.5 Vdc to 4.5 Vdc, magnet actuator included
