Magnetic Position Sensors

RTY Series

Provides non-contact sensing in harsh transportation and industrial applications at a competitive cost.

The RTY Series Hall-effect Rotary Position Sensors provide non-contact sensing in harsh transportation and industrial applications at a competitive cost.

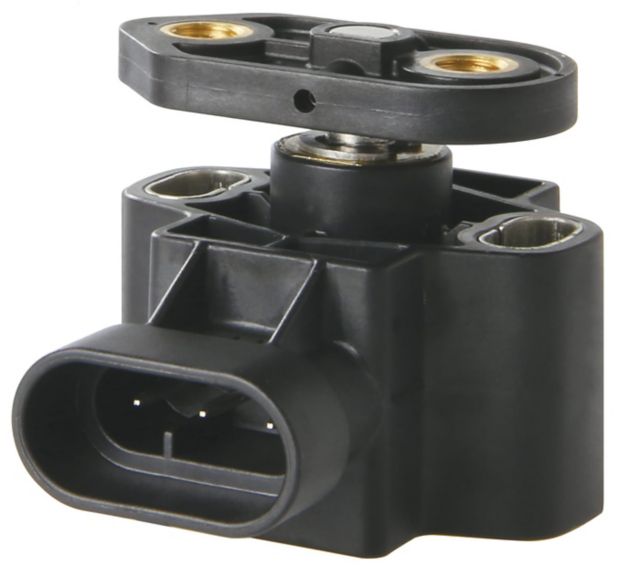

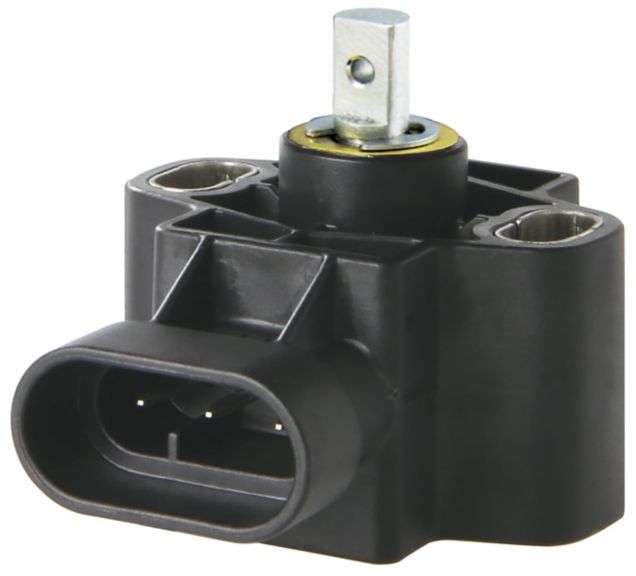

These shaft activated products are available in two versions: an integral shaft with or without a lever. The lever may allow customers to reduce the number of mechanical linkages required for their applications, which may reduce the cost of the overall customer solution.

These products use a magnetically biased, Hall-effect integrated circuit (IC) to sense rotary movement of the actuator over a set operating range. Rotation of the actuator changes the magnet’s position relative to the IC. The resulting flux density change is converted to a linear output.

The IC, together with conditioning and protection circuitry, is sealed in an IP69K-qualified rugged package for durability in most harsh environments.

Eight operating ranges from 50° to 360° are tolerant to over-travel and allow use in most common applications. Low voltage and high voltage versions cover an input voltage range of 4.5 Vdc to 30 Vdc.

Honeywell’s industry-leading capabilities in research and development provide the customer with known quality and support.

Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
RTY Series and RTP Series Hall-effect Rotary Position Sensors
application/pdf 2.01 MB
1/19/2022
2.01 MB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Transportation Range Guide
application/pdf 18.57 MB
10/4/2021
18.57 MB
Position Sensors Product Range Guide
application/pdf 4.85 MB
10/4/2021
4.85 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
50069443: RTY Series Hall-Effect Rotary Position Sensors Installation Instructions
application/pdf 609.22 KB
1/19/2022
609.22 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Partners Providing Technical Safety and Productivity Solutions
application/pdf 8.05 MB
10/4/2021
8.05 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Sensors and Switches in Mobile Cranes
application/pdf 1.98 MB
9/2/2021
1.98 MB
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Pedal Position Sensing in Heavy-Duty Vehicles
application/pdf 1.21 MB
9/2/2021
1.21 MB
RTY Series and RTP Series Hall-effect Rotary Position Sensors
application/pdf 183.23 KB
9/2/2021
183.23 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
RTY Series without lever highres photo.jpg
image/jpeg 51.6 KB
9/2/2021
51.6 KB
RTY Series Product Photo
application/zip 152.71 KB
9/2/2021
152.71 KB
RTY Series with lever lowres photo.jpg
image/jpeg 18.18 KB
9/2/2021
18.18 KB
RTY Series without lever lowres photo.jpg
image/jpeg 10.46 KB
9/2/2021
10.46 KB
RTY Series with lever highres photo.jpg
image/jpeg 76.06 KB
9/2/2021
76.06 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
RTY Series without lever highres photo.jpg
51.6 KB
9/2/2021
51.6 KB
Transportation Range Guide
18.57 MB
10/4/2021
18.57 MB
Partners Providing Technical Safety and Productivity Solutions
8.05 MB
10/4/2021
8.05 MB
RTY Series Product Photo
152.71 KB
9/2/2021
152.71 KB
Position Sensors Product Range Guide
4.85 MB
10/4/2021
4.85 MB
RTY Series with lever lowres photo.jpg
18.18 KB
9/2/2021
18.18 KB
RTY Series without lever lowres photo.jpg
10.46 KB
9/2/2021
10.46 KB
Sensors and Switches in Mobile Cranes
1.98 MB
9/2/2021
1.98 MB
Defence Ground Vehicles -
872.87 KB
10/25/2022
872.87 KB
Pedal Position Sensing in Heavy-Duty Vehicles
1.21 MB
9/2/2021
1.21 MB
RTY Series with lever highres photo.jpg
76.06 KB
9/2/2021
76.06 KB
RTY Series and RTP Series Hall-effect Rotary Position Sensors
2.01 MB
1/19/2022
2.01 MB
RTY Series and RTP Series Hall-effect Rotary Position Sensors
183.23 KB
9/2/2021
183.23 KB
50069443: RTY Series Hall-Effect Rotary Position Sensors Installation Instructions
609.22 KB
1/19/2022
609.22 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
RTY Series and RTP Series Hall-effect Rotary Position Sensors
2.01 MB
1/19/2022
Transportation Range Guide
18.57 MB
10/4/2021
Position Sensors Product Range Guide
4.85 MB
10/4/2021
50069443: RTY Series Hall-Effect Rotary Position Sensors Installation Instructions
609.22 KB
1/19/2022
Partners Providing Technical Safety and Productivity Solutions
8.05 MB
10/4/2021
Sensors and Switches in Mobile Cranes
1.98 MB
9/2/2021
Defence Ground Vehicles -
872.87 KB
10/25/2022
Pedal Position Sensing in Heavy-Duty Vehicles
1.21 MB
9/2/2021
RTY Series and RTP Series Hall-effect Rotary Position Sensors
183.23 KB
9/2/2021
RTY Series without lever highres photo.jpg
51.6 KB
9/2/2021
RTY Series Product Photo
152.71 KB
9/2/2021
RTY Series with lever lowres photo.jpg
18.18 KB
9/2/2021
RTY Series without lever lowres photo.jpg
10.46 KB
9/2/2021
RTY Series with lever highres photo.jpg
76.06 KB
9/2/2021
SKU
Description
alt
RTY050HVNAX
RTY Series with integral actuator, 50° (±25°) operating range, 10 Vdc to 30 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric output, shaft without lever
alt
RTY050LVEAX
RTY Series with integral actuator, 50° (±25°) operating range, 5 Vdc supply voltage, European pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
alt
RTY050LVNAX
RTY Series with integral actuator, 50° (±25°) operating range, 5 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
alt
RTY060HVEAX
RTY Series with integral actuator, 60° (±30°) operating range, 10 Vdc to 30 Vdc supply voltage, European pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric output, shaft without lever
alt
RTY060HVNAX
RTY Series with integral actuator, 60° (±30°) operating range, 10 Vdc to 30 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric output, shaft without lever
alt
RTY060LVEAX
RTY Series with integral actuator, 60° (±30°) operating range, 5 Vdc supply voltage, European pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
alt
RTY060LVNAX
RTY Series with integral actuator, 60° (±30°) operating range, 5 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
alt
RTY070HVNAX
RTY Series with integral actuator, 70° (±35°) operating range, 10 Vdc to 30 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric output, shaft without lever
alt
RTY070LVEAX
RTY Series with integral actuator, 70° (±35°) operating range, 5 Vdc supply voltage, European pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
alt
RTY070LVNAX
RTY Series with integral actuator, 70° (±35°) operating range, 5 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
SKU
Description
alt
RTY050HVNAX
RTY Series with integral actuator, 50° (±25°) operating range, 10 Vdc to 30 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric output, shaft without lever
alt
RTY050LVEAX
RTY Series with integral actuator, 50° (±25°) operating range, 5 Vdc supply voltage, European pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
alt
RTY050LVNAX
RTY Series with integral actuator, 50° (±25°) operating range, 5 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
alt
RTY060HVEAX
RTY Series with integral actuator, 60° (±30°) operating range, 10 Vdc to 30 Vdc supply voltage, European pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric output, shaft without lever
alt
RTY060HVNAX
RTY Series with integral actuator, 60° (±30°) operating range, 10 Vdc to 30 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric output, shaft without lever
alt
RTY060LVEAX
RTY Series with integral actuator, 60° (±30°) operating range, 5 Vdc supply voltage, European pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
alt
RTY060LVNAX
RTY Series with integral actuator, 60° (±30°) operating range, 5 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
alt
RTY070HVNAX
RTY Series with integral actuator, 70° (±35°) operating range, 10 Vdc to 30 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) non-ratiometric output, shaft without lever
alt
RTY070LVEAX
RTY Series with integral actuator, 70° (±35°) operating range, 5 Vdc supply voltage, European pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
alt
RTY070LVNAX
RTY Series with integral actuator, 70° (±35°) operating range, 5 Vdc supply voltage, North American pinout style; standard: 0.5 Vdc (left), 4.5 Vdc (right) ratiometric output, shaft without lever
