Hall-effect Digital Speed Sensors

SNDH-H Series

Rugged, stainless steel or plastic housing. Multiple probe lengths, connector options. Digital output. Zero speed

The SNDH-H Series Hall-effect Speed Sensors use a magnetically biased Hall-effect integrated circuit to accurately sense movement of ferrous metal targets. The specially designed IC (integrated circuit) and a permanent magnet are sealed in rugged, probe-type packages.The flux density of the permanent magnet alters when approached by ferrous metal.

This is detected by the Hall ICs. If the sensor is positioned at the circumference of a revolving gear wheel, for example, it detects the teeth and spaces, supplying a digital pulse output with frequency proportional to gear wheel speed. Optimum performance is dependent upon variables that must be considered in combination: target material, geometry and speed, sensor/target gap, and environmental temperature.

Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SNDH-H Series Hall-Effect Speed Sensors Datasheet
application/pdf 305.57 KB
6/15/2022
305.57 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Speed Sensor Comparison
application/pdf 481.16 KB
11/17/2022
481.16 KB
Speed Sensors Range Guide
application/pdf 781.75 KB
9/2/2021
781.75 KB
Transportation Range Guide
application/pdf 18.57 MB
10/4/2021
18.57 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SNDH-H Series Speed Sensors
application/pdf 142.36 KB
6/15/2022
142.36 KB
Modelo CAD
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SNDH-H3P-G01 CAD Model.zip
application/zip 191.99 KB
9/2/2021
191.99 KB
SNDH-H Series CAD Models - grouped
application/zip 191.97 KB
9/2/2021
191.97 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Partners Providing Technical Safety and Productivity Solutions
application/pdf 8.05 MB
10/4/2021
8.05 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Construction Vehicles -
application/pdf 984.29 KB
10/25/2022
984.29 KB
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Sensors and Switches in Front Loaders
application/pdf 2.54 MB
9/2/2021
2.54 MB
Sensors and Switches in Mobile Cranes
application/pdf 1.98 MB
9/2/2021
1.98 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SNDH-H3P-G01 lowres photo
image/jpeg 48.7 KB
9/2/2021
48.7 KB
SNDH-H3P-G01 highres photo
image/jpeg 698.32 KB
9/2/2021
698.32 KB
SNDH-H3L-G01 lowres photo
image/jpeg 15.67 KB
9/2/2021
15.67 KB
SNDH-H3C-G04 highres photo
image/jpeg 226.35 KB
9/2/2021
226.35 KB
SNDH-H3L-G01 highres photo
image/jpeg 125.25 KB
9/2/2021
125.25 KB
SNDH-H Series Product Photo
application/zip 1.1 MB
9/2/2021
1.1 MB
SNDH-H3C-G04 lowres photo
image/jpeg 32.19 KB
9/2/2021
32.19 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Agricultural Vehicles -
1.11 MB
10/25/2022
1.11 MB
SNDH-H3P-G01 lowres photo
48.7 KB
9/2/2021
48.7 KB
SNDH-H Series Hall-Effect Speed Sensors Datasheet
305.57 KB
6/15/2022
305.57 KB
Construction Vehicles -
984.29 KB
10/25/2022
984.29 KB
SNDH-H3P-G01 highres photo
698.32 KB
9/2/2021
698.32 KB
SNDH-H3L-G01 lowres photo
15.67 KB
9/2/2021
15.67 KB
Defence Ground Vehicles -
872.87 KB
10/25/2022
872.87 KB
SNDH-H3C-G04 highres photo
226.35 KB
9/2/2021
226.35 KB
Speed Sensor Comparison
481.16 KB
11/17/2022
481.16 KB
SNDH-H3L-G01 highres photo
125.25 KB
9/2/2021
125.25 KB
Sensors and Switches in Front Loaders
2.54 MB
9/2/2021
2.54 MB
Sensors and Switches in Mobile Cranes
1.98 MB
9/2/2021
1.98 MB
Partners Providing Technical Safety and Productivity Solutions
8.05 MB
10/4/2021
8.05 MB
SNDH-H Series Product Photo
1.1 MB
9/2/2021
1.1 MB
SNDH-H Series Speed Sensors
142.36 KB
6/15/2022
142.36 KB
SNDH-H3P-G01 CAD Model.zip
191.99 KB
9/2/2021
191.99 KB
SNDH-H Series CAD Models - grouped
191.97 KB
9/2/2021
191.97 KB
Speed Sensors Range Guide
781.75 KB
9/2/2021
781.75 KB
Transportation Range Guide
18.57 MB
10/4/2021
18.57 MB
SNDH-H3C-G04 lowres photo
32.19 KB
9/2/2021
32.19 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SNDH-H Series Hall-Effect Speed Sensors Datasheet
305.57 KB
6/15/2022
Speed Sensor Comparison
481.16 KB
11/17/2022
Speed Sensors Range Guide
781.75 KB
9/2/2021
Transportation Range Guide
18.57 MB
10/4/2021
SNDH-H Series Speed Sensors
142.36 KB
6/15/2022
SNDH-H3P-G01 CAD Model.zip
191.99 KB
9/2/2021
SNDH-H Series CAD Models - grouped
191.97 KB
9/2/2021
Partners Providing Technical Safety and Productivity Solutions
8.05 MB
10/4/2021
Agricultural Vehicles -
1.11 MB
10/25/2022
Construction Vehicles -
984.29 KB
10/25/2022
Defence Ground Vehicles -
872.87 KB
10/25/2022
Sensors and Switches in Front Loaders
2.54 MB
9/2/2021
Sensors and Switches in Mobile Cranes
1.98 MB
9/2/2021
SNDH-H3P-G01 lowres photo
48.7 KB
9/2/2021
SNDH-H3P-G01 highres photo
698.32 KB
9/2/2021
SNDH-H3L-G01 lowres photo
15.67 KB
9/2/2021
SNDH-H3C-G04 highres photo
226.35 KB
9/2/2021
SNDH-H3L-G01 highres photo
125.25 KB
9/2/2021
SNDH-H Series Product Photo
1.1 MB
9/2/2021
SNDH-H3C-G04 lowres photo
32.19 KB
9/2/2021
SKU
Description
alt
SNDH-H3C-G04

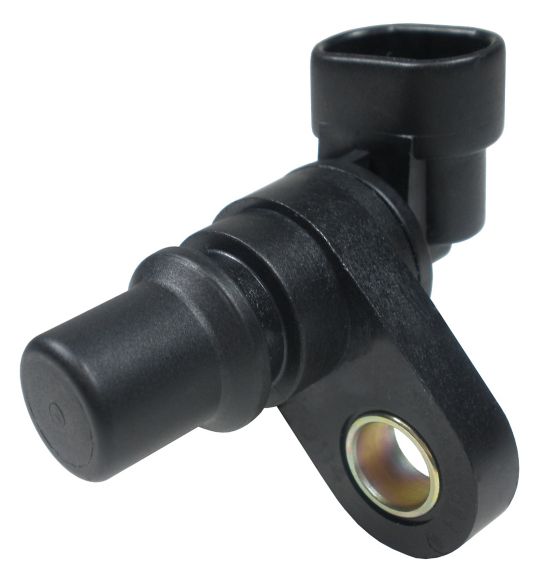

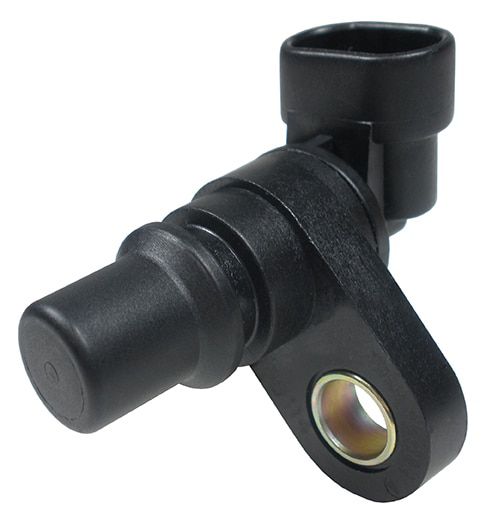

SNDH-H Series, Hall-effect speed sensor, zero speed, plastic housing, 27,5 mm housing length, Delphi-Packard Metripak 150.2 Type 101 connector
alt
SNDH-H3L-G01

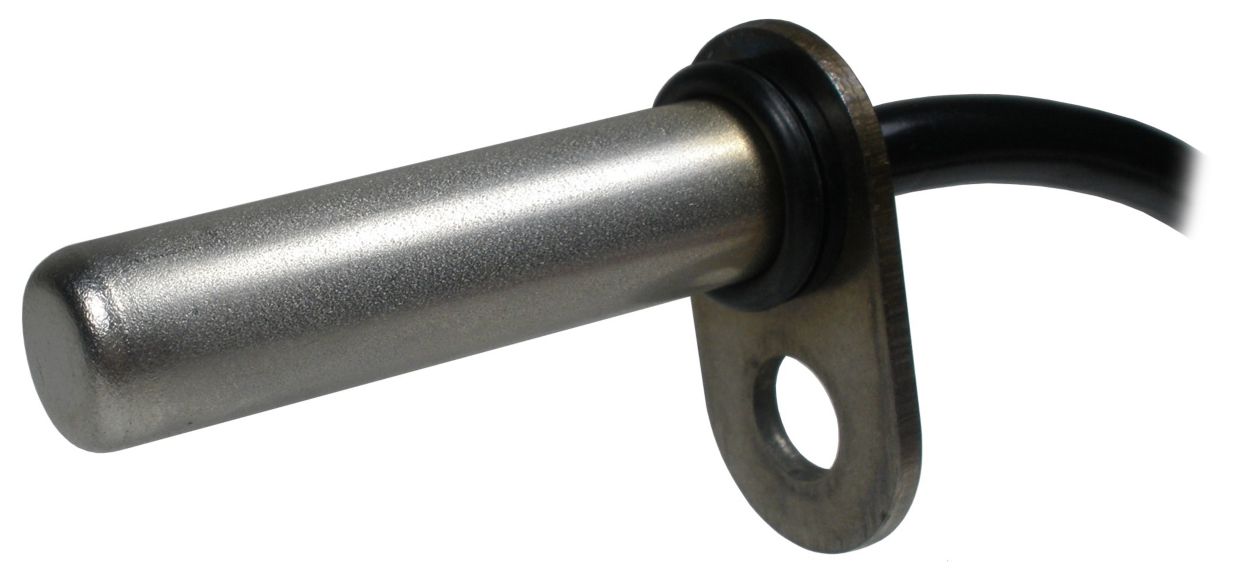

SNDH-H Series, Hall-effect speed sensor, zero speed, omnidirectional, stainless steel housing, 40 mm housing length, cable
alt
SNDH-H3P-G01

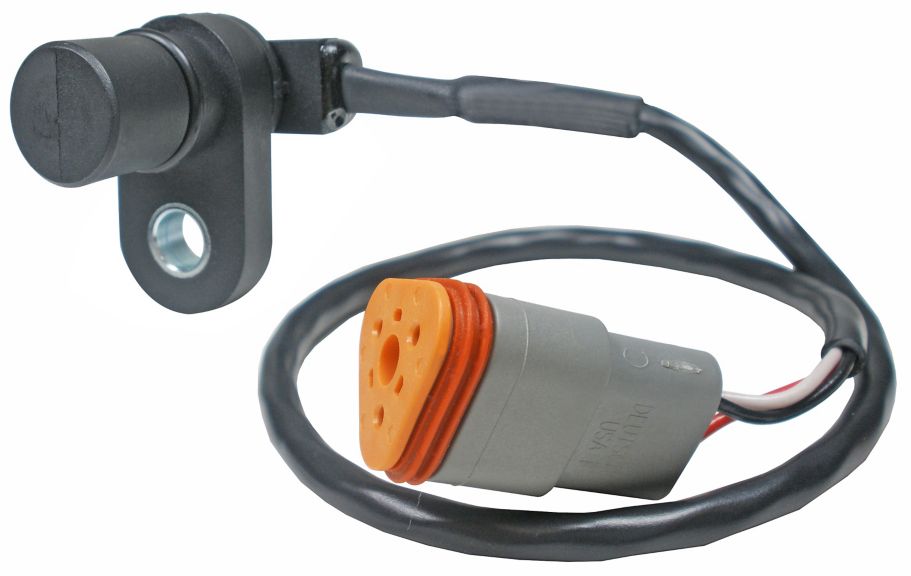

SNDH-H Series, Hall-effect speed sensor, zero speed, plastic housing, 20,3 mm housing length, Deutsch DT06-3S connector
