Hall-effect Digital Speed Sensors

SNG-S Series

Cost competitive and flexible, temperature range: -40ºC to 140ºC, IP69K rating

Honeywell´s SNG-S Series Speed Sensors use a magnetically biased Hall-effect integrated circuit (IC) to accurately sense movement of ferrous metal targets. The specially designed IC and a permanent magnet are sealed in rugged, probe-type packages.
The IC detects the alteration of the magnet´s flux density when it is approached by ferrous metal. A sensor positioned at the circumference of a revolving gear wheel detects the teeth and spaces, and supplies a digital pulse output with frequency proportional to gear wheel speed.
Optimum performance is dependent upon a combination of variables such as target material, geometry and speed, sensor/target gap, and environmental temperature.

VALUE TO CUSTOMERS
  • Higher reliability: IP69K rating, EMC radiated immunity protection, O-ring seal and wide operating temperature range:
    • Improves equipment uptime
    • Minimizes service costs
    • Provides resistance to high electrical noise
    • Provides resistance to moisture intrusion
    • Wide operating temperature range
  • Cost-competitive: Designed and manufactured using a platform-based approach that enables better cost competitiveness and mechanical and electrical configurability for customers.
  • Flexible: Wide operating temperature range, robust electrical noise immunity and enhanced environmental sealing capability allow flexibility of use in the application.
  • Expedites installation: O-ring seal for use in pressure applications and a fixed mounting flange allows for a simpler installation process, using one fastener.
FEATURES
  • Wide operating temperature range: -40°C to 140°C [-40°F to 284°F]
  • Insensitive to orientation (angular rotation) during assembly
  • Environmental sealing: Moisture ingress protection rated to IP69K
  • Robust electrical noise immunity: Electrical noise radiated immunity (EMC) rated to 100 V/m
  • Zero speed detection, high frequency switching capability: 0 kHz to 15 kHz
  • O-ring seal: Enables environmental sealing to mounting surface
  • Supply voltage range: varies from 4.5 V to 24 V or 4.5 V to 8 V to 24 V
  • CE certified
POTENTIAL TRANSPORTATION APPLICATIONS
  • Transmission speed sensing in heavy duty trucks, buses, agriculture and construction machines
  • Wheel speed detection in material handling, agriculture, and construction machines
  • Motor speed sensing in vehicle powertrain and hybrid engines in heavy duty trucks, buses, agriculture and construction machines

Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SNG-S Series Speed Sensors Datasheet --
application/pdf 906.97 KB
10/25/2022
906.97 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Speed Sensors Range Guide
application/pdf 781.75 KB
9/2/2021
781.75 KB
Speed Sensor Comparison
application/pdf 481.16 KB
11/17/2022
481.16 KB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Installation Instructions for the SNG-S Series Speed Sensors --
application/pdf 640.58 KB
10/25/2022
640.58 KB
Modelo CAD
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SNG-S Series SPRC-003 CAD Model.zip
application/zip 230.21 KB
9/2/2021
230.21 KB
SNG-S Series SPRD-002 CAD Model.zip
application/zip 215.27 KB
9/2/2021
215.27 KB
SNG-S Series SPSC-001 CAD Model.zip
application/zip 137.84 KB
9/2/2021
137.84 KB
SNG-S Series CAD Models - grouped
application/zip 2 MB
9/2/2021
2 MB
SNG-S Series SPRD-003-CAD Model.zip
application/zip 221.87 KB
9/2/2021
221.87 KB
SNG-S Series SPRC-002 CAD Model.zip
application/zip 230.21 KB
9/2/2021
230.21 KB
SNG-S Series SPRD-004 CAD Model.zip
application/zip 221.87 KB
9/2/2021
221.87 KB
SNG-S Series SPRC-001 CAD Model.zip
application/zip 231.55 KB
9/2/2021
231.55 KB
SNG-S Series SPRF-002 CAD Model.zip
application/zip 558.47 KB
9/2/2021
558.47 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Partners Providing Technical Safety and Productivity Solutions
application/pdf 8.05 MB
10/4/2021
8.05 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Construction Vehicles -
application/pdf 984.29 KB
10/25/2022
984.29 KB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SNG-S Series 67 mm right angle lowres photo
image/jpeg 15.5 KB
9/2/2021
15.5 KB
SNG-S Series Product Photo
application/zip 749.96 KB
9/2/2021
749.96 KB
SNG-S Series 46 mm straight lowres photo
image/jpeg 15.93 KB
9/2/2021
15.93 KB

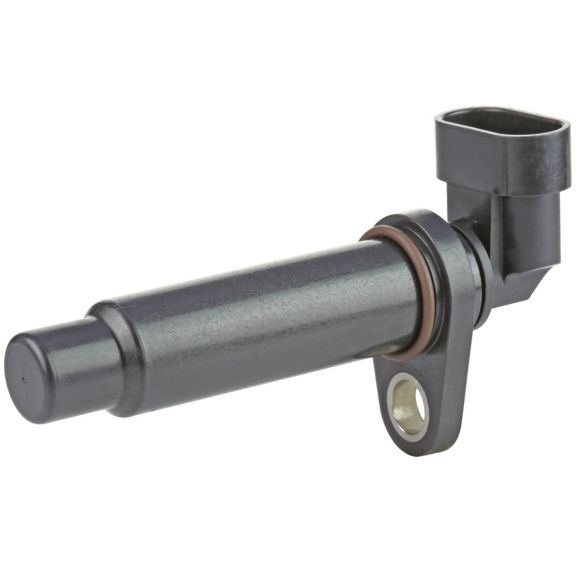

SNG-S Series 67 mm right angle highres photo
image/jpeg 126.99 KB
9/2/2021
126.99 KB

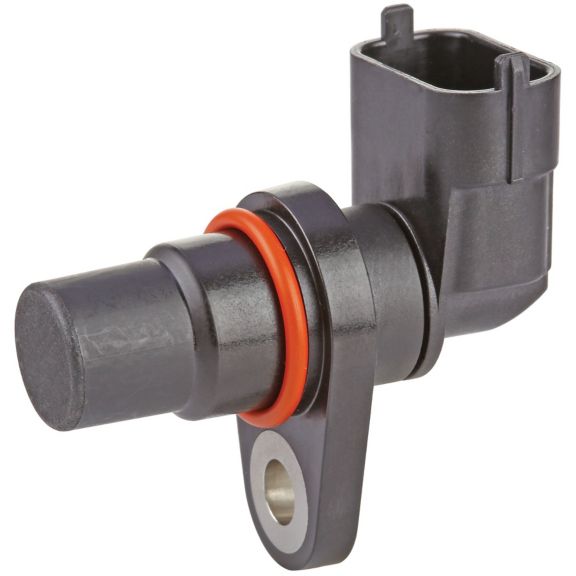

SNG-S Series 24 mm right angle highres photo
image/jpeg 241.52 KB
9/2/2021
241.52 KB
SNG-S Series 46 mm right angle lowres photo
image/jpeg 20.73 KB
9/2/2021
20.73 KB

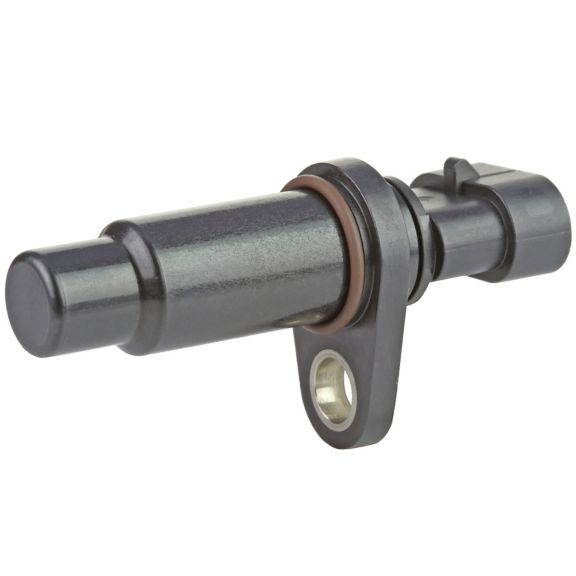

SNG-S Series 46 mm straight highres photo
image/jpeg 152.36 KB
9/2/2021
152.36 KB
SNG-S Series 24 mm right angle lowres photo
image/jpeg 23.76 KB
9/2/2021
23.76 KB

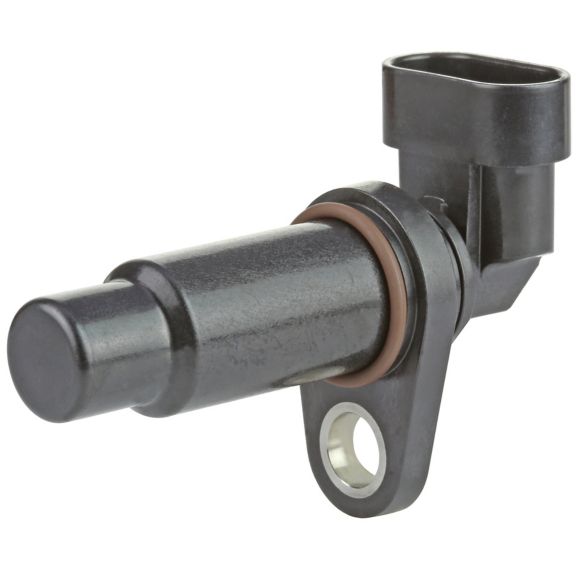

SNG-S Series 46 mm right angle highres photo
