Sealed Switches

XE Series

7 A ac & dc. Variety of auxiliary actuators, operate forces, & terminations. 4,8 mm centers side mount. MIL-PRF-8805 & UL listings

Honeywell SE and XE miniature sealed basic switches are designed for precise and reliable position indication of critical applications on aircraft and military systems. The applications range from military and commercial aircraft and helicopters to military land vehicles (track and wheeled vehicles). These switches are also suitable for other commercial and industrial applications where a degree of environmental sealing is required.

The environmentally sealed SE Series is designed for demanding applications where water and/or particulate contaminant is present along with the potential for a wide range of temperatures. The SE Series incorporates the Honeywell time-proven MICRO SWITCH SM Series electromechanical switches in the SE housing.

The environmentally sealed miniature XE Series is similar to the SE Series except smaller in package size, utilizing the Honeywell MICRO SWITCH SX subminiature electromechanical switch. In addition, select Honeywell XE switches are MIL-PRF-8805 qualified satisfying the requirements where a military qualified or compliant switch is required.

To add to the versatility of the SE and XE family of products, CSA and UL certified products are available where the application is not aerospace or military related.

Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace and Defense Product Range Guide -
application/pdf 16.36 MB
11/17/2022
16.36 MB
MICRO SWITCH Sealed and High Accuracy Switches Line Guide
application/pdf 831.93 KB
9/2/2021
831.93 KB
Basic, Toggle, and Rocker Switches Range Guide -
application/pdf 6.48 MB
10/25/2022
6.48 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
5XE1 lowres photo
image/jpeg 23.81 KB
9/2/2021
23.81 KB
1XE401-T highres photo
image/jpeg 98.41 KB
9/2/2021
98.41 KB
1XE1 highres photo
image/jpeg 61.24 KB
9/2/2021
61.24 KB
AT Series,XE Series Product Photo
application/zip 247.89 KB
9/2/2021
247.89 KB
1XE1 lowres photo
image/jpeg 12.41 KB
9/2/2021
12.41 KB

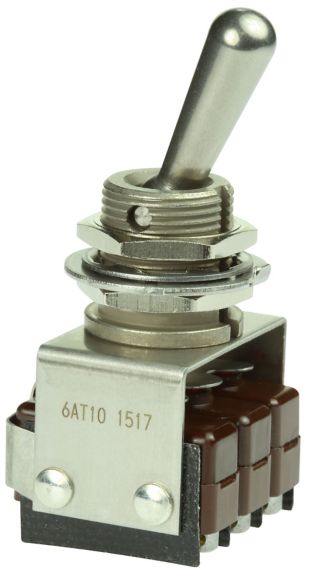

6AT10 highres photo
image/jpeg 256.66 KB
9/2/2021
256.66 KB
1XE203 highres photo
image/jpeg 131.22 KB
9/2/2021
131.22 KB
1XE401-T lowres photo
image/jpeg 17.46 KB
9/2/2021
17.46 KB
5XE1-T highres photo
image/jpeg 84.77 KB
9/2/2021
84.77 KB
1XE202 lowres photo
image/jpeg 15.41 KB
9/2/2021
15.41 KB
1XE203 lowres photo
image/jpeg 16.7 KB
9/2/2021
16.7 KB
1XE202 highres photo
image/jpeg 58.26 KB
9/2/2021
58.26 KB
1XE201 highres photo
image/jpeg 122.99 KB
9/2/2021
122.99 KB
5XE1-T lowres photo
image/jpeg 19.35 KB
9/2/2021
19.35 KB
1XE1-T highres photo
image/jpeg 289.33 KB
9/2/2021
289.33 KB
1XE301 lowres photo
image/jpeg 14.24 KB
9/2/2021
14.24 KB
XE Series Product Photo
application/zip 1.03 MB
9/2/2021
1.03 MB
1XE301 highres photo
image/jpeg 60.38 KB
9/2/2021
60.38 KB
1XE201 lowres photo
image/jpeg 15.56 KB
9/2/2021
15.56 KB
1XE1-T lowres photo
image/jpeg 33.66 KB
9/2/2021
33.66 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
MICRO SWITCH - Sealed Switches Comparison --
application/pdf 488.49 KB
10/25/2022
488.49 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
5XE1 lowres photo
23.81 KB
9/2/2021
23.81 KB
1XE401-T highres photo
98.41 KB
9/2/2021
98.41 KB
1XE1 highres photo
61.24 KB
9/2/2021
61.24 KB
AT Series,XE Series Product Photo
247.89 KB
9/2/2021
247.89 KB
1XE1 lowres photo
12.41 KB
9/2/2021
12.41 KB
6AT10 highres photo
256.66 KB
9/2/2021
256.66 KB
1XE203 highres photo
131.22 KB
9/2/2021
131.22 KB
1XE401-T lowres photo
17.46 KB
9/2/2021
17.46 KB
Aerospace and Defense Product Range Guide -
16.36 MB
11/17/2022
16.36 MB
5XE1-T highres photo
84.77 KB
9/2/2021
84.77 KB
1XE202 lowres photo
15.41 KB
9/2/2021
15.41 KB
MICRO SWITCH Sealed and High Accuracy Switches Line Guide
831.93 KB
9/2/2021
831.93 KB
1XE203 lowres photo
16.7 KB
9/2/2021
16.7 KB
1XE202 highres photo
58.26 KB
9/2/2021
58.26 KB
1XE201 highres photo
122.99 KB
9/2/2021
122.99 KB
5XE1-T lowres photo
19.35 KB
9/2/2021
19.35 KB
1XE1-T highres photo
289.33 KB
9/2/2021
289.33 KB
1XE301 lowres photo
14.24 KB
9/2/2021
14.24 KB
XE Series Product Photo
1.03 MB
9/2/2021
1.03 MB
1XE301 highres photo
60.38 KB
9/2/2021
60.38 KB
Defence Ground Vehicles -
872.87 KB
10/25/2022
872.87 KB
Basic, Toggle, and Rocker Switches Range Guide -
6.48 MB
10/25/2022
6.48 MB
1XE201 lowres photo
15.56 KB
9/2/2021
15.56 KB
1XE1-T lowres photo
33.66 KB
9/2/2021
33.66 KB
MICRO SWITCH - Sealed Switches Comparison --
488.49 KB
10/25/2022
488.49 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace and Defense Product Range Guide -
16.36 MB
11/17/2022
MICRO SWITCH Sealed and High Accuracy Switches Line Guide
831.93 KB
9/2/2021
Basic, Toggle, and Rocker Switches Range Guide -
6.48 MB
10/25/2022
Defence Ground Vehicles -
872.87 KB
10/25/2022
5XE1 lowres photo
23.81 KB
9/2/2021
1XE401-T highres photo
98.41 KB
9/2/2021
1XE1 highres photo
61.24 KB
9/2/2021
AT Series,XE Series Product Photo
247.89 KB
9/2/2021
1XE1 lowres photo
12.41 KB
9/2/2021
6AT10 highres photo
256.66 KB
9/2/2021
1XE203 highres photo
131.22 KB
9/2/2021
1XE401-T lowres photo
17.46 KB
9/2/2021
5XE1-T highres photo
84.77 KB
9/2/2021
1XE202 lowres photo
15.41 KB
9/2/2021
1XE203 lowres photo
16.7 KB
9/2/2021
1XE202 highres photo
58.26 KB
9/2/2021
1XE201 highres photo
122.99 KB
9/2/2021
5XE1-T lowres photo
19.35 KB
9/2/2021
1XE1-T highres photo
289.33 KB
9/2/2021
1XE301 lowres photo
14.24 KB
9/2/2021
XE Series Product Photo
1.03 MB
9/2/2021
1XE301 highres photo
60.38 KB
9/2/2021
1XE201 lowres photo
15.56 KB
9/2/2021
1XE1-T lowres photo
33.66 KB
9/2/2021
MICRO SWITCH - Sealed Switches Comparison --
488.49 KB
10/25/2022
SKU
Description
alt

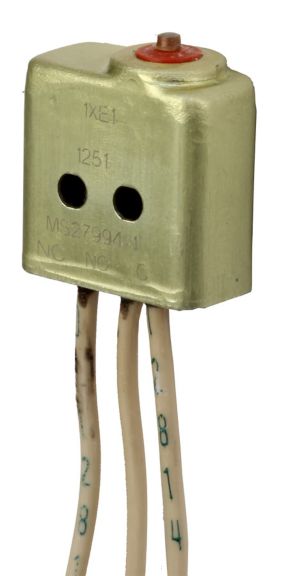

1XE1
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination, Military Part Number MS27994-1
alt

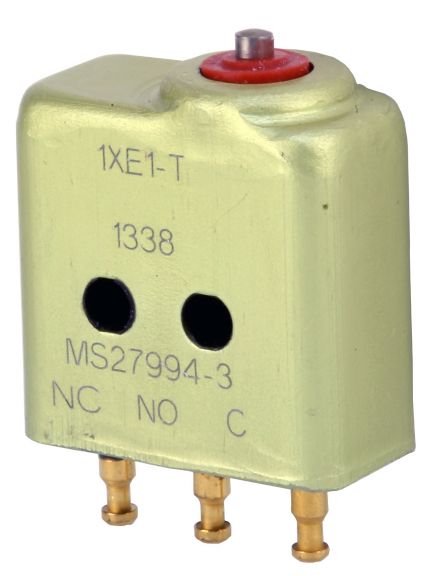

1XE1-T
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Solder Termination, Military Part Number MS27994-3
alt

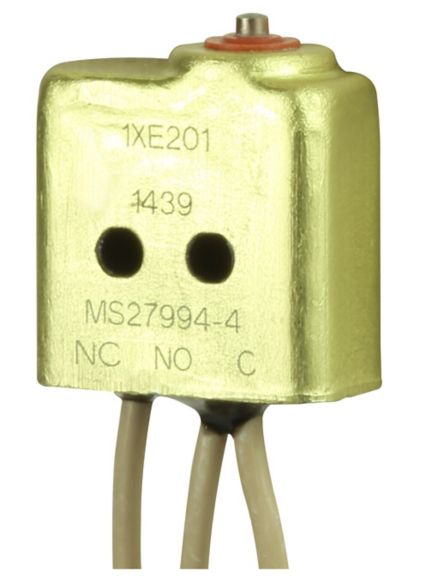

1XE201
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination, Military Part Number MS27994-4
alt

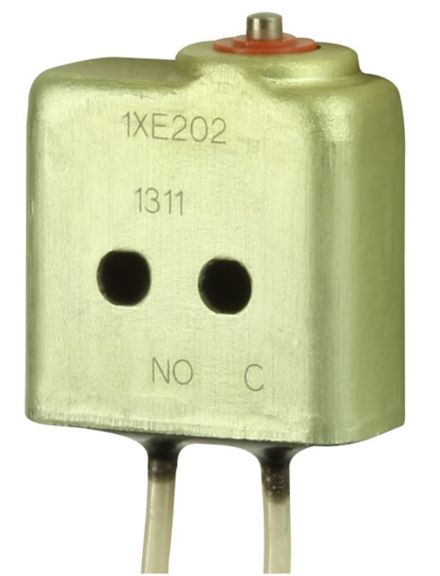

1XE202
XE Series Environmentally Sealed Basic Switch, Single Pole Normally Open Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination, Pin Plunger Actuator
alt

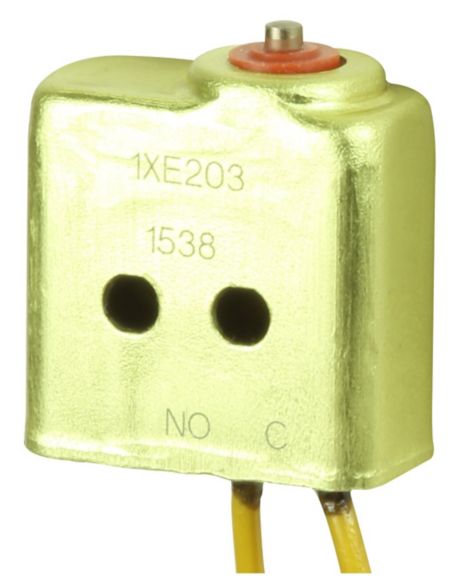

1XE203
XE Series Environmentally Sealed Basic Switch, Single Pole Normally Open Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination
alt

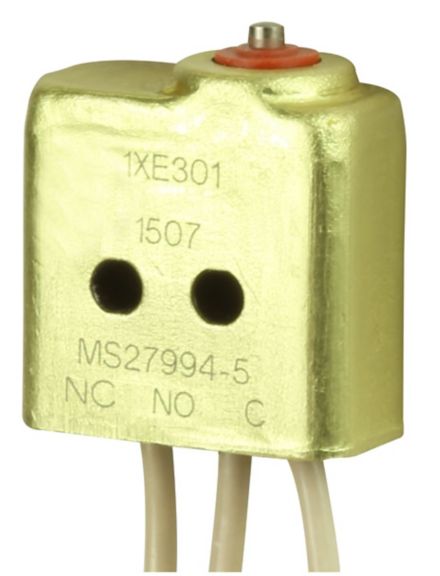

1XE301
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 1 A at 28 Vdc, Pin Plunger Actuator, Leadwire Termination, Military Part Number MS27994-5
alt

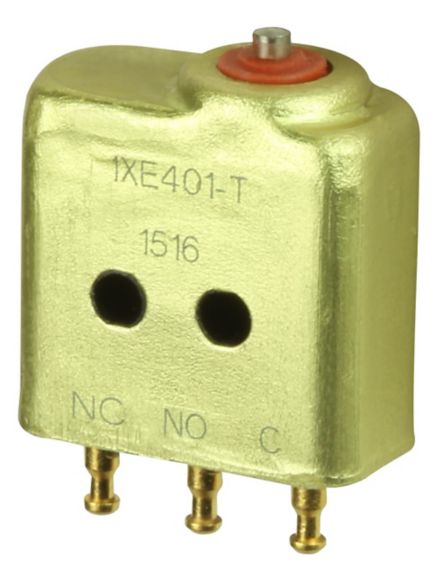

1XE401-T
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 1 A at 28 Vdc, Pin Plunger Actuator, Solder Termination
alt

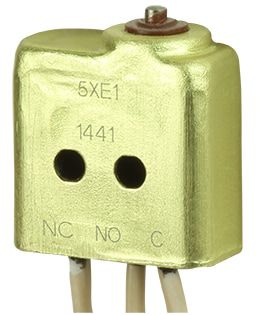

5XE1
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination
alt

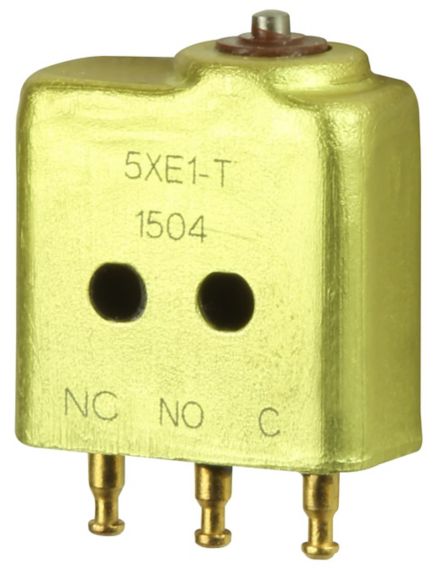

5XE1-T
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 28 Vdc, Pin Plunger Actuator, Solder Termination
SKU
Description
alt
1XE1
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination, Military Part Number MS27994-1
alt
1XE1-T
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Solder Termination, Military Part Number MS27994-3
alt
1XE201
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination, Military Part Number MS27994-4
alt
1XE202
XE Series Environmentally Sealed Basic Switch, Single Pole Normally Open Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination, Pin Plunger Actuator
alt
1XE203
XE Series Environmentally Sealed Basic Switch, Single Pole Normally Open Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination
alt
1XE301
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 1 A at 28 Vdc, Pin Plunger Actuator, Leadwire Termination, Military Part Number MS27994-5
alt
1XE401-T
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 1 A at 28 Vdc, Pin Plunger Actuator, Solder Termination
alt
5XE1
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 115 Vac, Pin Plunger Actuator, Leadwire Termination
alt
5XE1-T
XE Series Environmentally Sealed Basic Switch, Single Pole Double Throw Circuitry, 7 A at 28 Vdc, Pin Plunger Actuator, Solder Termination
