Board Mount Pressure Sensors

TruStability™ DPR Series

Compensated. As low as ±1.25 %FSS TEB. Ultra-low pressure (differential, gage). Analog output

Pressure Ranges
  • ±1.6 mbar to ±25 bar | ±160 Pa to ±2.5 kPa | ±0.5 inH20 to ±10 inH20

The TruStability™ DPR Series is a piezoresistive silicon pressure sensor offering a ratiometric analog output for reading pressure over the specified full scale pressure span and temperature range. These sensors are fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC).

Calibrated output values for pressure are updated at approximately 1 kHz for analog. The DPR Series is calibrated over the temperature range of -20°C to 70°C [-4°F to 185°F]. The sensor is characterized for operation from a single power supply of 5.0 Vdc.

These sensors measure differential or gage pressures. The robust and durable housing, with its industry-standard mounting configuration, along with a choice of flexible electrical terminations, is designed to withstand tough application environments.

The sensors’ internal diagnostic functions detect most internal failures, including burst sensors, and may reduce the need for redundant sensors in the system. The DPR Series is intended for use with non-corrosive, non-ionic gases, such as air and other dry gases.

Custom calibrations, additional pressure ranges or options to extend the performance of these sensors to include non-corrosive, non-ionic liquids is possible. All products are designed and manufactured according to ISO 9001 standards.

Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Airflow sensors contain advanced microstructure technology to provide a sensitive and fast responseto flow, amount/direction of air or other gases. Potential applications include HVAC, gas metering, chromatography, vent hoods, and medical equipment.
application/pdf 2.76 MB
9/2/2021
2.76 MB
Board Mount Pressure Sensors Selection Guide
application/pdf 1.3 MB
11/12/2021
1.3 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
TruStability™ Board Mount Pressure Sensors: DPR Series
application/pdf 2.09 MB
9/2/2021
2.09 MB
Modelo CAD
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
DPR Series electrical termination A CAD model.zip
application/zip 827.44 KB
9/2/2021
827.44 KB
TruStability™ CAD Models - grouped
application/zip 5.4 MB
9/2/2021
5.4 MB
DPR Series electrical termination C CAD model.zip
application/zip 747.61 KB
9/2/2021
747.61 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Making Sense of Sensing
application/pdf 3.37 MB
10/6/2021
3.37 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Energy and Environmental Design Trends
application/pdf 833.47 KB
9/2/2021
833.47 KB
Pressure or Airflow Sensors?
application/pdf 564.63 KB
9/2/2021
564.63 KB
Pressure Sensor Glossary of Terms
application/pdf 137.79 KB
9/2/2021
137.79 KB
Industrial Product Line Card --
application/pdf 2.24 MB
10/25/2022
2.24 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Switches and Sensors Solutions for Industrial Applications
application/pdf 2.48 MB
11/25/2021
2.48 MB
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Solutions For Healthier Air & HVAC Systems
application/pdf 3.88 MB
5/31/2022
3.88 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

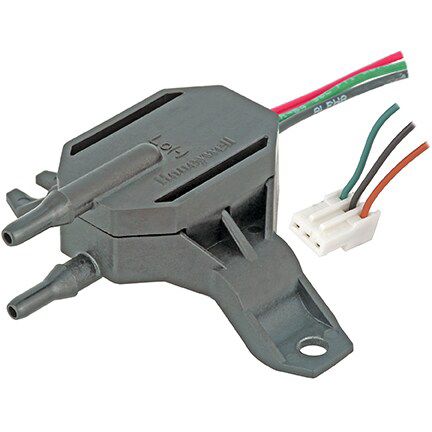

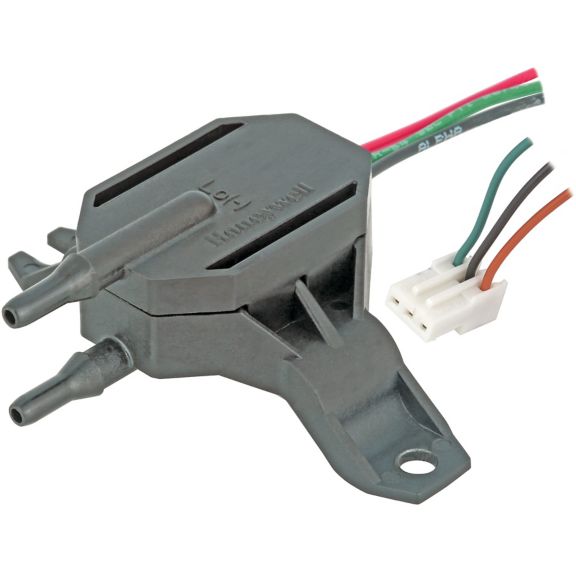

DPR Series electrical termination A highres photo
image/jpeg 184.21 KB
9/2/2021
184.21 KB

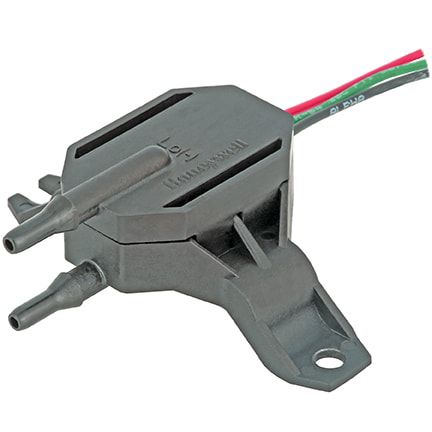

DPR Series electrical termination C lowres photo
image/jpeg 19.58 KB
9/2/2021
19.58 KB

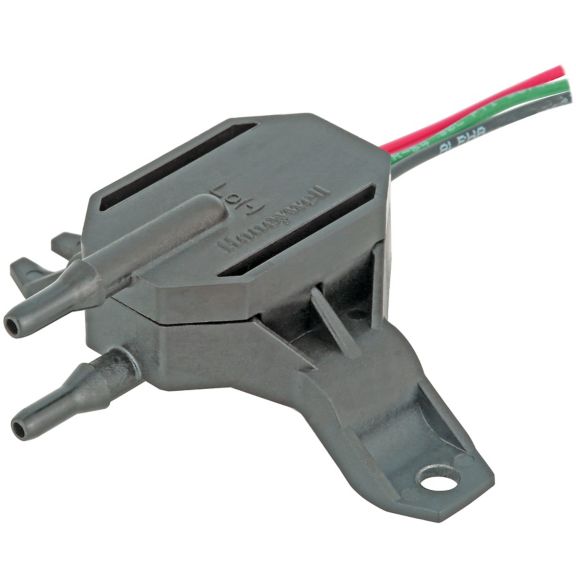

DPR Series electrical termination C highres photo
