Force Sensors

FSG Series

0 N to 20 N force ranges. Unamplified, uncompensated. 360 mV typ. output. Extremely low deflection

The FSG Series Force Sensor provides precise, reliable force sensing performance in a compact commercial-grade package. The sensor features a proven sensing technology that utilizes a specialized piezoresistive micro-machined silicon sensing element. The low power, unamplified, non-compensated Wheatstone bridge circuit design provides inherently stable mV outputs over the 5 N, 10 N, 15 N and 20 N force ranges.

Force sensors operate on the principle that the resistance of silicon-implanted piezoresistors will increase when the resistors flex under any applied force. The sensor concentrates force from the application, through the stainless steel plunger, directly to the silicon-sensing element. The amount of resistance changes in proportion to the amount of force being applied. This change in circuit resistance results in a corresponding mV output level change.

The sensor package design incorporates patented modular construction. The use of innovative elastomeric technology and engineered molded plastics results in overforce capacities of up to three times the rated force.

The stainless steel plunger provides excellent mechanical stability and is adaptable to a variety of applications. Various electric interconnects can accept prewired connectors, printed circuit board mounting, and surface mounting. The unique sensor design also provides a variety of mounting options that include mounting brackets.

Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
FSG Series Force Sensors
application/pdf 378.04 KB
9/2/2021
378.04 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Sensor Evaluation Board (SEB) User Instructions
application/pdf 1.64 MB
1/11/2022
1.64 MB
Airflow sensors contain advanced microstructure technology to provide a sensitive and fast responseto flow, amount/direction of air or other gases. Potential applications include HVAC, gas metering, chromatography, vent hoods, and medical equipment.
application/pdf 2.76 MB
9/2/2021
2.76 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
FSG Series Force Sensors
application/pdf 343.35 KB
9/2/2021
343.35 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Sensors and Switches for Medical Applications
application/pdf 10.15 MB
7/21/2022
10.15 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Solutions for Infusion Pumps
application/pdf 2.35 MB
11/25/2021
2.35 MB
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Sensors and Switches: Solutions for Medical Applications
application/pdf 1.34 MB
7/21/2022
1.34 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
FSG Series lowres photo
image/jpeg 15.44 KB
9/2/2021
15.44 KB
FSG Series Product Photo
application/zip 193.73 KB
9/2/2021
193.73 KB

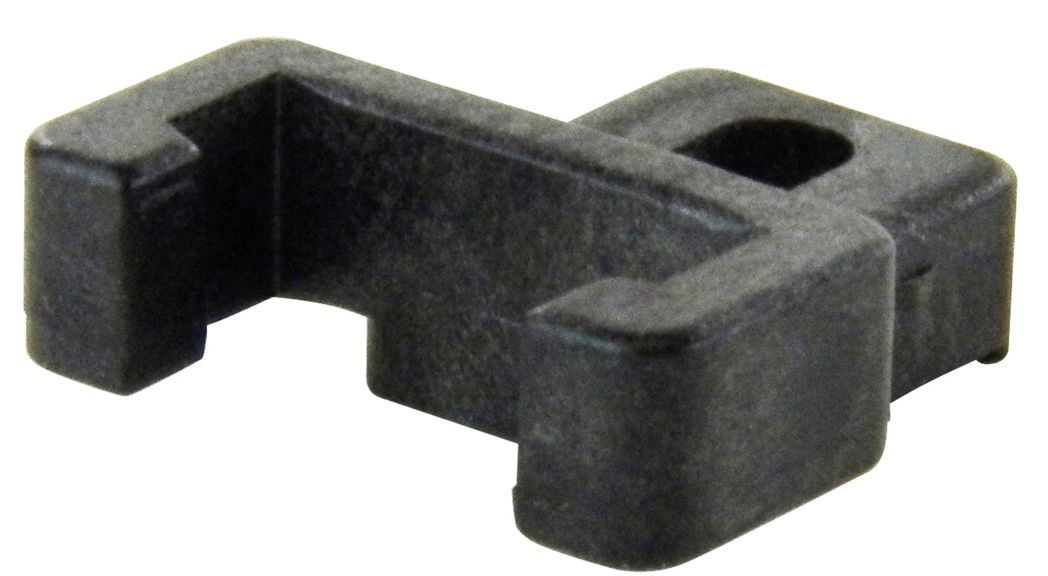

PC15132 Bracket highres photo
image/jpeg 161.05 KB
9/2/2021
161.05 KB

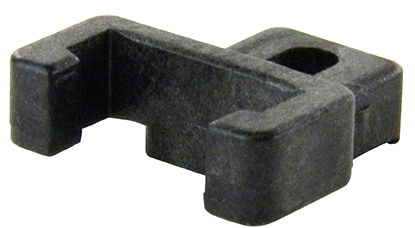

PC15132 Bracket lowres photo
image/jpeg 19.14 KB
9/2/2021
19.14 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
FSG Series Force Sensors
378.04 KB
9/2/2021
378.04 KB
Solutions for Infusion Pumps
2.35 MB
11/25/2021
2.35 MB
FSG Series Force Sensors
343.35 KB
9/2/2021
343.35 KB
Defence Ground Vehicles -
872.87 KB
10/25/2022
872.87 KB
Sensor Evaluation Board (SEB) User Instructions
1.64 MB
1/11/2022
1.64 MB
FSG Series lowres photo
15.44 KB
9/2/2021
15.44 KB
Airflow sensors contain advanced microstructure technology to provide a sensitive and fast responseto flow, amount/direction of air or other gases. Potential applications include HVAC, gas metering, chromatography, vent hoods, and medical equipment.
2.76 MB
9/2/2021
2.76 MB
FSG Series Product Photo
193.73 KB
9/2/2021
193.73 KB
PC15132 Bracket highres photo
161.05 KB
9/2/2021
161.05 KB
PC15132 Bracket lowres photo
19.14 KB
9/2/2021
19.14 KB
Sensors and Switches for Medical Applications
10.15 MB
7/21/2022
10.15 MB
Sensors and Switches: Solutions for Medical Applications
1.34 MB
7/21/2022
1.34 MB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
FSG Series Force Sensors
378.04 KB
9/2/2021
Sensor Evaluation Board (SEB) User Instructions
1.64 MB
1/11/2022
Airflow sensors contain advanced microstructure technology to provide a sensitive and fast responseto flow, amount/direction of air or other gases. Potential applications include HVAC, gas metering, chromatography, vent hoods, and medical equipment.
2.76 MB
9/2/2021
FSG Series Force Sensors
343.35 KB
9/2/2021
Sensors and Switches for Medical Applications
10.15 MB
7/21/2022
Solutions for Infusion Pumps
2.35 MB
11/25/2021
Defence Ground Vehicles -
872.87 KB
10/25/2022
Sensors and Switches: Solutions for Medical Applications
1.34 MB
7/21/2022
FSG Series lowres photo
15.44 KB
9/2/2021
FSG Series Product Photo
193.73 KB
9/2/2021
PC15132 Bracket highres photo
161.05 KB
9/2/2021
PC15132 Bracket lowres photo
19.14 KB
9/2/2021
SKU
Description
alt
FSG005WNPB
FSG Series force sensor, uncompensated/unamplified, analog output, 0 N to 5 N force range, blister pack packaging
alt
FSG010WNPB
FSG Series force sensor, uncompensated/unamplified, analog output, 0 N to 10 N force range, blister pack packaging
alt
FSG015WNPB
FSG Series force sensor, uncompensated/unamplified, analog output, 0 N to 15 N force range, blister pack packaging
alt
FSG020WNPB
FSG Series force sensor, uncompensated/unamplified, analog output, 0 N to 20 N force range, blister pack packaging
SKU
Description
alt
FSG005WNPB
FSG Series force sensor, uncompensated/unamplified, analog output, 0 N to 5 N force range, blister pack packaging
alt
FSG010WNPB
FSG Series force sensor, uncompensated/unamplified, analog output, 0 N to 10 N force range, blister pack packaging
alt
FSG015WNPB
FSG Series force sensor, uncompensated/unamplified, analog output, 0 N to 15 N force range, blister pack packaging
alt
FSG020WNPB
FSG Series force sensor, uncompensated/unamplified, analog output, 0 N to 20 N force range, blister pack packaging
