Particulate Matter Sensors
HPM Series
Laser-based light scattering particle sensing. PM1.0, PM2.5, PM4.0, PM10. <6 s response. UART. Standard and compact versions
Geral
The Honeywell HPM Series Particulate Matter Sensor is a laser-based sensor which detects and counts particles using light scattering. The detection concentration range is 0 µg/m3 to 1,000 µg/m3. A laser light source illuminates a particle as it is pulled through the detection chamber. As particles pass through the laser beam, the light reflects off the particles and is recorded on the photo or light detector. The light is then analyzed and converted to an electrical signal to calculate particle concentration. The Honeywell particle sensor provides information on the particle concentration for given particle concentration range.
Value to Customers
- Enables the ability to more accurately and cost-effectivelymonitor or control environmental particulate
- Industry-leading long life of 10 years of continuous use
- Proven EMC performance enables the ability to perform more accurately in a variety of tough industrialenvironments
- Faster response time of <6 s allows the HPM Series to respond to environmental conditions in real time
- Enhanced reliability allows for use in harsh environments
Differentiation
- Long life of 10 years offers a more stable operation for continuous usage
- Proven EMC performance, based on IEC61000 stable operation, ±15% accuracy (PM2.5)
Features
- Laser-based light scattering particle sensing
- Concentration range: 0 µg/m3 to 1,000 µg/m3
- Fully calibrated
- EMC: Heavy industrial level IEC61000
- Response time: <6 s
- Supply current: 80 mA max.
- Output signal: UART (Universal Asynchronous Receiver/Transmitter)
- PM2.5, PM10 output (standard): PM1.0, PM2.5, PM4.0, PM10 output (compact)
- RoHS compliant
- REACH compliant
Potential Applications
- HVAC (commercial and residential)
- Indoor air quality monitors
- Handheld air quality monitors
- Air purifiers (commercial and residential)
- Automotive cabin air purifiers
Especificações
Outros
- Operating Principle
- Laser scattering
- Package Type
- Compact
- Standard
- Operating Time
- 10 years
- Concentration Range
- 0 μg/m<sup>3</sup> to 1,000 μg/m<sup>3</sup>
- Output Protocol
- UART
- Detection
- PM1.0, PM2.5, PM4.0, PM10
- PM2.5, PM10
- Output Data
- PM1.0 in µg/m<sup>3</sup>, PM2.5 in µg/m<sup>3</sup>, PM4.0 in µg/m<sup>3</sup>, PM10 in µg/m<sup>3</sup>
- PM2.5 in μg/m<sup>3</sup>, PM10 in μg/m<sup>3</sup>
- Accuracy
- ±15% (PM2.5) at 0 μg/m<sup>3</sup> to 1,000 μg/m<sup>3</sup>
- Supply Voltage
- 5 V ±0.2 V
- Series Name
- HPM Series
Outros
- Operating Principle
- Laser scattering
- Package Type
- Compact
- Standard
- Operating Time
- 10 years
- Concentration Range
- 0 μg/m<sup>3</sup> to 1,000 μg/m<sup>3</sup>
- Output Protocol
- UART
- Detection
- PM1.0, PM2.5, PM4.0, PM10
- PM2.5, PM10
- Output Data
- PM1.0 in µg/m<sup>3</sup>, PM2.5 in µg/m<sup>3</sup>, PM4.0 in µg/m<sup>3</sup>, PM10 in µg/m<sup>3</sup>
- PM2.5 in μg/m<sup>3</sup>, PM10 in μg/m<sup>3</sup>
- Accuracy
- ±15% (PM2.5) at 0 μg/m<sup>3</sup> to 1,000 μg/m<sup>3</sup>
- Supply Voltage
- 5 V ±0.2 V
- Series Name
- HPM Series
- Operating Principle : Laser scattering
- Package Type : Compact|Standard
- Operating Time : 10 years
- Concentration Range : 0 μg/m3 to 1,000 μg/m3
- Output Protocol : UART
- Detection : PM1.0, PM2.5, PM4.0, PM10|PM2.5, PM10
- Output Data : PM1.0 in µg/m3, PM2.5 in µg/m3, PM4.0 in µg/m3, PM10 in µg/m3|PM2.5 in μg/m3, PM10 in μg/m3
- Accuracy : ±15% (PM2.5) at 0 μg/m3 to 1,000 μg/m3
- Supply Voltage : 5 V ±0.2 V
- Series Name : HPM Series
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Controlling the Future with Technology
application/pdf 11.8 MB
3/7/2023
11.8 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Solutions For Healthier Air & HVAC Systems
application/pdf 3.88 MB
5/31/2022
3.88 MB
Ficha de Venda
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
HPM Series Particulate Matter Sensors Sell Sheet
application/pdf 2.05 MB
9/2/2021
2.05 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
HPM Series Particle Sensors FAQ
application/pdf 211.76 KB
9/2/2021
211.76 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Controlling the Future with Technology
11.8 MB
3/7/2023
11.8 MB
HPM Series Particulate Matter Sensors Sell Sheet
2.05 MB
9/2/2021
2.05 MB
Solutions For Healthier Air & HVAC Systems
3.88 MB
5/31/2022
3.88 MB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Solutions For Healthier Air & HVAC Systems
3.88 MB
5/31/2022
HPM Series Particulate Matter Sensors Sell Sheet
2.05 MB
9/2/2021
Product Number
SKU
Description
HPMA115C0-003

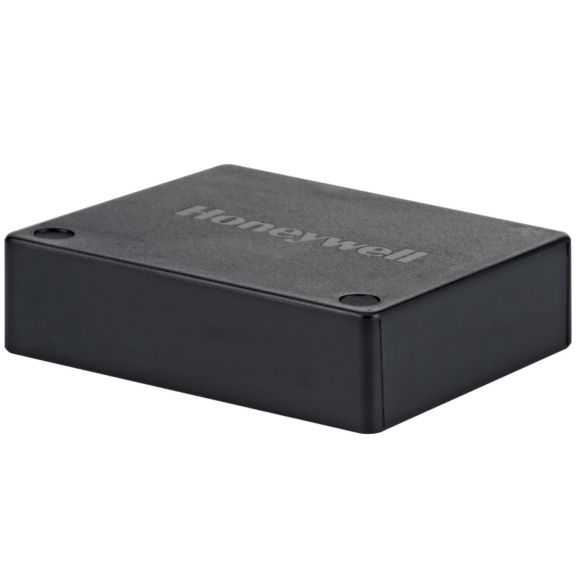

HPM Series PM2.5 Particulate Matter Sensor, compact size, UART output, air inlet and air outlet on same side
HPMA115C0-004

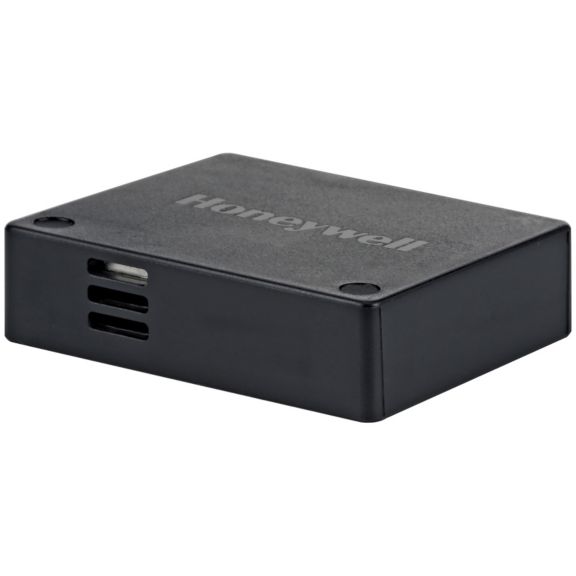

HPM Series PM2.5 Particulate Matter Sensor, compact size, UART output, air inlet and air outlet on opposite sides
HPMA115S0-XXX

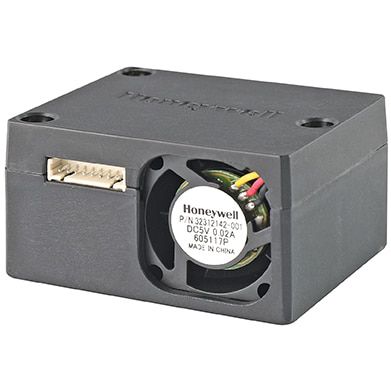

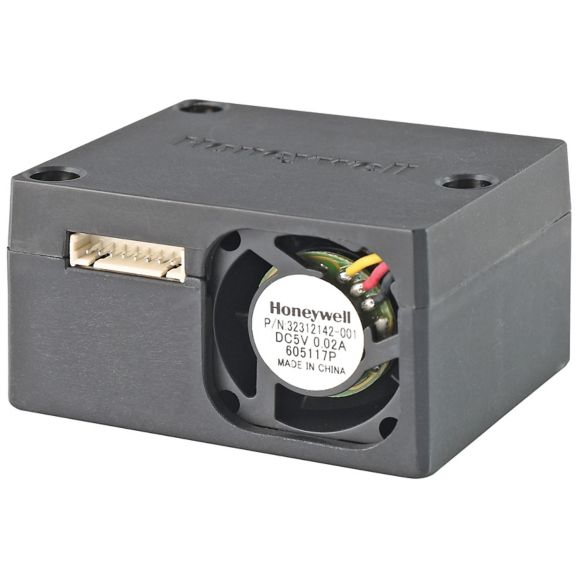

HPM Series PM2.5 Particulate Matter Sensor, standard size, UART output
SKU
Description
HPMA115C0-003
HPM Series PM2.5 Particulate Matter Sensor, compact size, UART output, air inlet and air outlet on same side
HPMA115C0-004
HPM Series PM2.5 Particulate Matter Sensor, compact size, UART output, air inlet and air outlet on opposite sides
HPMA115S0-XXX
HPM Series PM2.5 Particulate Matter Sensor, standard size, UART output
