Latching Position Sensor ICs

SS360NT, SS360ST, SS360ST-10K, SS460S, SS460S-T2, SS460S-T3, SS460S-LP

High sensitivity latching Hall-effect digital sensor ICs. SOT-23, flat TO-92-style with straight or formed lead packages. Digital sinking output

The SS360NT, SS360ST, SS360ST-10K, SS460S, SS460S-T2, SS460S-T3,and SS460S-LP High Sensitivity Latching Digital Hall-Effect Sensor ICs are small, sensitive and versatile devices that are operated by the magnetic field from a permanent magnet or an electromagnet. They are designed to respond to alternating North and South poles. The SS360NT is turned on by a North pole while the SS360ST, SS460S, SS460S-T2, and SS460S-LP are turned on by a South pole.

These sensor ICs offer reliable switching points with a high magnetic sensitivity of 30 G typical (55 G maximum). They do not use chopper stabilization on the Hall element, providing a clean output signal and a faster latch response time when compared to competitive high sensitivity Hall-effect latching sensor ICs, which do use chopper stabilization.

These products offer reverse polarity protection, deliver a stable output over a -40°C to 150°C temperature range, and can accept any dc supply voltage from 3 Vdc to 24 Vdc.

For brushless dc motor manufacturers who need latching sensors with reliable, consistent performance for more efficient and smaller designs, Honeywell High Sensitivity Hall-Effect Latching Digital Sensor ICs respond to low magnetic fields and offer consistent repeatability while delivering faster response times to a change in magnetic field for better motor efficiency.

These products are available in the following package styles:
  • SS360NT, SS360ST, SS360ST-10K: SOT-23 surface-mount package, pocket tape and reel
  • Flat TO-92-style straight standard leads, bulk pack
  • Flat TO-92-style formed leads, ammopack tape-in-box
  • Flat TO-92-style straight, long leads, pocket tape and reel
  • Flat TO-92-style straight standard leads, ammopack tape-in-box
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Position Sensors Product Range Guide
application/pdf 4.85 MB
10/4/2021
4.85 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SS360NT, SS360ST, SS360ST-10K, SS460S, SS460S-T2, SS460-T3, SS460S-LP High Sensitivity Latching Digital Hall-Effect Sensor ICs
application/pdf 725.23 KB
9/2/2021
725.23 KB
Modelo CAD
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Magnetic Sensor IC Flat TO-92-Style CAD Model
application/zip 13.27 KB
9/2/2021
13.27 KB
Magnetic Sensor IC SOT-23 CAD Model
application/zip 16.4 KB
9/2/2021
16.4 KB
Magnetic Sensors CAD Models - grouped
application/zip 130.4 KB
9/2/2021
130.4 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Making Sense of Sensing
application/pdf 3.37 MB
10/6/2021
3.37 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Achieving High Sensitivity and Magnetic Stability without the Use of Chopper Stabilization in Latching Hall-Effect Sensorsfor Brushless DC Motor Applications Technical Note
application/pdf 117.53 KB
1/27/2022
117.53 KB
Magnetic Sensor IC Product Line Card
application/pdf 480.99 KB
9/2/2021
480.99 KB
Magnetic Sensor IC Selection Chart --
application/pdf 372.87 KB
10/25/2022
372.87 KB
White Paper
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Non-chopper-stabilized versus chopper-stabilized bipolar latching Hall-effect sensors
application/pdf 950.68 KB
1/31/2022
950.68 KB
How to select Hall-effect sensors for brushless dc motors
application/pdf 379.18 KB
1/31/2022
379.18 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Solutions for Oxygen Concentrators
application/pdf 2.29 MB
7/21/2022
2.29 MB
Industrial Warehouse Solutions
application/pdf 2.85 MB
9/23/2022
2.85 MB
Solutions for Molecular Diagnostics
application/pdf 2.61 MB
11/25/2021
2.61 MB
Solutions for Ventilators
application/pdf 2.78 MB
11/25/2021
2.78 MB
Construction Vehicles -
application/pdf 984.29 KB
10/25/2022
984.29 KB
Magnetic Position Sensing in Brushless DC Electric Motors
application/pdf 519.43 KB
9/2/2021
519.43 KB
Solutions for Hematology Analyzers
application/pdf 2.26 MB
11/25/2021
2.26 MB
Switches and Sensors Solutions for Industrial Applications
application/pdf 2.48 MB
11/25/2021
2.48 MB
Solutions for Laboratory Automation
application/pdf 6.42 MB
11/25/2021
6.42 MB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Solutions for Hemodialysis Machines
application/pdf 2.66 MB
11/23/2021
2.66 MB
Solutions for Infusion Pumps
application/pdf 2.35 MB
11/25/2021
2.35 MB
Solutions For Healthier Air & HVAC Systems
application/pdf 3.88 MB
5/31/2022
3.88 MB
Sensors in Sleep Apnea Machines
application/pdf 1.88 MB
9/2/2021
1.88 MB
Sensors and Switches: Solutions for Medical Applications
application/pdf 1.34 MB
7/21/2022
1.34 MB
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

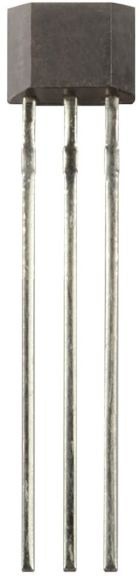

Flat TO-92-style straight standard leads lowres photo
image/jpeg 16.8 KB
9/2/2021
16.8 KB
SOT-23 lowres photo
image/jpeg 12.05 KB
9/2/2021
12.05 KB

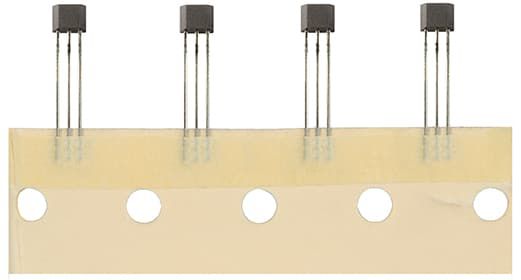

Flat TO-92-style straight standard leads ammopack tape lowres photo
image/jpeg 9.16 KB
9/2/2021
9.16 KB

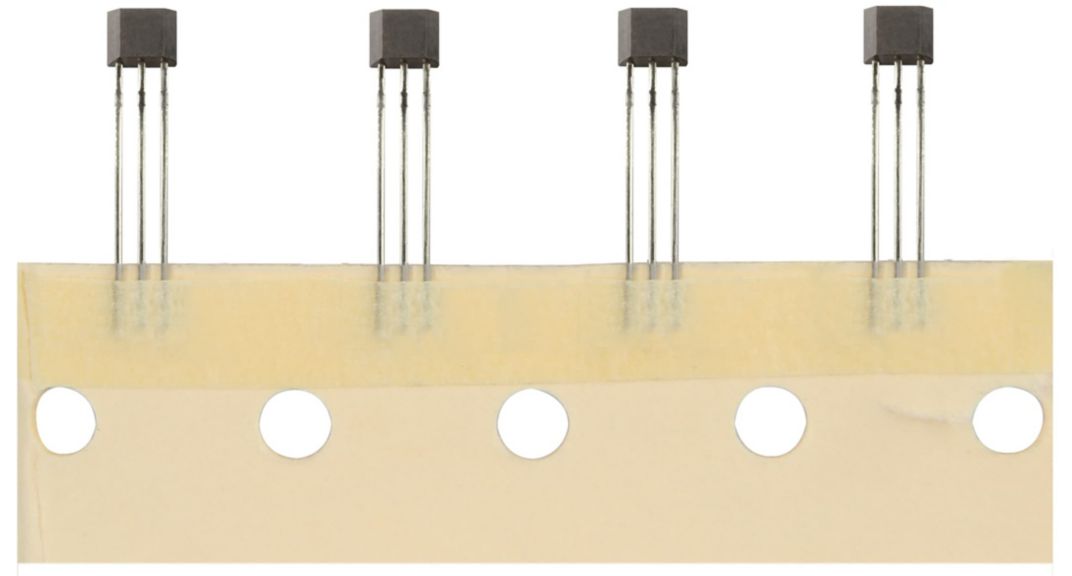

Flat TO-92-style straight standard leads ammo pack tape highres photo
image/jpeg 64.75 KB
9/2/2021
64.75 KB
Magnetic Sensors Product Photos - grouped
application/zip 1.22 MB
9/2/2021
1.22 MB

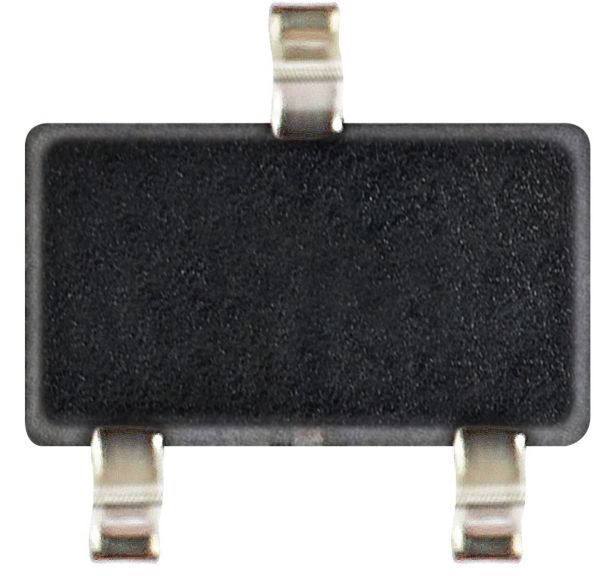

SOT-23 highres photo
image/jpeg 115.42 KB
9/2/2021
115.42 KB

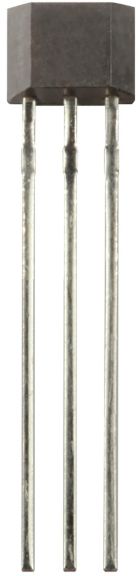

Flat TO-92-style straight standard leads highres photo
