Speed and Direction, Speed Sensor ICs

VM Series

Anisotropic Magnetoresistive (AMR) sensor ICs. Detects speed, direction, position ring magnet encoder target

Honeywell’s VM Series Anisotropic Magnetoresistive (AMR) Integrated Circuit (IC) product line is designed to detect the speed and direction of a ring magnet encoder target using a unique (patent pending) bridge design and configuration. The three offerings include 2- and 4-pin AMR sensors to be used in speed, speed and position sensing in transmissions, engine cranks, wheel speed measurement, integrated bearings and seals and for shaft speed measurement in pumps, motors and compressors.

These products are designed to provide increased flexibility and may be used in most types of mounting configurations.

Honeywell’s unique solution utilizes the AMR bridge in saturation, which provides a more stable output response when the system has vibration, sudden air gap changes, or target runout without requiring complex magnitude compensation algorithms.

The AMR signal has greater sensitivity than Hall-effect sensor ICs, and does not require automatic gain control or chopper stabilization that can lead to increased jitter over the operating range.

Features
  • Integrated speed and direction or speed only sensor IC
  • Quadrature output version
  • Pole size independent operation
  • -40°C to 150°C operating temperature range
  • Zero speed output
  • No calibration required
  • Insensitive to mechanical vibration
  • Protection against reverse polarity
  • Electrostatic Discharge (ESD) protected
  • Co-packaged capacitor (2-pin versions)
  • ISO26262 ASIL-B(D) conforming*
  • AEC-Q100H Grade 0 qualified*

*VM721V1, VM721D1 only

Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
VM821Q1 AMR 4-Pin Quadrature Sensor Integrated Circuit
application/pdf 420.96 KB
9/2/2021
420.96 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Transportation Range Guide
application/pdf 18.57 MB
10/4/2021
18.57 MB
Position Sensors Product Range Guide
application/pdf 4.85 MB
10/4/2021
4.85 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
VM821Q1 AMR 4-Pin Quadrature Sensor Integrated Circuit
application/pdf 809.58 KB
9/2/2021
809.58 KB
Modelo CAD
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
VM Series CAD Models - grouped
application/zip 18.18 KB
6/15/2022
18.18 KB
VM821Q1 CAD Model
application/zip 18.14 KB
9/2/2021
18.14 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Making Sense of Sensing
application/pdf 3.37 MB
10/6/2021
3.37 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Magnetic Sensor IC Product Line Card
application/pdf 480.99 KB
9/2/2021
480.99 KB
Magnetic Sensor IC Selection Chart --
application/pdf 372.87 KB
10/25/2022
372.87 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Solutions For Healthier Air & HVAC Systems
application/pdf 3.88 MB
5/31/2022
3.88 MB
Quadrature Speed and Position Sensing in Industrial Speed Applications Using Multipole Ring Magnet/Encoder Targets
application/pdf 1.51 MB
9/2/2021
1.51 MB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Construction Vehicles -
application/pdf 984.29 KB
10/25/2022
984.29 KB
Speed and Direction Sensing in Wheel Speed Applications Using Multipole Ring Magnet/Encoder Targets Application Note
application/pdf 217.11 KB
9/2/2021
217.11 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
VM821Q1 lowres photo
image/jpeg 10.67 KB
9/2/2021
10.67 KB
VM821Q1 highres photo
image/jpeg 83.63 KB
9/2/2021
83.63 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Defence Ground Vehicles -
872.87 KB
10/25/2022
872.87 KB
Solutions For Healthier Air & HVAC Systems
3.88 MB
5/31/2022
3.88 MB
Magnetic Sensor IC Product Line Card
480.99 KB
9/2/2021
480.99 KB
Making Sense of Sensing
3.37 MB
10/6/2021
3.37 MB
VM821Q1 AMR 4-Pin Quadrature Sensor Integrated Circuit
420.96 KB
9/2/2021
420.96 KB
Quadrature Speed and Position Sensing in Industrial Speed Applications Using Multipole Ring Magnet/Encoder Targets
1.51 MB
9/2/2021
1.51 MB
Agricultural Vehicles -
1.11 MB
10/25/2022
1.11 MB
Construction Vehicles -
984.29 KB
10/25/2022
984.29 KB
Speed and Direction Sensing in Wheel Speed Applications Using Multipole Ring Magnet/Encoder Targets Application Note
217.11 KB
9/2/2021
217.11 KB
VM Series CAD Models - grouped
18.18 KB
6/15/2022
18.18 KB
VM821Q1 AMR 4-Pin Quadrature Sensor Integrated Circuit
809.58 KB
9/2/2021
809.58 KB
VM821Q1 lowres photo
10.67 KB
9/2/2021
10.67 KB
Transportation Range Guide
18.57 MB
10/4/2021
18.57 MB
Position Sensors Product Range Guide
4.85 MB
10/4/2021
4.85 MB
VM821Q1 CAD Model
18.14 KB
9/2/2021
18.14 KB
VM821Q1 highres photo
83.63 KB
9/2/2021
83.63 KB
Magnetic Sensor IC Selection Chart --
372.87 KB
10/25/2022
372.87 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
VM821Q1 AMR 4-Pin Quadrature Sensor Integrated Circuit
420.96 KB
9/2/2021
Transportation Range Guide
18.57 MB
10/4/2021
Position Sensors Product Range Guide
4.85 MB
10/4/2021
VM821Q1 AMR 4-Pin Quadrature Sensor Integrated Circuit
809.58 KB
9/2/2021
VM Series CAD Models - grouped
18.18 KB
6/15/2022
VM821Q1 CAD Model
18.14 KB
9/2/2021
Making Sense of Sensing
3.37 MB
10/6/2021
Magnetic Sensor IC Product Line Card
480.99 KB
9/2/2021
Magnetic Sensor IC Selection Chart --
372.87 KB
10/25/2022
Defence Ground Vehicles -
872.87 KB
10/25/2022
Solutions For Healthier Air & HVAC Systems
3.88 MB
5/31/2022
Quadrature Speed and Position Sensing in Industrial Speed Applications Using Multipole Ring Magnet/Encoder Targets
1.51 MB
9/2/2021
Agricultural Vehicles -
1.11 MB
10/25/2022
Construction Vehicles -
984.29 KB
10/25/2022
Speed and Direction Sensing in Wheel Speed Applications Using Multipole Ring Magnet/Encoder Targets Application Note
217.11 KB
9/2/2021
VM821Q1 lowres photo
10.67 KB
9/2/2021
VM821Q1 highres photo
83.63 KB
9/2/2021
SKU
Description
alt
VM721D1
VM721D1 Anisotropic magnetoresistive (AMR) speed and direction sensor IC, 2-pin SIP, 500 units/bag
alt
VM721V1
VM721V1 Anisotropic magnetoresistive (AMR) speed sensor IC, 2-pin SIP, 500 units/bag
alt

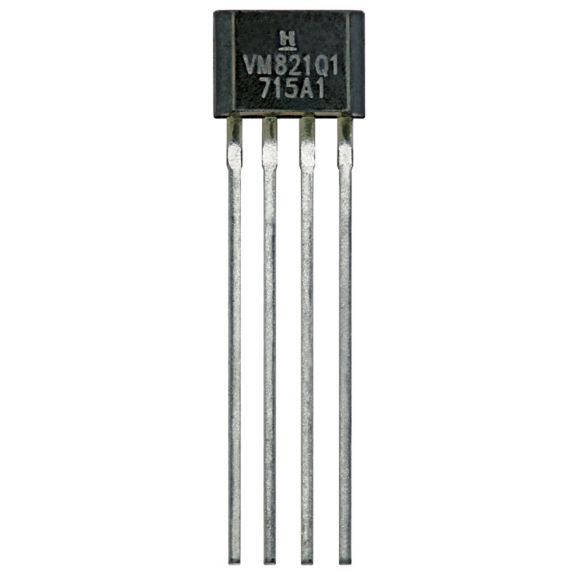

VM821Q1
VM821Q1 Anisotropic magnetoresistive (AMR) quadrature sensor IC, 4-pin SIP, 500 units/bag
SKU
Description
alt
VM721D1
VM721D1 Anisotropic magnetoresistive (AMR) speed and direction sensor IC, 2-pin SIP, 500 units/bag
alt
VM721V1
VM721V1 Anisotropic magnetoresistive (AMR) speed sensor IC, 2-pin SIP, 500 units/bag
alt
VM821Q1
VM821Q1 Anisotropic magnetoresistive (AMR) quadrature sensor IC, 4-pin SIP, 500 units/bag
