Hazardous Area Limit Switches

BX2 Series

cULus. ATEX (CE). EAC. IEC Ex. INMETRO. NEPSI. IP67, NEMA 1, 3, 4, 4X, 6, 13. Div 1 & 2: Class I: B, C, D. Div 1 & 2: Class II: E, F, G

The MICRO SWITCH BX/BX2 Series are designed for applications in hazardous or explosive environments requiring a rugged, durable switch virtually anywhere in the world. To comply with explosion-proof switching requirements, the flame path within the switch housing is designed to contain and cool escaping hot gases and fumes that could cause an explosion outside of the switch.

Regardless of where the equipment or machinery is designed, built, or installed, BX and BX2 Series products carry global agency coverage. Honeywell offers two versions of the BX series switch: the standard BX Series features an aluminum housing, while the BX2 Series features a 316L stainless steel housing.

The stainless steel housing adds additional resistance against corrosion in applications exposed to aggressive, caustic agents, as well as those often present in chemical processing plants, off-shore/near-shore sites, and other hazardous areas. Both products are weather sealed for outdoor use and designed for explosive gas/dust environments. All operating heads of the BX/BX2 Series are field adjustable at 90° increments.

Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
MICRO SWITCH BX/BX2 Series Explosion-Proof Limit Switches
application/pdf 5.83 MB
3/8/2022
5.83 MB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
MICRO SWITCH™ Hazardous Area Approvals Guide
application/pdf 2.77 MB
9/2/2021
2.77 MB
Limit Switches and Machine Safety Product Range Guide
application/pdf 7.98 MB
9/9/2022
7.98 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
50047766: MICRO SWITCH BX2 Series Explosion-Proof Limit Switch (Stainless Steel)
application/pdf 3.34 MB
4/26/2022
3.34 MB
Informação Regulatória
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
MICRO SWITCH Hazardous Location Approvals Matrix
application/pdf 532.89 KB
9/2/2021
532.89 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
MICRO SWITCH Hazardous Area Switches Brochure
application/pdf 24.3 MB
9/2/2021
24.3 MB
Oil and Gas Brochure -
application/pdf 3.4 MB
10/25/2022
3.4 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Industrial Product Line Card --
application/pdf 2.24 MB
10/25/2022
2.24 MB
White Paper
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Why Limit Switches? A Straight-Forward Switching Solution
application/pdf 986.65 KB
9/2/2021
986.65 KB
White Paper: How Switches Can Stop Machines from Going Boom
application/pdf 2.56 MB
9/2/2021
2.56 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
BX2 Series: Pipeline Pig Passage Detection/Indicator Applications
application/pdf 647.15 KB
9/2/2021
647.15 KB
BX2 Series: Gas Recovery Unit and Other O&G Drilling Applications
application/pdf 679.88 KB
9/2/2021
679.88 KB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Sensors and Switches in Valves and Flowmeters
application/pdf 1.78 MB
9/23/2022
1.78 MB
Switches and Sensors Solutions for Industrial Applications
application/pdf 2.48 MB
11/25/2021
2.48 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
BX2 Series Product Photo
application/zip 655.55 KB
9/2/2021
655.55 KB
BX24A3K-1A lowres photo
image/jpeg 42.55 KB
9/2/2021
42.55 KB
BX24A3K-1A highres photo
image/jpeg 615.75 KB
9/2/2021
615.75 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
MICRO SWITCH Hazardous Area Switches Brochure
24.3 MB
9/2/2021
24.3 MB
MICRO SWITCH™ Hazardous Area Approvals Guide
2.77 MB
9/2/2021
2.77 MB
Limit Switches and Machine Safety Product Range Guide
7.98 MB
9/9/2022
7.98 MB
Industrial Product Line Card --
2.24 MB
10/25/2022
2.24 MB
BX2 Series: Pipeline Pig Passage Detection/Indicator Applications
647.15 KB
9/2/2021
647.15 KB
BX2 Series: Gas Recovery Unit and Other O&G Drilling Applications
679.88 KB
9/2/2021
679.88 KB
Why Limit Switches? A Straight-Forward Switching Solution
986.65 KB
9/2/2021
986.65 KB
Agricultural Vehicles -
1.11 MB
10/25/2022
1.11 MB
MICRO SWITCH Hazardous Location Approvals Matrix
532.89 KB
9/2/2021
532.89 KB
BX2 Series Product Photo
655.55 KB
9/2/2021
655.55 KB
Sensors and Switches in Valves and Flowmeters
1.78 MB
9/23/2022
1.78 MB
50047766: MICRO SWITCH BX2 Series Explosion-Proof Limit Switch (Stainless Steel)
3.34 MB
4/26/2022
3.34 MB
MICRO SWITCH BX/BX2 Series Explosion-Proof Limit Switches
5.83 MB
3/8/2022
5.83 MB
BX24A3K-1A lowres photo
42.55 KB
9/2/2021
42.55 KB
White Paper: How Switches Can Stop Machines from Going Boom
2.56 MB
9/2/2021
2.56 MB
BX24A3K-1A highres photo
615.75 KB
9/2/2021
615.75 KB
Switches and Sensors Solutions for Industrial Applications
2.48 MB
11/25/2021
2.48 MB
Oil and Gas Brochure -
3.4 MB
10/25/2022
3.4 MB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
MICRO SWITCH BX/BX2 Series Explosion-Proof Limit Switches
5.83 MB
3/8/2022
MICRO SWITCH™ Hazardous Area Approvals Guide
2.77 MB
9/2/2021
Limit Switches and Machine Safety Product Range Guide
7.98 MB
9/9/2022
50047766: MICRO SWITCH BX2 Series Explosion-Proof Limit Switch (Stainless Steel)
3.34 MB
4/26/2022
MICRO SWITCH Hazardous Location Approvals Matrix
532.89 KB
9/2/2021
MICRO SWITCH Hazardous Area Switches Brochure
24.3 MB
9/2/2021
Oil and Gas Brochure -
3.4 MB
10/25/2022
Industrial Product Line Card --
2.24 MB
10/25/2022
Why Limit Switches? A Straight-Forward Switching Solution
986.65 KB
9/2/2021
White Paper: How Switches Can Stop Machines from Going Boom
2.56 MB
9/2/2021
BX2 Series: Pipeline Pig Passage Detection/Indicator Applications
647.15 KB
9/2/2021
BX2 Series: Gas Recovery Unit and Other O&G Drilling Applications
679.88 KB
9/2/2021
Agricultural Vehicles -
1.11 MB
10/25/2022
Sensors and Switches in Valves and Flowmeters
1.78 MB
9/23/2022
Switches and Sensors Solutions for Industrial Applications
2.48 MB
11/25/2021
BX2 Series Product Photo
655.55 KB
9/2/2021
BX24A3K-1A lowres photo
42.55 KB
9/2/2021
BX24A3K-1A highres photo
615.75 KB
9/2/2021
SKU
Description
alt
BX24A3K
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), side rotary (no lever included), 1NC 1NO SPDT snap action, 20 mm conduit, and 316L stainless steel housing
alt

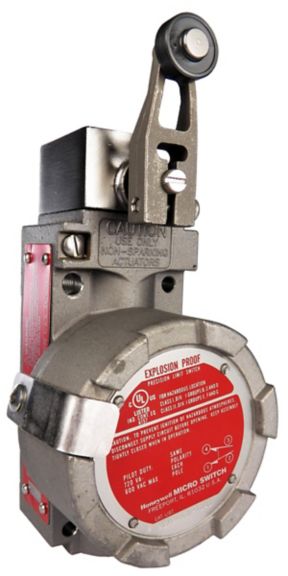

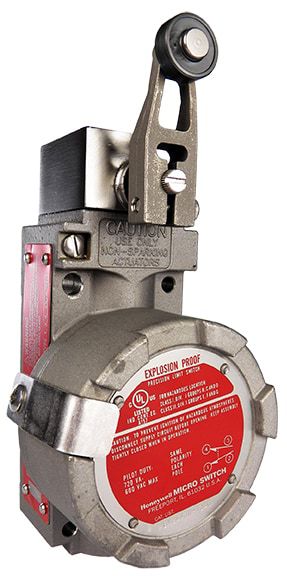

BX24A3K-1A
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), side rotary (fixed lever with 0.75 in x 0.25 in nylon roller), 1NC 1NO SPDT snap action, 20 mm conduit, and 316L stainless steel housing
alt
BX24C4L
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), top pin plunger (momentary), 2NC 2NO SPDT snap action, 20 mm conduit, and 316L stainless steel housing
alt
BX24P4L
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), side rotary (momentary, low PT and DT), 2NC 2NO SPDT snap action, 20 mm conduit, and 316L stainless steel housing
alt
BX2A3K
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), side rotary (no lever included), 1NC 1NO SPDT snap action, 0.5 in - 14 NPT conduit, and 316L stainless steel housing
alt
BX2C4L
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), top pin plunger (momentary), 2NC 2NO SPDT snap action, 0.75 in - 14NPT conduit, and 316L stainless steel housing
alt
BX2P4L
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), side rotary (momentary, low PT and DT), 2NC 2NO SPDT snap action, 0.75 in - 14NPT conduit, and 316L stainless steel housing
SKU
Description
alt
BX24A3K
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), side rotary (no lever included), 1NC 1NO SPDT snap action, 20 mm conduit, and 316L stainless steel housing
alt
BX24A3K-1A
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), side rotary (fixed lever with 0.75 in x 0.25 in nylon roller), 1NC 1NO SPDT snap action, 20 mm conduit, and 316L stainless steel housing
alt
BX24C4L
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), top pin plunger (momentary), 2NC 2NO SPDT snap action, 20 mm conduit, and 316L stainless steel housing
alt
BX24P4L
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), side rotary (momentary, low PT and DT), 2NC 2NO SPDT snap action, 20 mm conduit, and 316L stainless steel housing
alt
BX2A3K
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), side rotary (no lever included), 1NC 1NO SPDT snap action, 0.5 in - 14 NPT conduit, and 316L stainless steel housing
alt
BX2C4L
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), top pin plunger (momentary), 2NC 2NO SPDT snap action, 0.75 in - 14NPT conduit, and 316L stainless steel housing
alt
BX2P4L
MICRO SWITCH BX2 Series Hazardous Location Limit Switches (Non Plug-in), side rotary (momentary, low PT and DT), 2NC 2NO SPDT snap action, 0.75 in - 14NPT conduit, and 316L stainless steel housing
