Display and Conditioning

7541 Series

Single- or dual-channel instrument. ac or dc excitation. Strain gage & speed sensor inputs

These advanced instruments provide engineering unit display of a strain gage (mV/V) input and a frequency input. They also compute power and perform 21 functions including limit checks, tare, hold and max./min. capture. You needn̵7:t write code or add hardware to be up and running a productive test. The alphanumeric readout can display measured and computed data, units of measure, and test status. During setup, it guides you with English language prompts. There are no manual adjustments. To calibrate, enter the full scale value in engineering units and auto-cal takes over. Provides 0.01 % (max.) resolution and ±5 V and/or ±10 V analog outputs at full scale. The keyboard accesses measured data, held data, max./min. data, data spread, limit status, and/or I/O status without disruption. Password protection may be used, if needed.

Features
  • May be calibrated in two directions (clockwise and counterclockwise or tension and compression)
  • Fast, rock-solid readings with high noise immunity - 2000 samples/sec for torque, head, or drawbar force input - 1 ms response for speed
  • One or two channel input
  • Six-digit engineering unit with legends and 0.01 % resolution max.
  • RS-232, RS-422, RS-485 serial communication
  • Auto-scaled ±5 V and/or ±10 V analog outputs
  • No pots, batteries, fans, maintenance, or external power supplies
  • Excitation: ac carrier models, 3.28 kHz, 3 V rms: dc models, 5 V or 10 V dc, user selectable
  • CE approved
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Instrumentation Accessories Datasheet
application/pdf 653.02 KB
9/2/2021
653.02 KB
Test & Measurement Model 7541 AC Carrier or DC Strain Gage Conditioner Indicator Datasheet
application/pdf 174.74 KB
9/2/2021
174.74 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
7541 Series Product Photo
application/zip 866.47 KB
9/2/2021
866.47 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

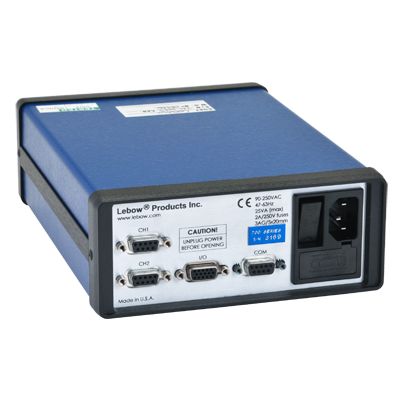

Model 7541 Bottom View
image/png 131.4 KB
9/2/2021
131.4 KB

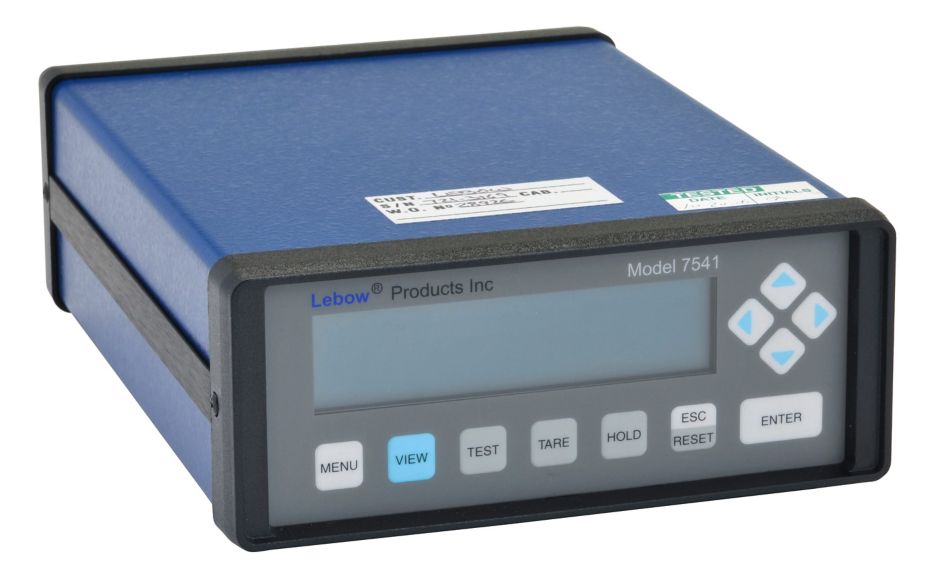

Model 7541_highres_photo
image/jpeg 253.14 KB
9/2/2021
253.14 KB

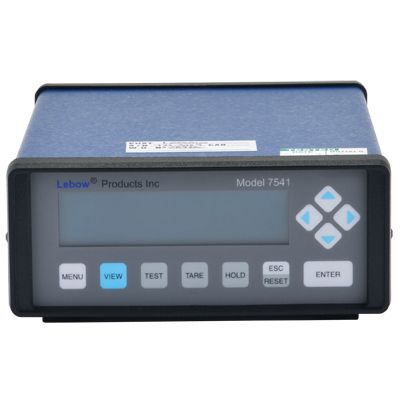

Model 7541 Front View
image/png 129.13 KB
9/2/2021
129.13 KB

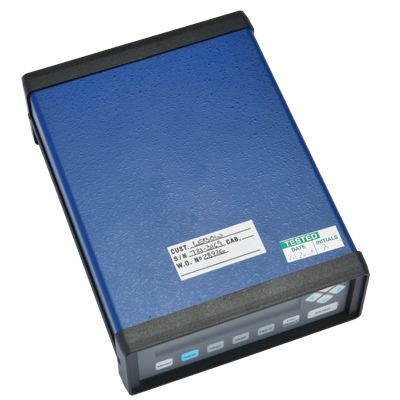

Model 7541 Top View
image/png 185.65 KB
9/2/2021
185.65 KB
Model 7541_lowres_photo
image/jpeg 65.93 KB
9/2/2021
65.93 KB

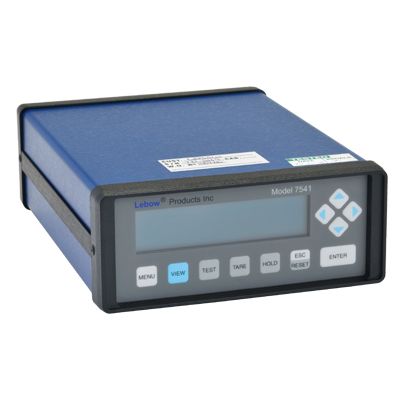

Model 7541 Top Angle View
