Display and Conditioning

7561-PSD Series

Handheld portable instrument. 7½-digit LCD display. Powered by 2 'AA' batteries

The 7561-PSD is a completely portable, strain gauge/bridge-based, battery-powered indicator packaged in a small, robust IP65/NEMA 4 enclosure. For simplified use, the operator only has access to six keys. Two separate ranges are available that enable the instrument to read and display two units of measure. The menu options offer the ability to tailor the instrument̵7:s response to the application. Gross, net, peak and trough (valley) measurements are easily selected. An annunciator indicates which range has been selected. There is also a window to insert a legend describing each range. Once these parameters are set, it provides the user with the simplest of indicators.

Features
  • Powered by two AA internal batteries
  • Portable, handheld precision instrument weighing only 250 g
  • Tactile keyboard, with dual-range selection, peak/valley hold, gross/net, and on/off controls
  • Microprocessor based, allowing single-pass calibration facility
  • Dual range facility
  • Accepts an input range of up to 50 mV/V
  • Environmentally sealed to IP65/NEMA 4
  • 7½ digit LCD display, with battery, peak, trough, net, error, and shunt cal indication
  • One-year warranty
  • Auto sleep
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 7561-PSD Portable Strain Display Load Cell/Force Indicator Datasheet
application/pdf 143.64 KB
9/2/2021
143.64 KB
Test & Measurement Instrumentation Accessories Datasheet
application/pdf 653.02 KB
9/2/2021
653.02 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
7561-PSD Series Product Photo
application/zip 371.25 KB
9/2/2021
371.25 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 7561-PSD Front View
image/png 85.59 KB
9/2/2021
85.59 KB
Model 7561-PSD Bottom View
image/png 88.35 KB
9/2/2021
88.35 KB
Model 7561-PSD_lowres_photo
image/jpeg 37.69 KB
9/2/2021
37.69 KB
Model 7561-PSD_highres_photo
image/jpeg 126 KB
9/2/2021
126 KB
Model 7561-PSD Top View
image/png 48.93 KB
9/2/2021
48.93 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 7561-PSD Portable Strain Display Load Cell/Force Indicator Datasheet
143.64 KB
9/2/2021
143.64 KB

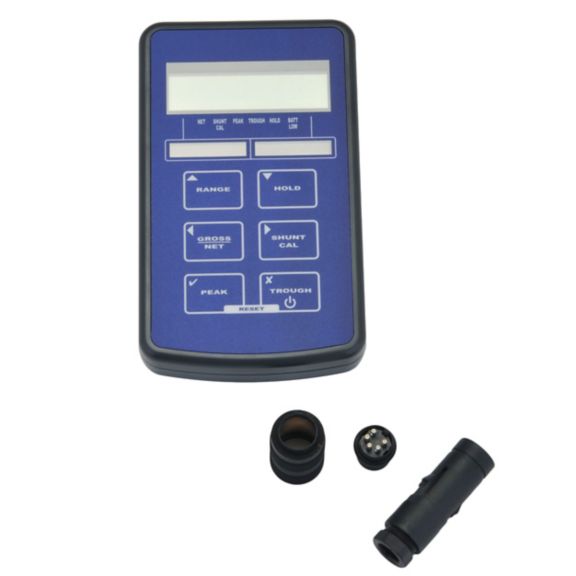

Model 7561-PSD Front View
85.59 KB
9/2/2021
85.59 KB
Test & Measurement Instrumentation Accessories Datasheet
653.02 KB
9/2/2021
653.02 KB

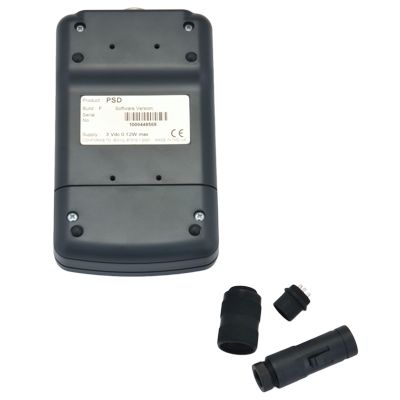

Model 7561-PSD Bottom View
88.35 KB
9/2/2021
88.35 KB
Model 7561-PSD_lowres_photo
37.69 KB
9/2/2021
37.69 KB
Model 7561-PSD_highres_photo
126 KB
9/2/2021
126 KB
7561-PSD Series Product Photo
371.25 KB
9/2/2021
371.25 KB

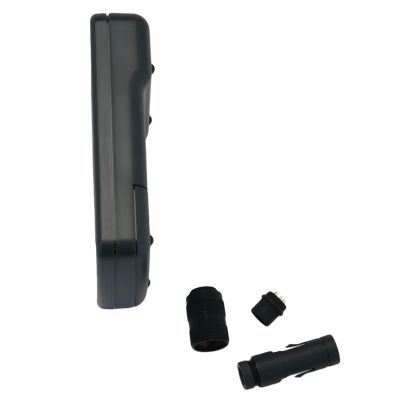

Model 7561-PSD Top View
48.93 KB
9/2/2021
48.93 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 7561-PSD Portable Strain Display Load Cell/Force Indicator Datasheet
143.64 KB
9/2/2021
Test & Measurement Instrumentation Accessories Datasheet
653.02 KB
9/2/2021
7561-PSD Series Product Photo
371.25 KB
9/2/2021
Model 7561-PSD Front View
85.59 KB
9/2/2021
Model 7561-PSD Bottom View
88.35 KB
9/2/2021
Model 7561-PSD_lowres_photo
37.69 KB
9/2/2021
Model 7561-PSD_highres_photo
126 KB
9/2/2021
Model 7561-PSD Top View
48.93 KB
9/2/2021
SKU
Description
alt
060-7561PSD-01
Handheld Strain Gage Display for Sensitivity up to 5 mV/V
SKU
Description
alt
060-7561PSD-01
Handheld Strain Gage Display for Sensitivity up to 5 mV/V
