Display and Conditioning

SC500 Series

Programmable single-channel instrument. ⅛ DIN case. Available in strain gage, high level, & LVDT input versions

The SC series models are self-calibrating microprocessor-based transducer signal conditioners when used with sig mod equipped transducers. Indicators are available with several different types of input channels and output channels. When used with unamplified strain gage transducers that have the signature calibration module installed, these instruments will completely self calibrate zero, span, decimal point, and engineering units automatically. Input channels are available for a variety of transducers. Each input channel includes an excitation power supply and either an isolated voltage (optional) or isolated current analog output (optional).

Features
  • Choice of transducer inputs
  • Small 1/8 DIN form factor
  • Automatic setup, calibration via sig cal
  • Shunt-cal, mV/V or known load calibration
  • Peak/valley capture
  • Optional analog output and RS-232/RS-485
  • Field selectable frequency response (up to 250 Hz) and calibration
  • Up to three virtual channels (optional)
  • CE approved
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Instrumentation Accessories Datasheet
application/pdf 653.02 KB
9/2/2021
653.02 KB
Test & Measurement Model SC500 Programmable Single-Channel Transducer Indicator/Conditioner
application/pdf 785.51 KB
9/2/2021
785.51 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model SC500 Series Single-Channel Product Manual
application/pdf 2.46 MB
9/2/2021
2.46 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
SC500 Series Product Photo
application/zip 600.38 KB
9/2/2021
600.38 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

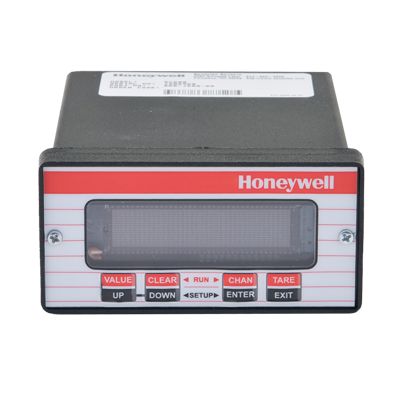

Model SC500 Front View
image/png 124.12 KB
9/2/2021
124.12 KB

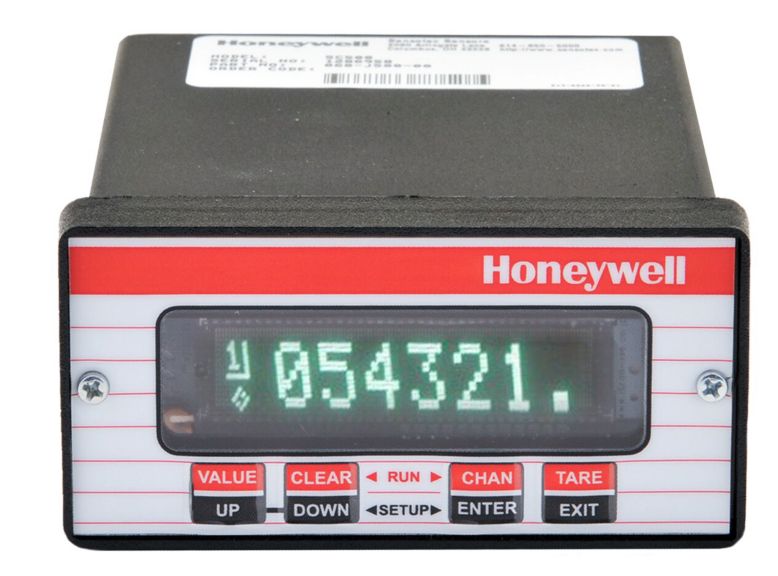

Model SC500_highres_photo
image/jpeg 166.49 KB
9/2/2021
166.49 KB

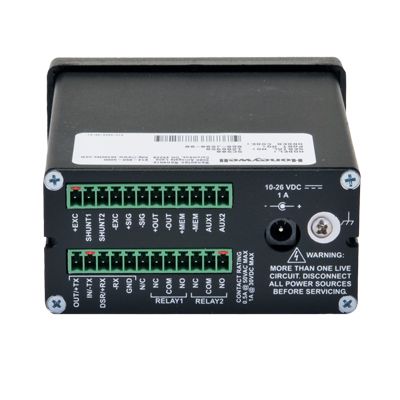

Model SC500 Bottom View
image/png 146.42 KB
9/2/2021
146.42 KB

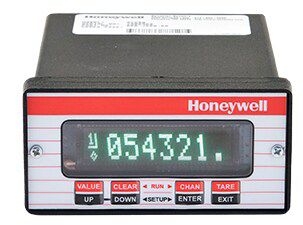

Model SC500_lowres_photo
image/jpeg 18.34 KB
9/2/2021
18.34 KB

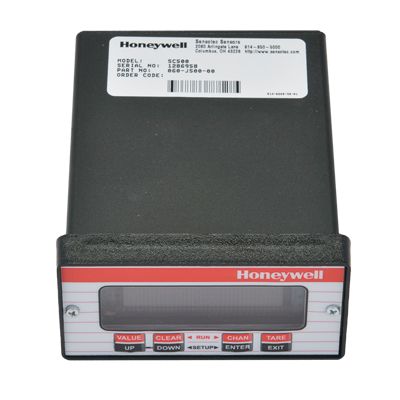

Model SC500 Top View
