Inline Amplifiers

UBP-10 Series

Universal bipolar strain gauge. 24 to 32 single voltage supply to inline wiring. Programmable gain settings. Wide adjustment range on the zero

The Model UBP-10 bi-polar in-line amplifier supplies a highly-regulated, bridge excitation voltage for the transducer and converts the millivolt signal of the transducer to a ±10 Vdc signal. (-)OUTPUT is biased approximately 1/3 of the supply voltage. The output will swing 0 Vdc to 10 Vdc around the (-)OUTPUT reference voltage. The universal, in-line amplifier features three selectable excitation voltages, programmable gain settings, wide adjustment range on the zero and a buffered solid-state shunt cal relay for quick calibration.

Features
  • For replacement only, not to be used in new design
  • Strain gage sensor amplifier
  • ±5 Vdc output
  • ±15 Vdc supply voltage
  • NEMA 4 housing
  • Selectable excitation voltages: 3 V, 5 V, or 10 V @ 70 mA
  • Increases signal-to-noise ratio in noisy environments
  • Effects of voltage drops in excitation sources are eliminated
  • Signals may be sent to the data systems from low impedence sources
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model UBP Universal Bi-Polar In-Line Amplifier Datasheet
application/pdf 246.94 KB
9/2/2021
246.94 KB
Test & Measurement Instrumentation Accessories Datasheet
application/pdf 653.02 KB
9/2/2021
653.02 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model UBP
application/pdf 411.7 KB
9/9/2021
411.7 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
UBP-10 Series Product Photo
application/zip 341.14 KB
9/2/2021
341.14 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

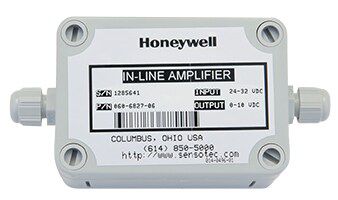

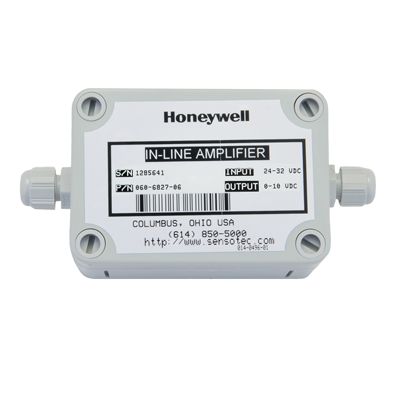

Model UBP-10 Top View
image/png 81.54 KB
9/2/2021
81.54 KB

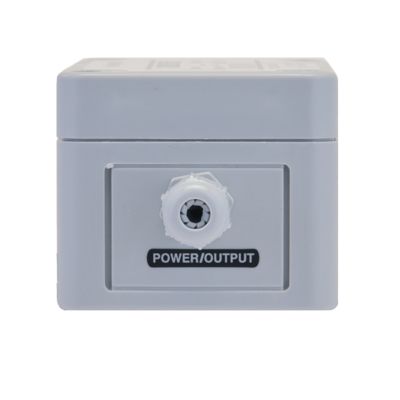

Model UBP-10 Front View
image/png 60.19 KB
9/2/2021
60.19 KB

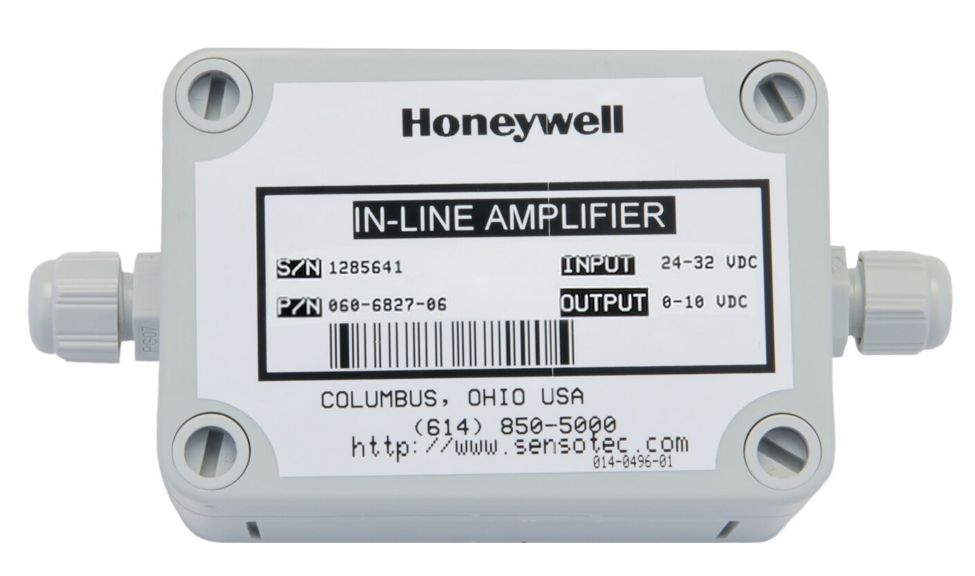

Model UBP_highres_photo
image/jpeg 102.29 KB
9/2/2021
102.29 KB

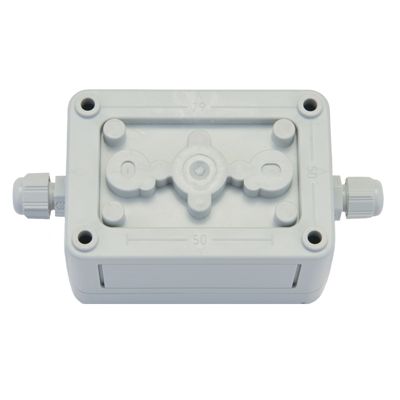

Model UBP-10 Bottom View
