Donut Style Load Cells

Model 3336

Tension/compression. Ranges of 5,000 lb, 10,000 lb & 20,000 lb. ±0.30 %FS accuracy. Fits in tight or limited spaces. Carbon steel

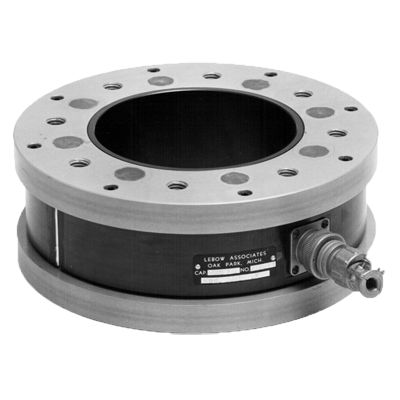

Model 3336 tension/compression donut load cell features a smooth thru-hole design for use in applications which require the load structure to pass through the cell. The hollow load cells are available for tension-compression loads in capacities of 5,000 lb, 10,000 lb and 20,000 lb. The precision design and manufacture of this versatile transducer style is the result of our experience in the metal working industry and automotive application.

Features
  • 5000 lb to 20000 lb range
  • Thru-hole design
  • Compact column construction
  • mV/V output
  • 0.25 % linearity
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 3336 Donut Load Cell Datasheet
application/pdf 313.21 KB
9/2/2021
313.21 KB
