Donut Style Load Cells

Model 3719

Bolt and engine mount force sensor. Compact and high output. Insensitive to bolt and nut applied torque

The bolt force sensor is another unique transducer which is essentially a hollow-compression strain gage load cell. It is designed to be used with most strain gage indicators. The bolt force sensor is a three-piece assembly consisting of: 1. a large hardened and ground flat washer with one side beveled, 2. the sensor, and 3. a small hardened and ground washer. The three pieces are assembled for various applications.

The large washer isolates the sensor from the force application tool. The beveled hole in this washer, which always faces away from the sensor, provides clearance for the bolt head radius. When a torque wrench is used, a torque vs. clamp force curve can be generated. The 3719 bolt force sensor is designed for use in fastener testing where the compression loading of the sensor is induced by the tensile loading of the fastener. The bolt force sensor must be used with the size fastener for which it was designed.

Features
  • Compact
  • High output
  • Standard models for bolts size no. 6 thru 2 in and up to 20 mm
  • Sensor and washers - carpenter 440C stainless steel
  • Sensitive to neither bolt nor nut-applied torque
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 3719 Bolt Force Sensor Datasheet
application/pdf 360.89 KB
9/2/2021
360.89 KB
Test & Measurement Load Accessories Datasheet
application/pdf 525.93 KB
9/2/2021
525.93 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Load Cell Range Guide
application/pdf 1.26 MB
9/2/2021
1.26 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 3719 Product Photo
application/zip 273.11 KB
9/2/2021
273.11 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

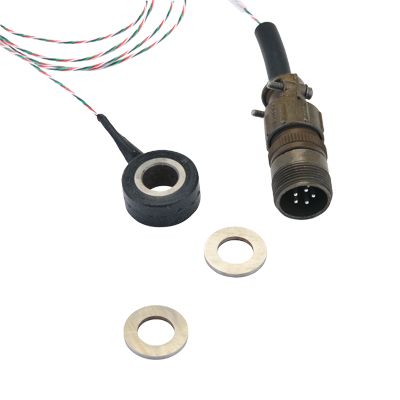

Model 3719 Top View
image/png 87.58 KB
9/2/2021
87.58 KB

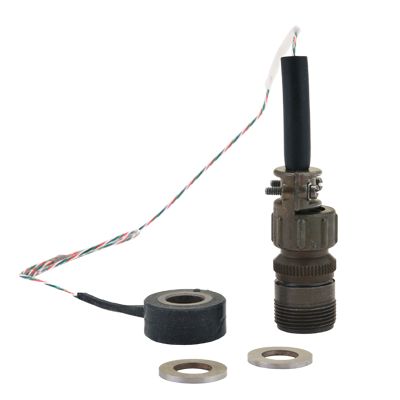

Model 3719 Top Angle View
image/png 74.53 KB
9/2/2021
74.53 KB

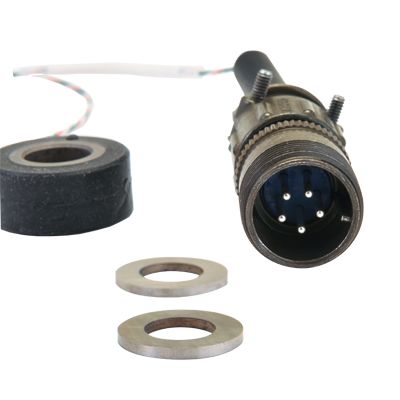

Model 3719 Front View
