In-line Load Cells
Model 3124 Series
Tension/compression inline load cells. 5,000 lb to 25,000 lb capacities. Low deflection at full load

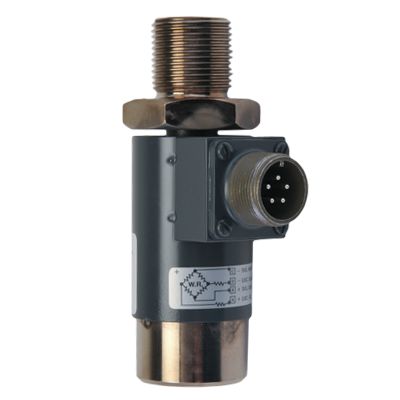

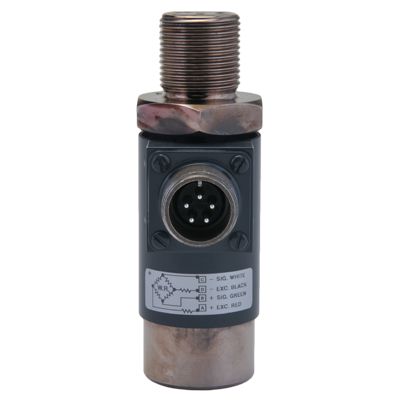

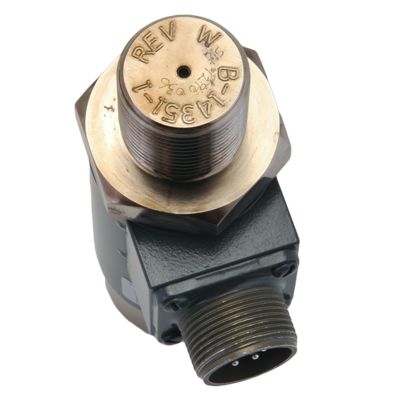

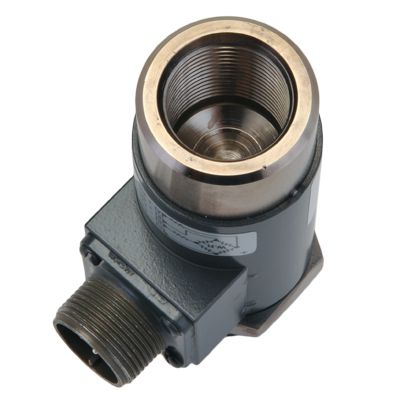

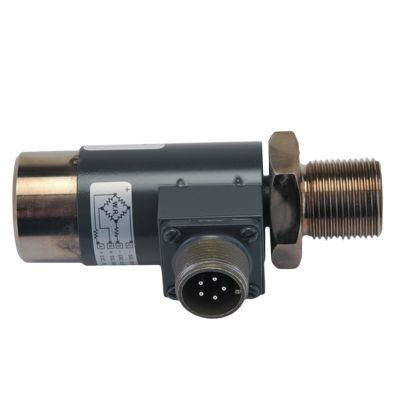

Honeywell carbon steel, tension/compression, in-line load cells offer a small diameter design for mounting into an existing work system with tight spaces or clearances.
Economical and easy to mount, these load cells allow simultaneous testing of multi-element systems and are commonly used in fluid power transfer systems.
They may be directly attached to the piston rod of hydraulic cylinder. The side-mounted cable connectors allow cable assemblies to be supported without affecting movement of the cell during tension or compression loading.
Like what you see, but need a special tweak or a custom design? Contact us to discuss your individual requirements.
- 5000 lb to 25000 lb range
- 0.25 % non-linearity
- 0.15 % hysteresis
- Adapts directly to hydraulic cylinder
- Small diameter allows mounting in restricted areas
- Low deflection
