Low Profile Load Cells

Model 41 Series

Tension/compression precision low profile load cells. 5 lb to 500,000 lb. Full-scale accuracies as low as ±0.13%. Intrinsically safe option avail.

Honeywell all-welded, stainless steel, low profile, pancake load cells feature either bonded foil or foil strain gauge technology measuring loads from 5 lb up to 500,000 lb with accuracies from 0.10 % up to 0.04 %. Choose from compression only or tension/compression models to fit your particular application.

Fatigue-rated models are available that are designed for applications, such as materials or product fatigue testing, which involve an extremely large number of cycles or occasional overload conditions. Select models are also available as intrinsically safe options for use in hazardous locations. Need special modifications or a custom design? Call us to discuss your requirements.

Features
  • 0.1 % accuracy
  • 5 lb to 500000 lb
  • mV/V output (standard): 4 mA to 20 mA and 0 Vdc to 5 Vdc (optional) outputs
  • Double diaphragm design
  • Intrinsically safe available (2N option only)
  • CE approved
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 41 Precision Load Cell Datasheet
application/pdf 522.64 KB
9/2/2021
522.64 KB
Test & Measurement Load Accessories Datasheet
application/pdf 525.93 KB
9/2/2021
525.93 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Load Cell Range Guide
application/pdf 1.26 MB
9/2/2021
1.26 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Oil and Gas Brochure -
application/pdf 3.4 MB
10/25/2022
3.4 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 41 Outline Drawing 50 lb to 1250 lb
application/pdf 38.65 KB
9/2/2021
38.65 KB
Model 41 Outline Drawing 2000 lb to 5000 lb
application/pdf 147.33 KB
9/2/2021
147.33 KB
Model 41 Outline Drawing 20000 lb to 50000 lb
application/pdf 84.28 KB
9/2/2021
84.28 KB
Model 41 Outline Drawing 7500 lb to 15000 lb
application/pdf 91.14 KB
9/2/2021
91.14 KB
Model 41 External Wiring Diagram
application/pdf 16.85 KB
9/2/2021
16.85 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Exploded view diagram of Honeywell sensors and switches in oil rig applications
application/pdf 6.35 MB
9/9/2022
6.35 MB
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Switches and Sensors Solutions for Industrial Applications
application/pdf 2.48 MB
11/25/2021
2.48 MB
Sensors and Switches in Commercial Traction Elevators
application/pdf 2.87 MB
9/2/2021
2.87 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 41 Series Product Photo
application/zip 551 KB
9/2/2021
551 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

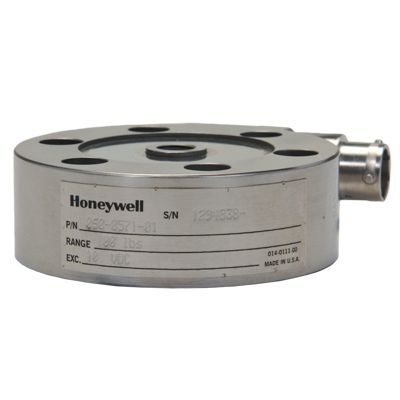

Model 41 Front View
image/png 91.56 KB
9/2/2021
91.56 KB

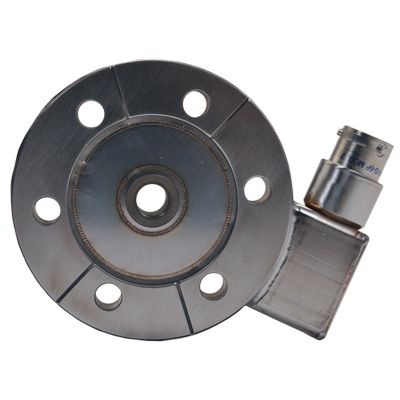

Model 41 Bottom View
image/png 158.2 KB
9/2/2021
158.2 KB

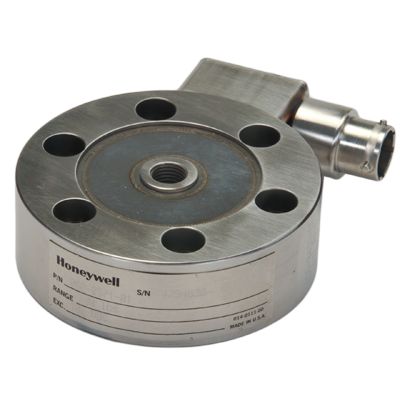

Model 41 Top Angle View
image/png 148.73 KB
9/2/2021
148.73 KB
Model 41 Top View
image/png 154.89 KB
9/2/2021
154.89 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 41 Front View
91.56 KB
9/2/2021
91.56 KB
Model 41 Outline Drawing 50 lb to 1250 lb
38.65 KB
9/2/2021
38.65 KB
Exploded view diagram of Honeywell sensors and switches in oil rig applications
6.35 MB
9/9/2022
6.35 MB
Aerospace Test and Measurement Capabilities
1.95 MB
9/2/2021
1.95 MB
Load Cell Range Guide
1.26 MB
9/2/2021
1.26 MB
Model 41 Outline Drawing 2000 lb to 5000 lb
147.33 KB
9/2/2021
147.33 KB
Model 41 Precision Load Cell Datasheet
522.64 KB
9/2/2021
522.64 KB
Model 41 Bottom View
158.2 KB
9/2/2021
158.2 KB
Model 41 Outline Drawing 20000 lb to 50000 lb
84.28 KB
9/2/2021
84.28 KB
Oil and Gas Brochure -
3.4 MB
10/25/2022
3.4 MB
Switches and Sensors Solutions for Industrial Applications
2.48 MB
11/25/2021
2.48 MB
Sensors and Switches in Commercial Traction Elevators
2.87 MB
9/2/2021
2.87 MB
Model 41 Outline Drawing 7500 lb to 15000 lb
91.14 KB
9/2/2021
91.14 KB
Model 41 Top Angle View
148.73 KB
9/2/2021
148.73 KB
Model 41 Top View
154.89 KB
9/2/2021
154.89 KB
Test & Measurement Load Accessories Datasheet
525.93 KB
9/2/2021
525.93 KB
Model 41 External Wiring Diagram
16.85 KB
9/2/2021
16.85 KB
Model 41 Series Product Photo
551 KB
9/2/2021
551 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 41 Precision Load Cell Datasheet
522.64 KB
9/2/2021
Test & Measurement Load Accessories Datasheet
525.93 KB
9/2/2021
Load Cell Range Guide
1.26 MB
9/2/2021
Oil and Gas Brochure -
3.4 MB
10/25/2022
Model 41 Outline Drawing 50 lb to 1250 lb
38.65 KB
9/2/2021
Model 41 Outline Drawing 2000 lb to 5000 lb
147.33 KB
9/2/2021
Model 41 Outline Drawing 20000 lb to 50000 lb
84.28 KB
9/2/2021
Model 41 Outline Drawing 7500 lb to 15000 lb
91.14 KB
9/2/2021
Model 41 External Wiring Diagram
16.85 KB
9/2/2021
Exploded view diagram of Honeywell sensors and switches in oil rig applications
6.35 MB
9/9/2022
Aerospace Test and Measurement Capabilities
1.95 MB
9/2/2021
Switches and Sensors Solutions for Industrial Applications
2.48 MB
11/25/2021
Sensors and Switches in Commercial Traction Elevators
2.87 MB
9/2/2021
Model 41 Series Product Photo
551 KB
9/2/2021
Model 41 Front View
91.56 KB
9/2/2021
Model 41 Bottom View
158.2 KB
9/2/2021
Model 41 Top Angle View
148.73 KB
9/2/2021
Model 41 Top View
154.89 KB
9/2/2021
SKU
Description
alt
060-0571-01
Model 41 Load Cell:, 100 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0571-04
Model 41 Load Cell:, 50 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0571-06
Model 41 Load Cell:, 1,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0571-07
Model 41 Load Cell:, 500 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0572-01
Model 41 Load Cell:, 2,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0572-05
Model 41 Load Cell:, 5,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0573-01
Model 41 Load Cell:, 50,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Amphenol MS3102A-14S-6P electrical connector, horizontal electrical exit orientation
alt
060-0573-02
Model 41 Load Cell:, 20,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Amphenol MS3102A-14S-6P electrical connector, horizontal electrical exit orientation
alt
060-0574-03
Model 41 Load Cell:, 10,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Amphenol MS3102A-14S-6P electrical connector, horizontal electrical exit orientation
SKU
Description
alt
060-0571-01
Model 41 Load Cell:, 100 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0571-04
Model 41 Load Cell:, 50 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0571-06
Model 41 Load Cell:, 1,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0571-07
Model 41 Load Cell:, 500 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0572-01
Model 41 Load Cell:, 2,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0572-05
Model 41 Load Cell:, 5,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Bendix PTIH-10-6P electrical connector, horizontal electrical exit orientation
alt
060-0573-01
Model 41 Load Cell:, 50,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Amphenol MS3102A-14S-6P electrical connector, horizontal electrical exit orientation
alt
060-0573-02
Model 41 Load Cell:, 20,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Amphenol MS3102A-14S-6P electrical connector, horizontal electrical exit orientation
alt
060-0574-03
Model 41 Load Cell:, 10,000 lb, 15°C to 70°C [60°F to 160°F] temperature compensation, non-amplified (mV/V), Amphenol MS3102A-14S-6P electrical connector, horizontal electrical exit orientation
