Miniature Load Cells

Model 53 Series

Low cost miniature load cells. 5 lb to 50,000 lb capacities. Stainless steel diaphragm design

Honeywell miniature load cells are designed to fit into systems with limited space or tight clearances. Model 53 bonded, foil strain gauge transducers are designed for cost efficient production and testing applications (e.g., press calibration). Able to measure compression force up to 50,000 lb or 200,000 N, this model achieves a maximum non-linearity of 0.25 % full scale.

Precision gauging techniques and stainless steel construction provides excellent long-term stability and reliability under severe operating conditions. If you need special modifications or a complete custom design to meet your unique requirements, please contact us.

Features
  • 5 lb to 50K lb
  • Stainless steel
  • Mini footprint
  • Button-style design
  • mV/V output
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 53 Economical Load Cell Datasheet
application/pdf 391.09 KB
9/2/2021
391.09 KB
Test & Measurement Load Accessories Datasheet
application/pdf 525.93 KB
9/2/2021
525.93 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Load Cell Range Guide
application/pdf 1.26 MB
9/2/2021
1.26 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Oil and Gas Brochure -
application/pdf 3.4 MB
10/25/2022
3.4 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 53 Outline Drawing - 50k lb
application/pdf 202.28 KB
9/2/2021
202.28 KB
Model 53 Outline Drawing - 200 lb to 2500 lb
application/pdf 65.19 KB
9/2/2021
65.19 KB
Model 53 Outline Drawing - 15k lb to 30k lb
application/pdf 66.44 KB
9/2/2021
66.44 KB
Model 53 External Wiring Diagram
application/pdf 13.36 KB
9/2/2021
13.36 KB
Model 53 Outline Drawing - 3k lb to 12.5k lb
application/pdf 36.71 KB
9/2/2021
36.71 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 53 Series Product Photo
application/zip 247.16 KB
9/2/2021
247.16 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

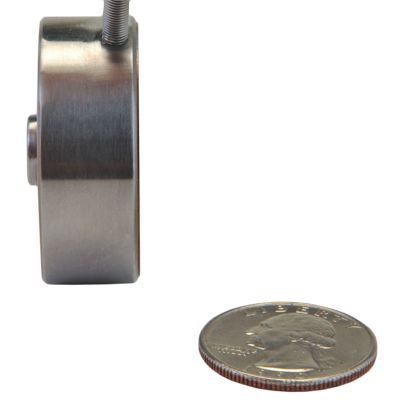

Model 53 Side View
image/png 87.38 KB
9/2/2021
87.38 KB

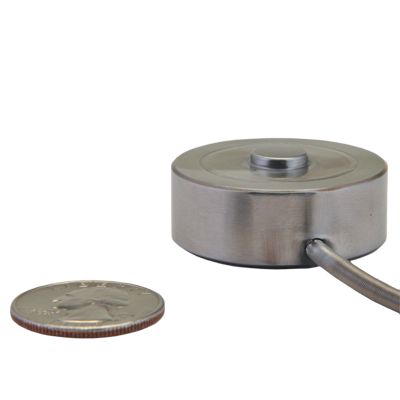

Model 53 Front View
image/png 70.51 KB
9/2/2021
70.51 KB

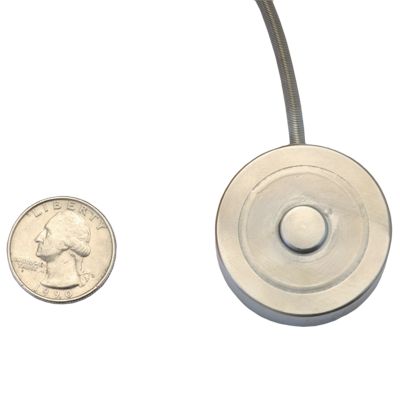

Model 53 Top View
