Subminiature Load Cells

Model 13 Series

Subminiature compression load cells. Capacities from 150 g to 1,000 lb. ±0.8% full-scale accuracy. Stainless steel, single diaphragm design

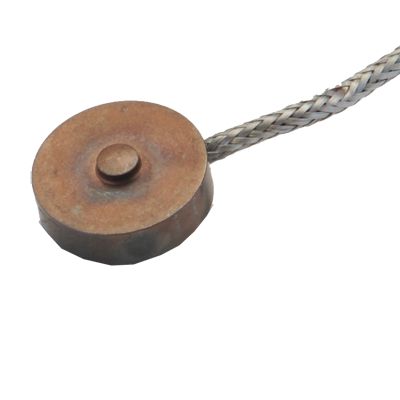

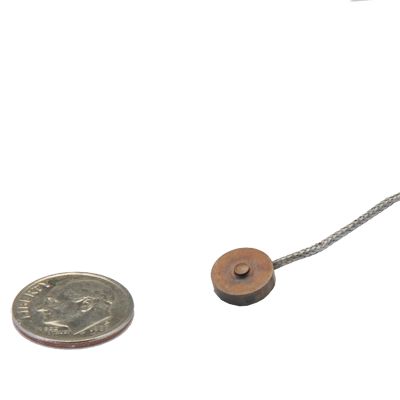

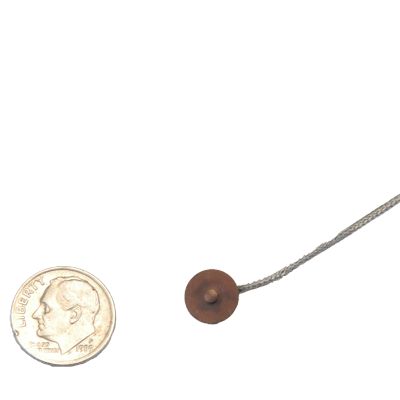

The Model 13 (compression only) subminiature load cell is designed to measure load ranges from 150 grams to 1,000 lbs. With subminiature dimensions, including diameters from 0.38 in to 0.75 in and heights of 0.13 in to 0.25 in, these units are easily incorporated into systems having limited space. Model 13 combines high-frequency response and low deflection to achieve a combined non-linearity and hysteresis of 0.25 % to 0.5 % full scale. A balance module is included in the load cell̵7:s lead wire cable for temperature compensation and should not be removed.

Features
  • 150 g to 1000 lb
  • 0.7 % accuracy
  • mV/V output
  • Subminiature design
  • Single diaphragm construction
