Long Stroke LVDTs

Model JEC-AG Series

dc-dc long stroke displacement transducers. Captive guided spring return armature. ±0.5 in to ±3.0 in ranges. ±0.25% F.S. non-linearity

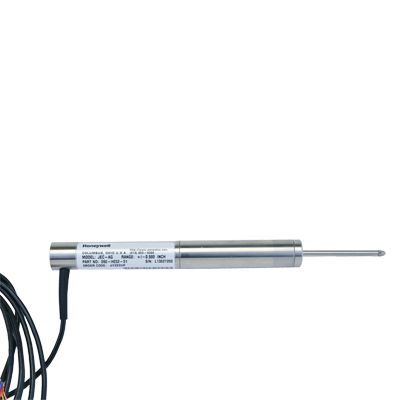

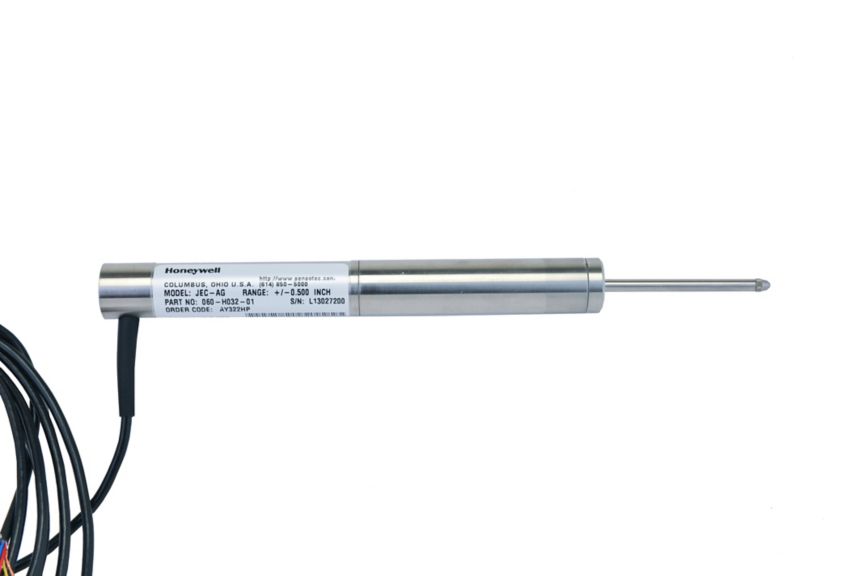

Model JEC-AG DC-DC Long Stroke Displacement Transducer with captive guided spring return armature, ranges from ± 0.5 to ± 3.0 in and an accuracy of ± 0.25% of full scale. Output of either ± 5 vdc or 0 to 10 vdc with supply that can operate with either a dual power supply of ± 12 vdc to ± 20 vdc or a single power supply of 24 to 40 vdc. Unit can operate from a temperature of -58°F to +176°F and is constructed with a stainless steel body and has a 6 ft long multiconductor shielded cable.

Features
  • Stainless steel construction
  • Enhanced life cycle
  • Voltage regulation
  • Reverse polarity protected
  • Single or dual supply wiring (field selectable)
  • Captive guided spring return armature
