Short Stroke LVDTs

Model PLVX Series

ac-ac short stroke displacement transducers. Captive guided spring return armature. ±0.02 in to ±0.20 in ranges. ±0.25% F.S. non-linearity

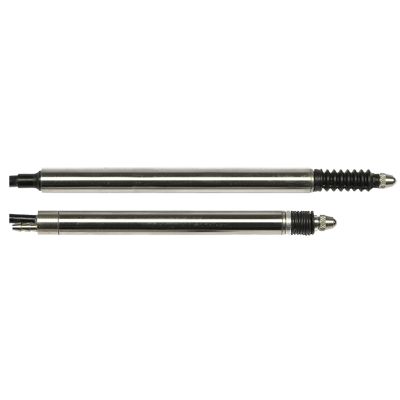

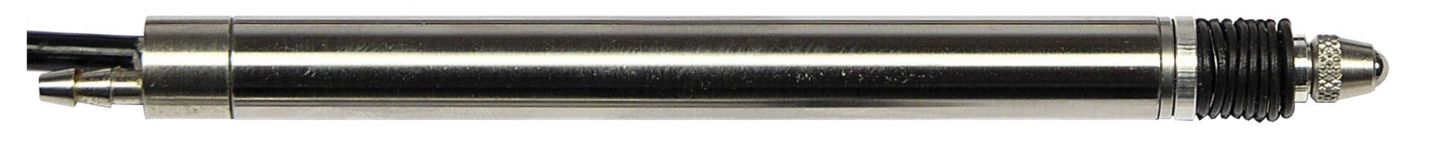

Model PLVX AC-AC Miniature Displacement Transducer with captive guided spring return armature, ranges from ± 0.02 to ± 0.20 in and an accuracy of ± 0.25% of full scale. Outputs ranging from 4 mV/V/0.001in to 6 mV/V/0.001 in depending on the stroke length. Supply that can operate from either a 5 vdc calibrated power supply or a 1 V to 7 V RMS acceptable power supply. Unit can operate from a temperature of -40°F to +212°F and is constructed with a stainless steel body and has multi-conductor shielded cable.

Features
  • Miniature design
  • 0.25 % non-linearity
  • Rugged, enhanced accuracy
  • Enhanced immunity to electrical noise
  • ±0.02 in to ±0.2 in range
  • -58 °F to 257 °F operating range (standard)
  • Non-rotating probe
  • Stainless steel construction
  • Extended life cycle
  • Infinite resolution
  • Captive guided spring return armature
  • Not RoHS compliant
