Short Stroke LVDTs

Model S3C Series

dc-dc long stroke displacement transducers. Captive guided spring return armature. ±0.1 in to ±0.4 in ranges. ±0.25% F.S. non-linearity

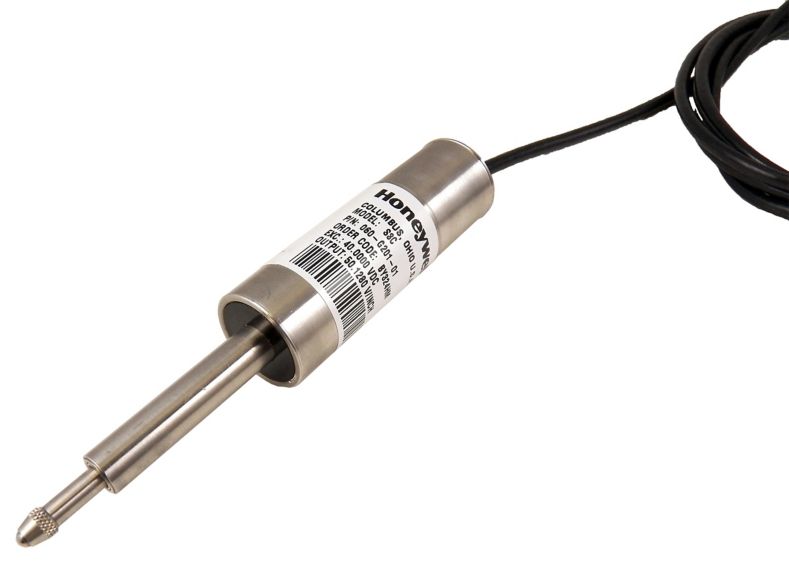

Model S3C DC-DC Miniature Displacement Transducer with captive guided spring return armature, ranges of ± 0.1 in to ± 0.4 in and accuracy of ± 0.25 % of full scale. Output of either ± 5 Vdc or 0 to 10 Vdc with supply that can operate with either a dual power supply of ± 12 Vdc to ± 20 Vdc or a single power supply of 24 Vdc to 40 Vdc. Unit can operate from a temperature of -58 °F to +158 °F and is constructed with a stainless steel body and has a 6 ft long multi-conductor shielded cable.

Features
  • Miniature design
  • Cost efficient
  • 0.25 % non-linearity
  • Stainless steel construction
  • ±0.1 in to ±0.4 in range
  • Infinite resolution
  • Single or dual supply wiring (field selectable)
  • Captive guided spring return armature
  • Not RoHS compliant
