Short Stroke LVDTs

Model S5 Series

ac-ac short stroke displacement transducers. Captive guided spring return armature. ± 0.10 in to ± 0.50 in ranges. ±0.25% F.S. non-linearity

Model S-5 AC-AC Miniature Displacement Transducer with captive guided spring return armature, ranges from ±0.01 in to ±0.50 in and an accuracy of ±0.25% of full scale. Outputs ranging from 2 mV/V/0.001 in to 4 mV/V/0.001 in depending on the stroke length. Supply that can operate from either a 5 Vdc calibrated power supply or a 1 V to 7 V RMS acceptable power supply. Unit can operate from a temperature of -4°F to +257°F and is constructed with a stainless steel body and has multiconductor shielded cable.

Features
  • Miniature design
  • 0.25 % non-linearity
  • Rugged, enhanced accuracy
  • Enhanced immunity to electrical noise
  • ±0.01 in to ±0.5 in range
  • -58 °F to 257 °F operating range (standard)
  • Non-rotating probe
  • Stainless steel construction
  • Extended life cycle
  • Infinite resolution
  • Captive guided spring return armature
  • Not RoHS compliant
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
LVDT Accessories Datasheet
application/pdf 277.53 KB
9/2/2021
277.53 KB
Test & Measurement Model S5 AC-AC Short-Stroke LVDT Datasheet
application/pdf 303.26 KB
9/2/2021
303.26 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model S5 Wiring Diagram
application/pdf 27.13 KB
9/2/2021
27.13 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model S5 Series Product Photo
application/zip 201.21 KB
9/2/2021
201.21 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model S5 lowres photo
image/jpeg 9.64 KB
9/2/2021
9.64 KB

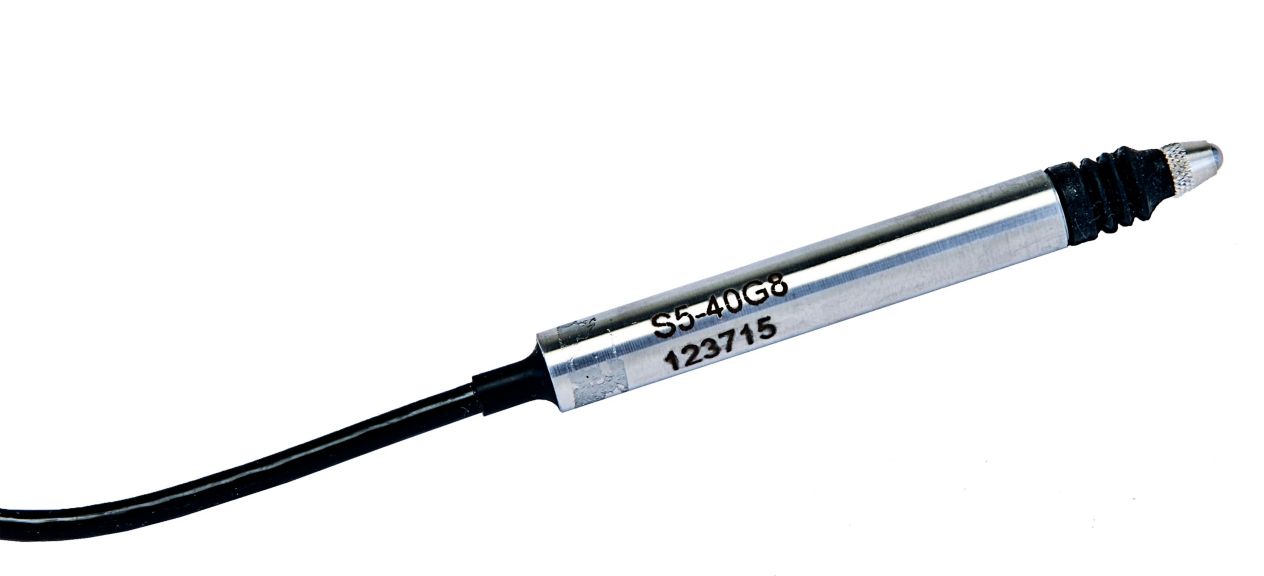

Model S5 highres photo
image/jpeg 103.98 KB
9/2/2021
103.98 KB

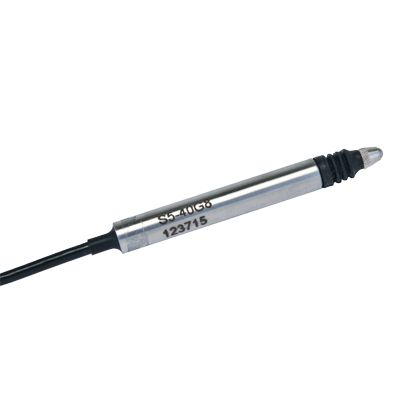

Model S5 Angle View
image/png 39.33 KB
9/2/2021
39.33 KB

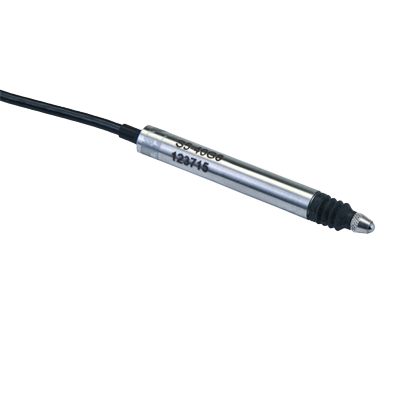

Model S5 Front View
image/png 33.73 KB
9/2/2021
33.73 KB

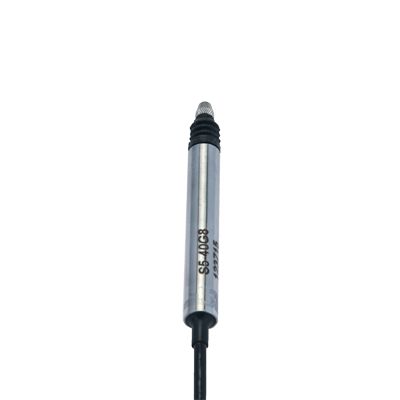

Model S5 Top View
image/png 23.83 KB
9/2/2021
23.83 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
LVDT Accessories Datasheet
277.53 KB
9/2/2021
277.53 KB
Model S5 Series Product Photo
201.21 KB
9/2/2021
201.21 KB
Model S5 lowres photo
9.64 KB
9/2/2021
9.64 KB
Model S5 highres photo
103.98 KB
9/2/2021
103.98 KB
Test & Measurement Model S5 AC-AC Short-Stroke LVDT Datasheet
303.26 KB
9/2/2021
303.26 KB
Model S5 Angle View
39.33 KB
9/2/2021
39.33 KB
Model S5 Wiring Diagram
27.13 KB
9/2/2021
27.13 KB
Model S5 Front View
33.73 KB
9/2/2021
33.73 KB
T&M Overview Brochure
428.72 KB
9/2/2021
428.72 KB
Model S5 Top View
23.83 KB
9/2/2021
23.83 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
LVDT Accessories Datasheet
277.53 KB
9/2/2021
Test & Measurement Model S5 AC-AC Short-Stroke LVDT Datasheet
303.26 KB
9/2/2021
T&M Overview Brochure
428.72 KB
9/2/2021
Model S5 Wiring Diagram
27.13 KB
9/2/2021
Model S5 Series Product Photo
201.21 KB
9/2/2021
Model S5 lowres photo
9.64 KB
9/2/2021
Model S5 highres photo
103.98 KB
9/2/2021
Model S5 Angle View
39.33 KB
9/2/2021
Model S5 Front View
33.73 KB
9/2/2021
Model S5 Top View
23.83 KB
9/2/2021
SKU
Description
alt
060-K061-01
Model S5 Displacement Transducer, ac/ac miniature LVDT, ±5,08 mm [±0.20 in] range, ball-ended probe, captive guided spring return
SKU
Description
alt
060-K061-01
Model S5 Displacement Transducer, ac/ac miniature LVDT, ±5,08 mm [±0.20 in] range, ball-ended probe, captive guided spring return
