Digital Gauges

Model JH

Digital pressure gauge. High pressure grade. 15000 psi to 60000 psi. 0.2% FS accuracy. 15-5 PH Stainess steel wetted material

Using high pressure autoclave fittings, the Series JH digital pressure test gauge with 0.2 % full scale accuracy uses transducer technology and is manufactured from 15-5 PH Stainess Steel wetted material for high over pressure protection. The transducer technology provides enhanced accuracy over the entire pressure range.

The JH has no moving parts and thus, may provide a long life with fewer re-calibrations. The stainless steel NEMA construction also provides EMI and RFI protection. The JH provides high resolution with an easy to read digital display. There are no operator errors due to interpolation of hash marks or parallax errors. The units can be scaled to read in various engineering units. PSI pressures are read x 10 with the 4½-digit display.

The Model JHB provides a 4 mA to 20 mA, two-wire output. The Model JHE provides a 0 Vdc to 5 Vdc output. The Model JHR has two programmable limits and relays with no analog output. The Model JHX provides a 0 Vdc to 5 Vdc output with two programmable limits and relays for process control or alarm indication. The Model JHW is powered by one or two common 9 V alkaline batteries. The Model JHT is powered by a 110 Vac adapter. The JHV, JHB, JHE, JHR and JHX models are powered by an 11 Vdc to 32 Vdc power supply.

Each unit has a membrane face with raised buttons and tactile feedback for setup and operation. The high, low, and clear but­tons are easily accessible on this front membrane. Zero adjust­ment and zero offset/tare functions are standard on each unit. Calibration and setup parameters are stored on a memory chip to protect from loss even when power is interrupted. Unauthorized set ups and calibrations are also blocked with internal security. Various combinations of the front panel buttons can be deactivated.

Features
  • Pressure ranges from 15000 psi to 60000 psi gage
  • Two programmable limits and relays (optional)
  • Accuracy - 0.2 % full scale
  • High and low detection - Microprocessor based
  • 4 mA to 20 mA (two-wire) and 0 Vdc to 5 Vdc analog outputs (optional)
  • Customer recalibration
  • 4½ digit display with 0.5 in height
  • Zero offset/tare
  • On/off switch disable feature
  • Two programmable limits and relays (optional)
  • NEMA 4 rating (optional)
  • NIST statement (standard)
  • NIST traceable (optional)
  • Optional carrying case and panel mounting ring
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model JH High Pressure Digital Gauge Datasheet
application/pdf 313.52 KB
9/2/2021
313.52 KB
Pressure Accessories Datasheet
application/pdf 384.51 KB
9/2/2021
384.51 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Pressure Transducer Range Guide
application/pdf 1.03 MB
9/2/2021
1.03 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model JH External Wiring Diagram - T Power Code
application/pdf 90.24 KB
9/2/2021
90.24 KB
Model JH External Wiring Diagram - R Power Code
application/pdf 58.28 KB
9/2/2021
58.28 KB
Model JH External Wiring Diagram - W Power Code
application/pdf 80.86 KB
9/2/2021
80.86 KB
Model JH External Wiring Diagram - E Power Code
application/pdf 46.45 KB
9/2/2021
46.45 KB
Model JH External Wiring Diagram - B Power Code
application/pdf 102.88 KB
9/2/2021
102.88 KB
Model JH External Wiring Diagram - X Power Code
application/pdf 58.43 KB
9/2/2021
58.43 KB
Model JH External Wiring Diagram - V Power Code
application/pdf 46.45 KB
9/2/2021
46.45 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model JH Product Photo
application/zip 1017.97 KB
9/2/2021
1017.97 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

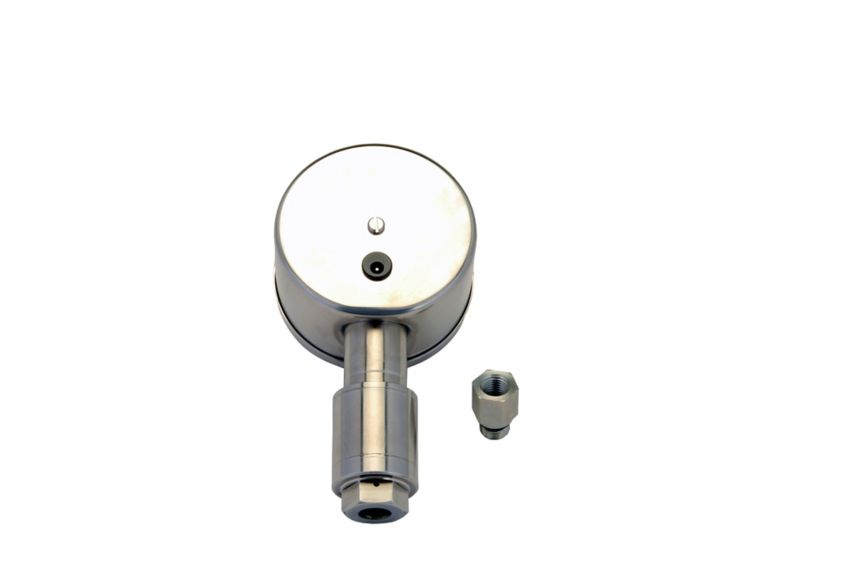

Model JH Bottom View
image/jpeg 190.47 KB
9/2/2021
190.47 KB

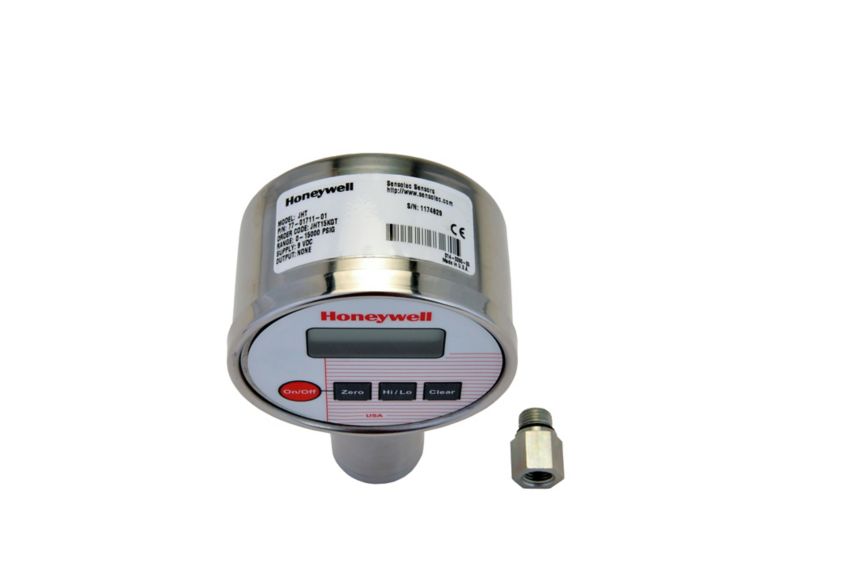

Model JH Top View
image/jpeg 279.51 KB
9/2/2021
279.51 KB

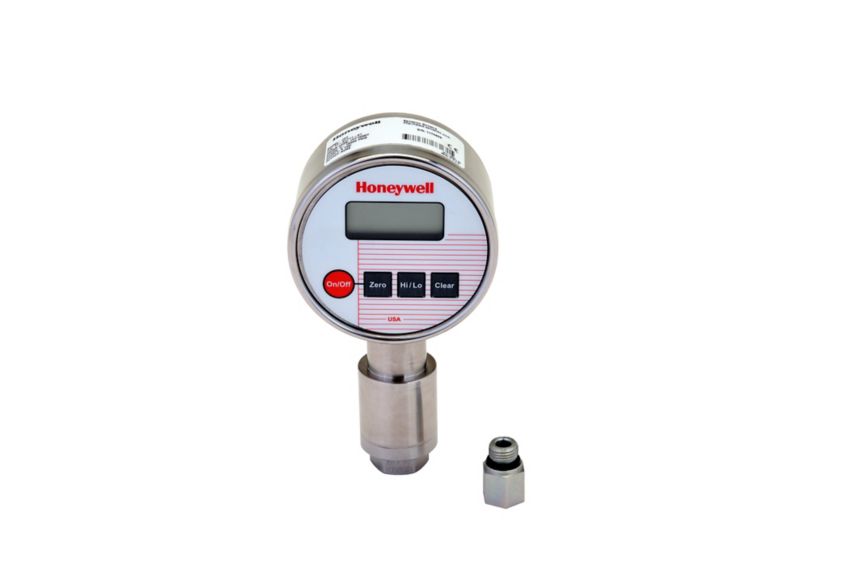

Model JH Top Angle View
image/jpeg 225.38 KB
9/2/2021
225.38 KB

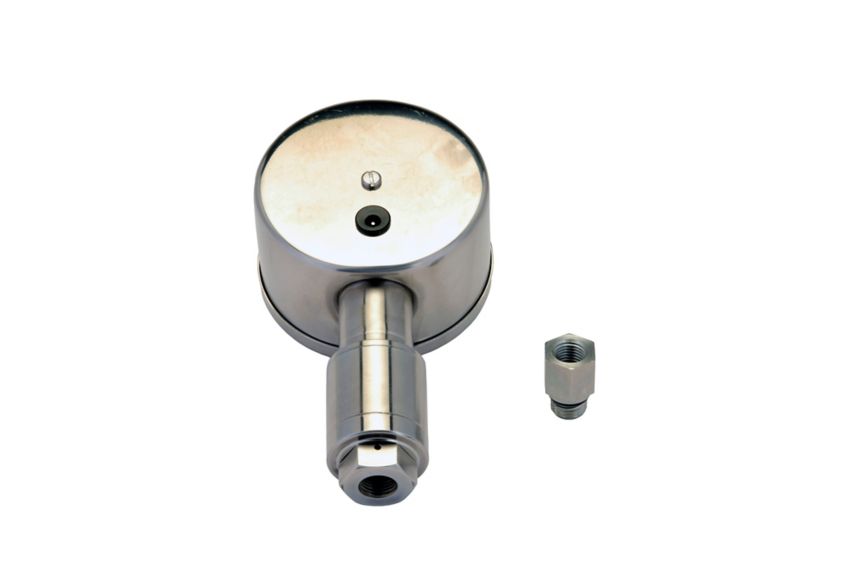

Model JH Bottom Angle View
image/jpeg 232.25 KB
9/2/2021
232.25 KB

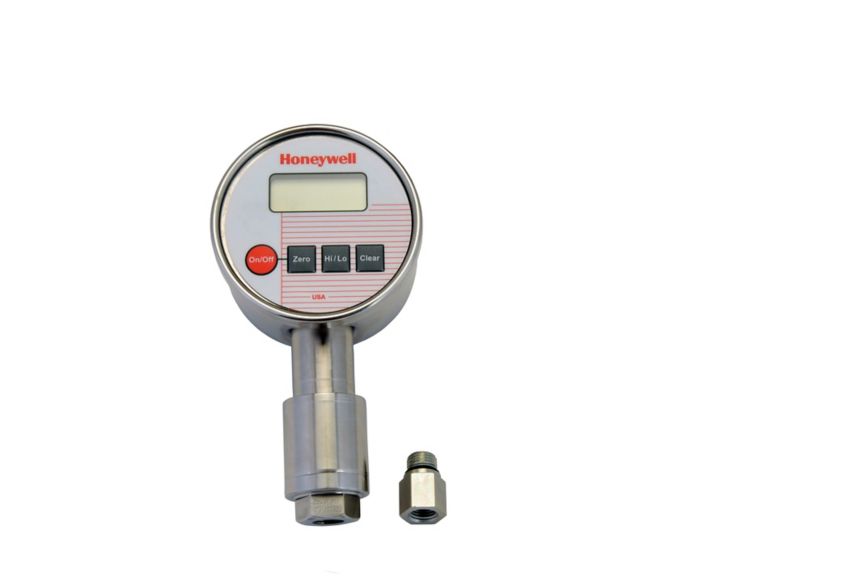

Model JH Front View
