Digital Gauges

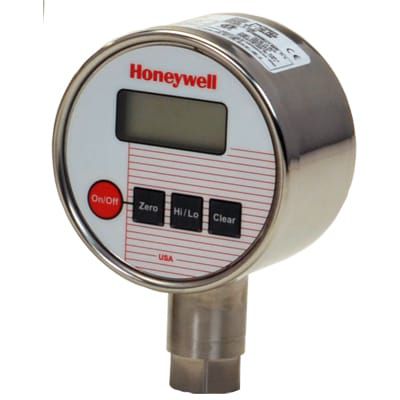

Model JK

Digital pressure gauge. General purpose grade. 1 psi to 10000 psi. 0.2% FS accuracy. Stainless steel wetted material

The Series JK digital pressure test gauge with 0.2 % full scale accuracy uses transducer technology and is manufactured from Ha C276/316 Stainless Steel wetted material for ranges up to 1,500 psi or 15-5 PH Stainless Steel wetted material for ranges 1,500 psi and above for high overpressure protection.

The transducer technology provides enhanced accuracy over the entire pressure range. The JK has no moving parts and thus, may provide a long life with fewer re-calibrations. The stainless steel NEMA construction also provides EMI and RFI protection. The JK provides high resolution with an easy to read digital display. There are no operator errors due to interpolation of hash marks or parallax errors.

The Model JKW is powered by one or two common 9 V alkaline batteries. The Model JKT is powered by a 110 Vac adapter. The Model JKV is powered by an 11 Vdc to 32 Vdc power supply. Each unit has a membrane face with raised buttons and tactile feedback for setup and operation. The high, low, and clear but­tons are easily accessible on this front membrane.

Zero adjustment and zero offset/tare functions are standard on each unit. Calibration and setup parameters are stored on a memory chip to protect from loss even when power is interrupted. Unauthor­ized set ups and calibrations are also blocked with internal security. Various combinations of the front panel buttons can be deactivated.

Features
  • Ranges to 10000 psi
  • 0.2 % accuracy
  • Field selectable engineering units
  • Available -18 °C to 82 °C [0 °F to 180 °F] operating temperature
  • Stainless steel construction
  • 4½ digit display with 0.5 in height
  • Customer recalibration
  • 9 V battery power
  • High/low capture and store
  • On/off switch
  • CE compliant (certain models, consult factory)
  • Optional carrying case and panel mounting ring
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model JK Digital Pressure Gauge Datasheet
application/pdf 261.91 KB
9/2/2021
261.91 KB
Pressure Accessories Datasheet
application/pdf 384.51 KB
9/2/2021
384.51 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Pressure Transducer Range Guide
application/pdf 1.03 MB
9/2/2021
1.03 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model JK External Wiring Diagram - W Power Code
application/pdf 80.86 KB
9/2/2021
80.86 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model JK Product Photo
application/zip 643.57 KB
9/2/2021
643.57 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model JK Side Angle View
image/jpeg 15.81 KB
9/2/2021
15.81 KB

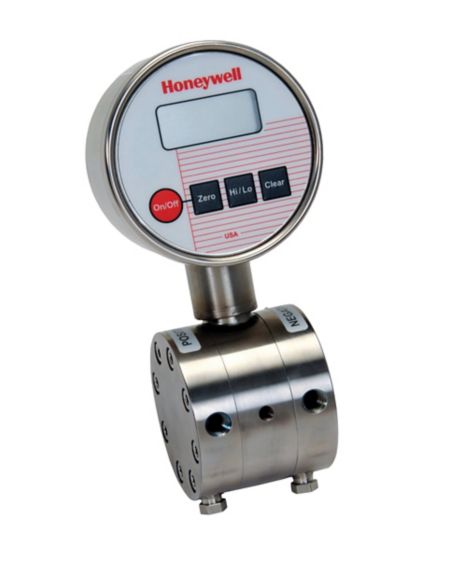

Model JK Front View
image/jpeg 177.14 KB
9/2/2021
177.14 KB

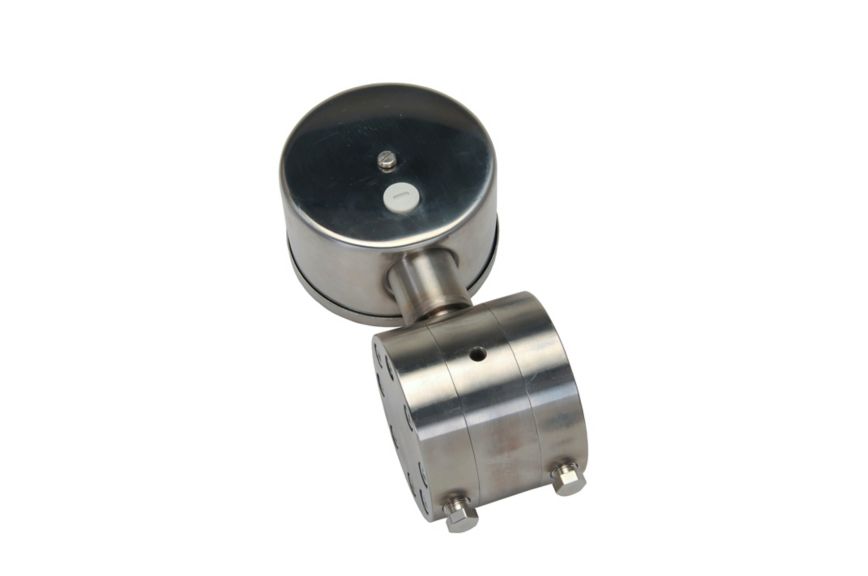

Model JK Bottom View
image/jpeg 257.01 KB
9/2/2021
257.01 KB

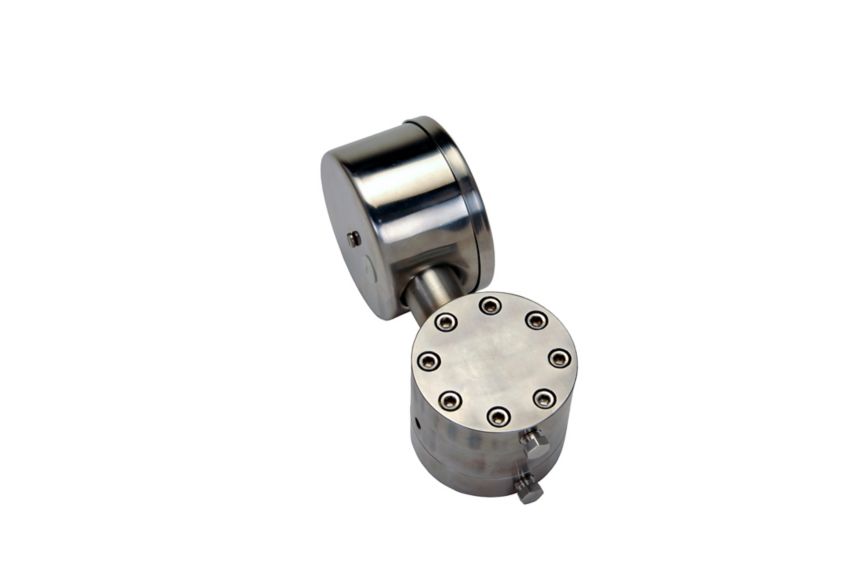

Model JK Side View
