Digital Gauges

Model LK

Digital force indicator. 4 1/2 digit display. ±0.25 % & ±0.30 %FS accuracy. Range of 1 lb to 10,000 lb. Tension/compression. Male thread attachments.

The Model LK Digital Force Indicator is a highly portable force measurement device. With its 9 V battery supply and compact size the indicator can easily be carried to remote locations to perform force measurement calibrations. The unit can measure forces in tension and compression over ranges up to 10000 lb. The peak capture feature allows the highest force reading taken to be displayed with the push of a button.

The remote location of the load sensor minimizes the chance of damage to the electronic body of the gauge. The stainless steel construction of the sensor and the indicator also make them resistant to the occasional mishandling than can occur in the field. Optional handles are available for the load cell and gauge. Each unit has a membrane face with raised buttons and tactile feedback for setup and operation.

The high, low, and clear buttons are easily accessible on this front membrane. Zero adjustment and zero offset/tare functions are standard on each unit. Calibration and setup parameters are stored on a memory chip to protect from loss even when power is interrupted. Unauthorized set ups and calibrations are also blocked with internal security. Various combinations of the front panel buttons can be de-activated.

Features
  • Ranges to 10000 lb
  • Tension and compression measurement
  • High and low force capture
  • Zero offset/tare
  • NIST traceable
  • Optional carrying case and panel mounting ring
  • Optional NEMA 4 rating
  • Field selectable engineering units (lb, N, kN, g, kg)
  • Customer recalibration
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model LK Digital Force Indicator Datasheet
application/pdf 203.22 KB
9/2/2021
203.22 KB
Test & Measurement Load Accessories Datasheet
application/pdf 525.93 KB
9/2/2021
525.93 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Load Cell Range Guide
application/pdf 1.26 MB
9/2/2021
1.26 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model LK Product Photo
application/zip 328.2 KB
9/2/2021
328.2 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

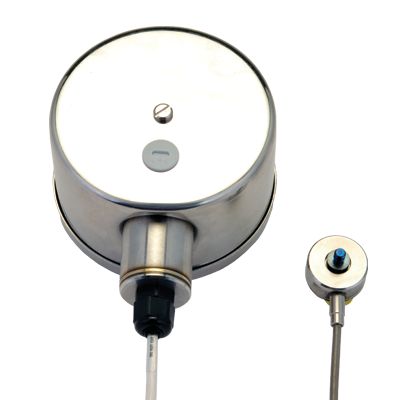

Model LK Bottom View
image/png 84.63 KB
9/2/2021
84.63 KB

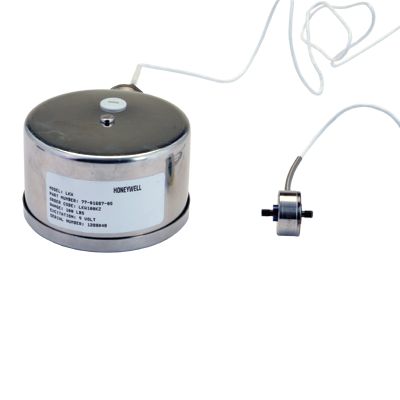

Model LK Top Angle View
image/png 79.01 KB
9/2/2021
79.01 KB

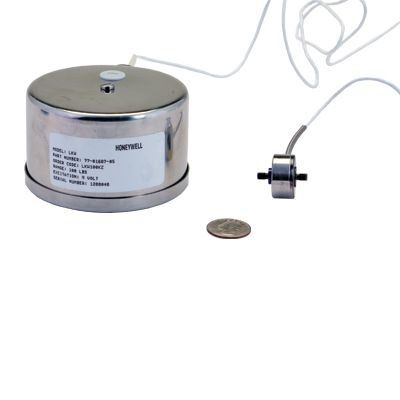

Model LK Top View
image/png 72.67 KB
9/2/2021
72.67 KB

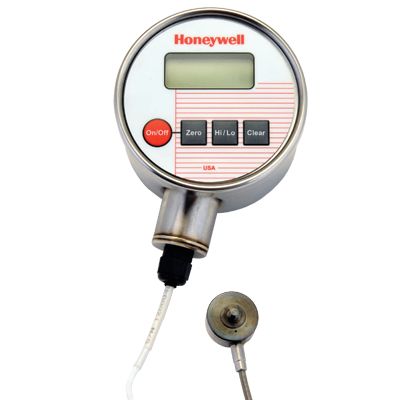

Model LK Front View
