Digital Output Pressure Transducers

Model DS

Digital output pressure transducers. 5 psig/a to 2500 psig/a. 1200 Hz Analog Response. 380 Reading/Second Digital Output. 0.1 % Accuracy

The Model DS offers the ̶0:smart̶1: combination of microprocessor-based, internal signal conditioning and micromachined silicon pressure sensor technology to provide digital communications directly to your PC with superior accuracy and stability. With <1 ms step response on the analog output and >300 readings/second on the digital output, the Model DS provides the speed required for dynamic automotive or aerospace applications. With an all-welded Ha C276/ 316 Stainless Steel construction, the Model DS is suitable for rugged environments and pressure media compatible with Ha C276/ 316 Stainless Steel.

Features
  • 0.1 % total error band (includes temperature)
  • 1200 Hz analog response
  • Gage and absolute designs available
  • All-welded stainless steel construction
  • Selectable RS-232 or RS-485
  • 380 readings/second digital output
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model DS Digital Pressure Transducer Datasheet
application/pdf 236.78 KB
9/2/2021
236.78 KB
Pressure Accessories Datasheet
application/pdf 384.51 KB
9/2/2021
384.51 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Pressure Transducer Range Guide
application/pdf 1.03 MB
9/2/2021
1.03 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model DS External Wiring Diagram - RS 232
application/pdf 164.96 KB
9/2/2021
164.96 KB
Model DS External Wiring Diagram - RS 485
application/pdf 13.27 KB
9/2/2021
13.27 KB
Model DS Outline Drawing - Absolute RS-232
application/pdf 162.64 KB
9/2/2021
162.64 KB
Model DS Outline Drawing - Absolute RS-485
application/pdf 60.66 KB
9/2/2021
60.66 KB
Model DS Outline Drawing - Gage RS-485
application/pdf 160.09 KB
9/2/2021
160.09 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model DS Product Photo
application/zip 184.22 KB
9/2/2021
184.22 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

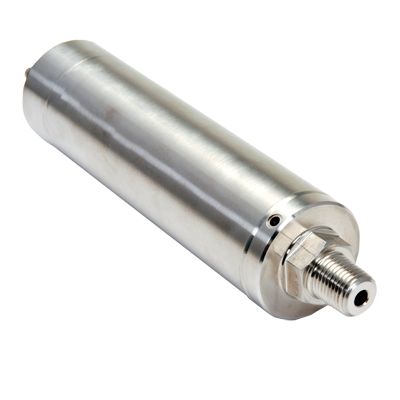

Model DS Front View
image/png 94.14 KB
9/2/2021
94.14 KB

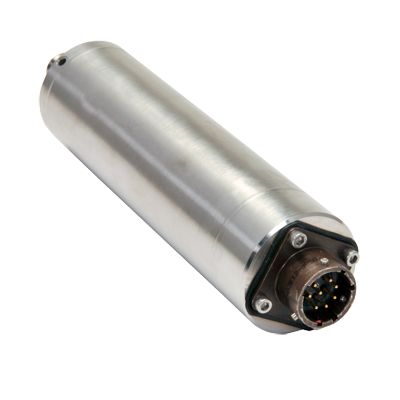

Model DS Bottom View
