Flush Pressure Transducers

Model A-105

Flush diaphragm pressure transducers. 100 psi to 15,000 psi. 0.50 % full-scale accuracy

The Model A-105 gauge pressure transducers are manufactured with a unitized 17-4 PH stainless steel, wetted diaphragm. The advantage of this type of design is that a thin diaphragm and heavy sidewalls are made from one piece of stainless steel. This unitized diaphragm is rugged, but at the same time, can be made thin enough to measure low pressures.

Available pressure ranges span from 100 psig to 15,000 psig. These models can be used in corrosive fluid environments. The Model A-105 has welded electrical connectors as an integral part of the transducer body and recommended for applications involving rough handling, or where an all-welded, stainless steel transducer is required. All units have four (4) active bonded strain gauges arranged in a Wheatstone-bridge configuration.

Features
  • 100 psig to 15000 psig range
  • Flush mount design
  • No dead volume
  • Miniature footprint
  • Stainless steel
  • CE approved
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model A-105 Pressure Transducer Datasheet
application/pdf 303.7 KB
9/2/2021
303.7 KB
Pressure Accessories Datasheet
application/pdf 384.51 KB
9/2/2021
384.51 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Pressure Transducer Range Guide
application/pdf 1.03 MB
9/2/2021
1.03 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model A-105 External Wiring Diagram
application/pdf 16.85 KB
9/2/2021
16.85 KB
Model A-105 Outline Drawing
application/pdf 113.67 KB
9/2/2021
113.67 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Foil Pressure Sensors for Industrial OEM Sprayers
application/pdf 2.68 MB
9/2/2021
2.68 MB
Monitoring Ocean Floor Levels During Oil Drilling
application/pdf 720.4 KB
9/2/2021
720.4 KB
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Exploded view diagram of Honeywell sensors and switches in oil rig applications
application/pdf 6.35 MB
9/9/2022
6.35 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model A-105 Product Photo
application/zip 287.36 KB
9/2/2021
287.36 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

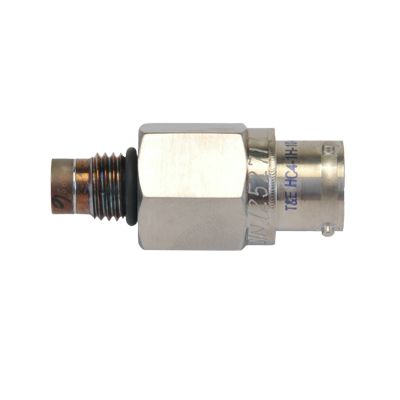

Model A-105 Front View
image/png 58.52 KB
9/2/2021
58.52 KB

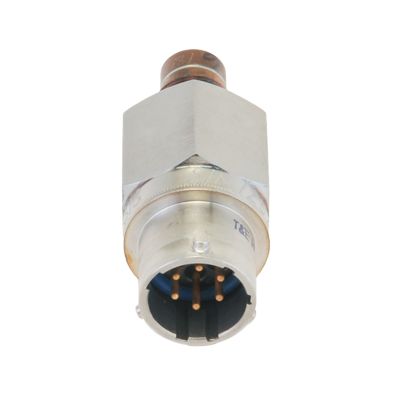

Model A-105 Bottom View
image/png 67.77 KB
9/2/2021
67.77 KB
A-105 highres photo
image/jpeg 71.81 KB
9/2/2021
71.81 KB
A-105 lowres photo
image/jpeg 9.63 KB
9/2/2021
9.63 KB

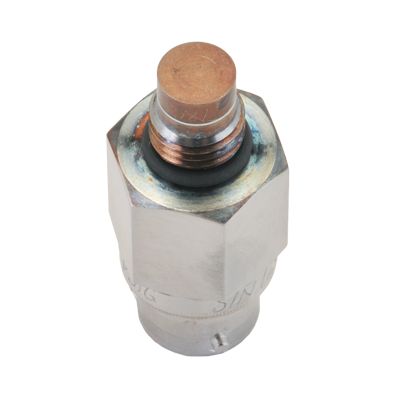

Model A-105 Top View
