General Process Pressure Transducers

Model Z

General purpose gage/absolute pressure transducers. 0.5 psig/a to 60,000 psig/a. ±0.25 % full-scale accuracy

The Model Z pressure transducers are sensors manufactured out of 17-4 PH stainless steel, wetted material for ranges up to 2,000 psi, 15-5 PH stainless steel, wetted material for ranges 2,000 psi and greater. These pressure transducers are built for rugged, industrial applications that require high accuracy and measurement stability. Pressure ranges span from 0.5 psi to 60,000 psi. They utilize complete four-arm 350 ohm strain gauge bridges.

The Model Z is available with a variety of options for extended temperature operation, electrical terminations, wetted material and high-level outputs including 5 Vdc or 10 Vdc and 4 mA to 20 mA. Most high-level output models have internal shunt calibration circuits as a standard feature to allow easy setup of the sensor to the data system. An optional internal signature calibration chip provides calibration information for automatic setup with the Model SC four-or-twelve channel digital indicator.

The Model Z is a strain gauge-based transducer. This design references the primary pressure sensing diaphragm to the atmosphere and provides a stable zero regardless of the transducer environment. The absolute Model Z has an all-welded, vacuum reference chamber ensuring long-term stability.

Features
  • 0.25 % accuracy
  • 0.005 %FS/°F temperature effect
  • 0.5 psig/a to 60000 psig/a range
  • mV/V, 4 mA to 20 mA, 0 Vdc to 5 Vdc, or 0 Vdc to 10 Vdc available outputs
  • All-welded, stainless steel construction
  • Intrinsically safe available (2N option only)
  • CE approved
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model Z Pressure Transducer Datasheet
application/pdf 387.11 KB
9/2/2021
387.11 KB
Pressure Accessories Datasheet
application/pdf 384.51 KB
9/2/2021
384.51 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Pressure Transducer Range Guide
application/pdf 1.03 MB
9/2/2021
1.03 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Oil and Gas Brochure -
application/pdf 3.4 MB
10/25/2022
3.4 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model Z Outline Drawing - 2k psig to 10k psig
application/pdf 129.18 KB
9/2/2021
129.18 KB
Model Z External Wiring Diagram
application/pdf 16.84 KB
9/2/2021
16.84 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model Z Product Photo
application/zip 323.68 KB
9/2/2021
323.68 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

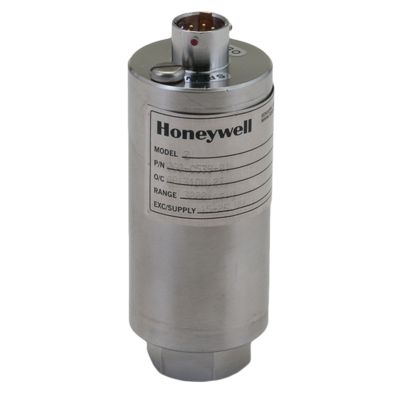

Model Z Front View
image/png 85.64 KB
9/2/2021
85.64 KB

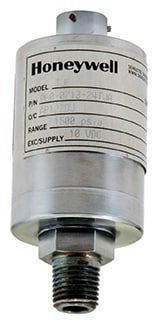

Z lowres photo
image/jpeg 10.66 KB
9/2/2021
10.66 KB

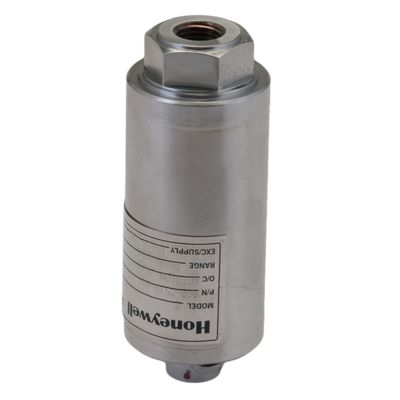

Model Z Bottom View
image/png 86.42 KB
9/2/2021
86.42 KB

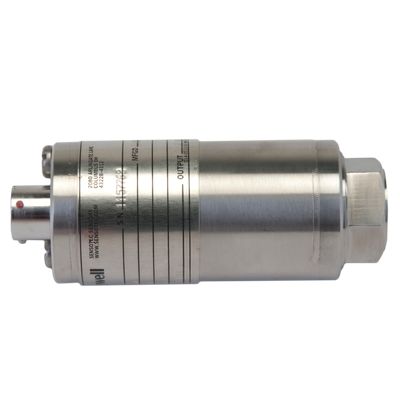

Model Z Side View
image/png 80.55 KB
9/2/2021
80.55 KB

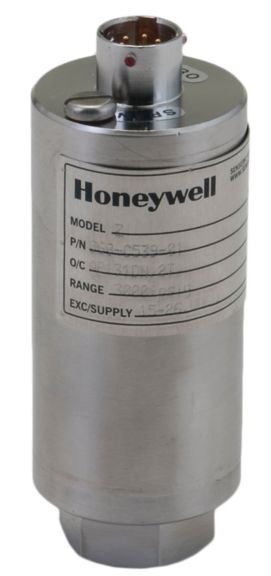

Z highres photo
