Industrial Pressure Transducers

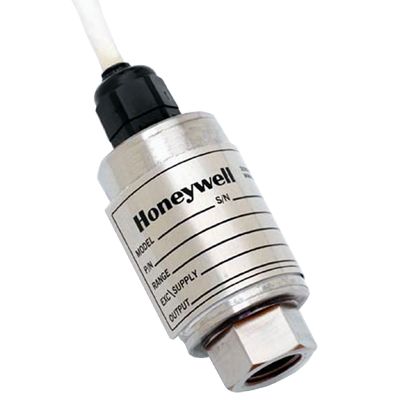

Model LM

Industrial gage pressure transducers. 1 psig to 10,000 psig. mV/V output. ±0.50 % FS BFSL

The Model LM pressure transducer is a cost efficient general purpose gage-only device. Each unit is constructed of HA C276/316 Stainless Steel for ranges 100 psi and less or 17-4 PH Stainless Steel ranges above 100 psi to 1500 psi or 15-5 PH Stainless Steel for ranges 2,000 psi and above for durability in dry rugged environments. Both gas and liquid pressure overloads of up to 50% over capacity are safely accepted.

Features
  • 1 psig to 10000 psig range
  • Integral cable connection
  • 1/4-18 NPT female pressure port
  • mV/V output
  • 0.5 % accuracy
