Oil & Gas Pressure Transducers

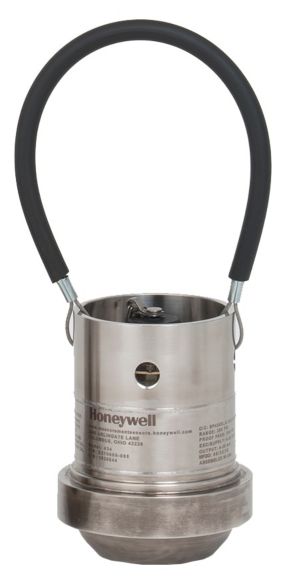

Model 434

Wing union pressure transducers. Standard aperture. 0 psi to 20,000 psi. ±0.2 % full-scale accuracy

Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are designed for demanding oil and gas applications as well as stimulation and circulation systems. They are constructed as an all-welded, stainless steel assembly with the sensor diaphragm and wing union fitting machined as one part, which provides hermetic integrity and minimizes media leakage versus multi-piece parts. The isolated pressure sensing diaphragm minimizes zero-shift during hammer up and eliminates long-term signal drift in the field. The Weco® 1502, 2002, and 2202 Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive and corrosive media. The Honeywell proprietary stainless steel electrical connection provides enhanced secondary pressure containment. Special assembly processes provide enhanced shock and vibration for reliable performance in the field.

Value to Customers
  • Durable: Weco® Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive and corrosive media. Protective cage option provides electrical connection protection.
  • Reliable: All-welded, stainless steel assembly, shock/vibration ratings, and isolated pressure sensing diaphragm increase reliability.
  • Accurate: High accuracy option provides confidence in the actual measured pressure value, particularly for smaller changes in pressure, allowing drilling operation adjustments as needed.
  • Availability and service: Global manufacturing and support allow Honeywell to quickly provide customized products, helping customers meet project timelines.
Differentiators
  • High or standard accuracy allow ability to obtain tighter system requirements and lower error bands than comparable competitive models
  • Shunt calibration option enhances configurability and flexibility: 1-wire shunt calibration is achievable with a single barrier application, helping to minimize installation costs
  • IEC Ex approval allows for use in hazardous areas, in Asia-Pacific and EMEA, and by the U.S. Coast Guard
  • Protective cage option
  • Welded construction
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Pressure Accessories Datasheet
application/pdf 384.51 KB
9/2/2021
384.51 KB
application/pdf 670.43 KB
3/8/2022
670.43 KB
Model 424 Pressure Transducer Datasheet
application/pdf 299.43 KB
9/2/2021
299.43 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Pressure Transducer Range Guide
application/pdf 1.03 MB
9/2/2021
1.03 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Installation Instructions: Models 434, 435 & 437 Wing Union Pressure Sensors
application/pdf 1.07 MB
3/8/2022
1.07 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Oil and Gas Brochure -
application/pdf 3.4 MB
10/25/2022
3.4 MB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Pressure Sensors for Oil & Gas
application/pdf 5.11 MB
10/19/2021
5.11 MB
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Exploded view diagram of Honeywell sensors and switches in oil rig applications
application/pdf 6.35 MB
9/9/2022
6.35 MB
Measurement While Drilling (MWD) for Oil Rigs
application/pdf 443.57 KB
9/2/2021
443.57 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 434 Product Photo
application/zip 341.75 KB
9/2/2021
341.75 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

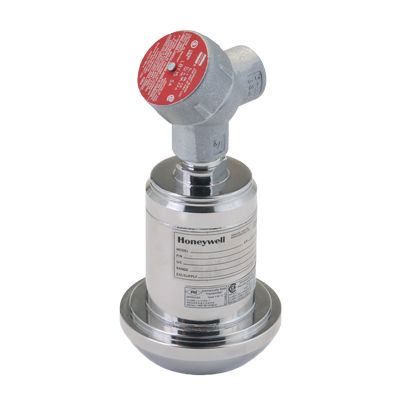

Model 434 Front View
image/png 87.34 KB
9/2/2021
87.34 KB
434 highres photo
image/jpeg 37.84 KB
9/2/2021
37.84 KB

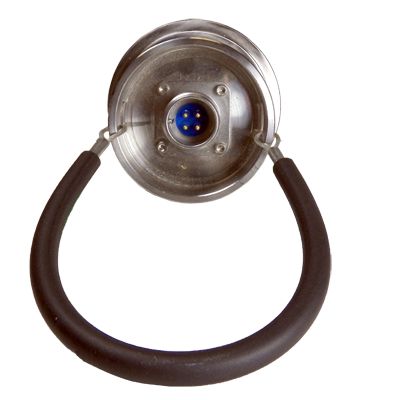

Model 434 Top View
image/png 117.93 KB
9/2/2021
117.93 KB
434 lowres photo
image/jpeg 3.64 KB
9/2/2021
3.64 KB

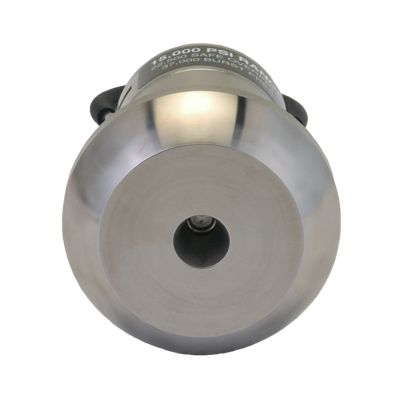

Model 434 Bottom View
