Analog Telemetry (WDC) Torque Transducers

Model 1202B

Model 1202B Rotary Torque / RPM/HP Measurement System. Three Analog Outputs. Optional Isolated Output Channel

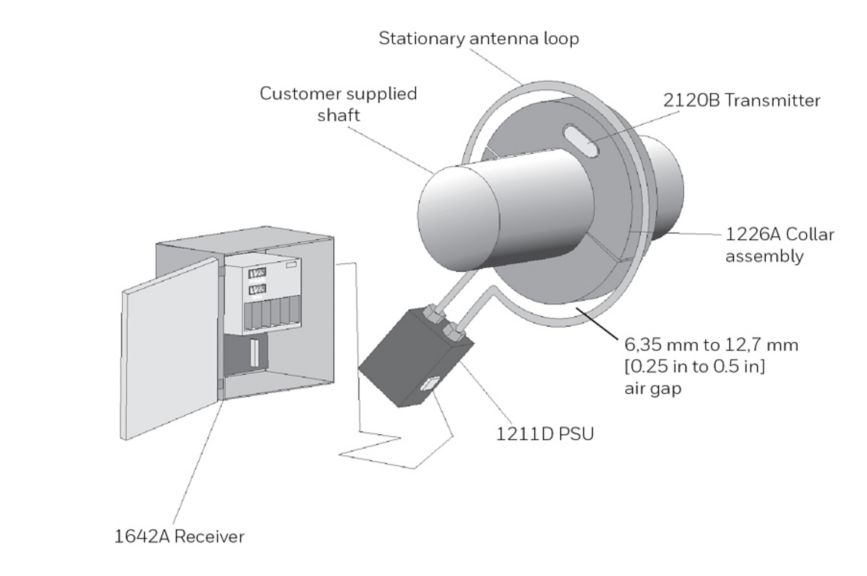

The Model 1202B is a wireless telemetry system capable of monitoring the parameters of torque, RPM, and horsepower utilizing a 1226A collar assembly, 2120B transmitter, stationary loop antenna, 1211D power seperation unit, and 1642A receiver unit.

Features
  • dc to 1000 Hz frequency response
  • Three analog outputs and optional isolated output channel
  • 10 kHz sampling rate
  • 175 microstrain (0.5 mV/V) transmitter sensitivity
  • Wall-mounted, NEMA 4 enclosure
