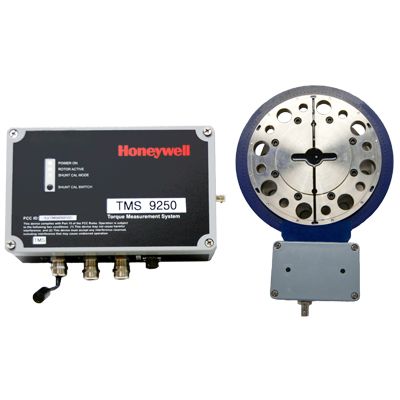

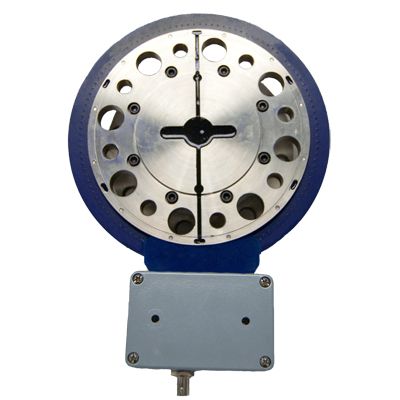

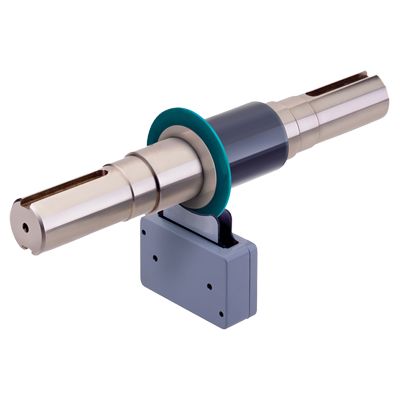

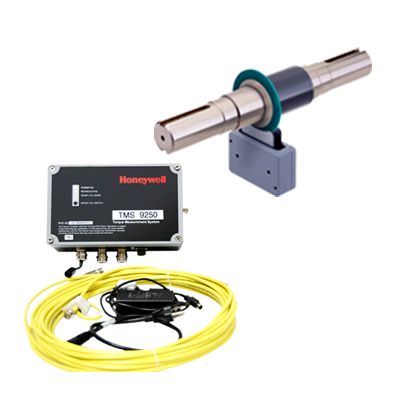

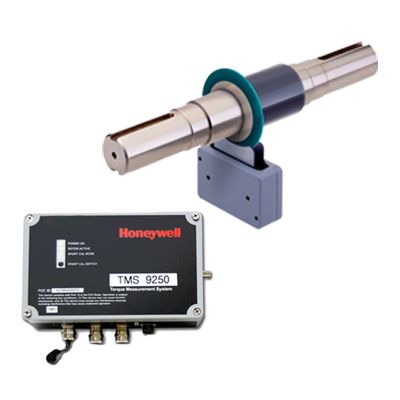

Digital Telemetry Torque Transducers
TMS9250
Digital telemetry, non-contact. 0.05 %FS, total system accuracy. DIN companion flange compatible. High torsional stiffness
Geral
The new TMS 9250 Digital Telemetry Rotary Torque Measurement System, available in many different configurations to meet the needs of your particular torque measurement application. Built on Honeywell’s proven TMS digital torque platform, the TMS 9250 offers:
- True Torque Measurement – Honeywell TMS 9250’s non-contact digital telemetry design enables higher integrity of the data capture through higher resolution and no mechanical interferences: resulting in a more accurate indication of the actual torque being experienced.
- Flexible Modular Design – Honeywell’s modular design can easily be adapted or customized to fit into many different types of test stands to meet specific test application requirements.
- Simple Installation, Setup, and Operation – The TMS 9250 is compact with quick attach wiring connectors for quick commissioning. It has easy to set up parameters via the software system and enables you to make test parameter adjustments on-the-fly.
- Ongoing Reliability – Honeywell’s TMS 9250 with its non-contact design and digital telemetry solution means no friction (contact), leading to less maintenance.
- FCC / CE Certified EMC Compliant – The TMS 9250 complies with all regulatory standards for safe RF emission standards and will not cause interference with other equipment.
Especificações
Outros
- Output
- Voltage ±10 Vdc, sinusoidal frequency output
- Agency Approvals and Standards
- FCC and CE certified, meeting all EMC emission and susceptibility requirements
- Temperature Effect (Output)
- ±0.003 %FS/°F
- Temperature Effect (Zero)
- ±0.003 %FS/°F
- Temperature (Compensated)
- 5°C to 75°C [40°F to 170°F] (Sensor and CCM)
- Temperature (Operating)
- -40°C to 85°C [-40°F to 185°F] (Sensor and CCM)
- Torsional Stiffness
- 13,000,000 lb-in/rad
- 1470 kNm/rad
- 2,750,000 lb-in/rad
- 205,000,000 lb-in/rad
- 23000 kNm/rad
- 311 kNm/rad
- 35,000,000 lb-in/rad
- 395,000 lb-in/rad
- 3950 kNm/rad
- 5,500,000 lb-in/rad
- 621 kNm/rad
- 80,000,000 lb-in/rad
- 867,000 lb-in/rad
- 9000 kNm/rad
- 98 kNm/rad
- Product Dimensions
- Ø106,7 mm [Ø4.2 in]
- Ø132,1 mm [Ø5.2 in]
- Ø162,6 mm [Ø6.4 in]
- Ø190,5 mm [Ø7.5 in]
- Ø221 mm [Ø8.7 in]
- Ø266,7 mm [Ø10.5 in]
- UNSPSC Commodity
- Force or Torque Sensors
- Rotating Inertia
- 0.0002 kg-m2
- 0.001 kg-m2
- 0.001 lb-in-sec2
- 0.002 lb-in-sec2
- 0.006 kg-m2
- 0.009 lb-in-sec2
- 0.015 kg-m2
- 0.029 kg-m2
- 0.05 lb-in-sec2
- 0.094 kg-m2
- 0.13 lb-in-sec2
- 0.26 lb-in-sec2
- 0.83 lb-in-sec2
- Torque Range
- 100 Nm
- 100 ft-lb
- 1000 Nm
- 1000 ft-lb
- 10000 Nm
- 200 Nm
- 2000 Nm
- 2000 ft-lb
- 250 ft-lb
- 300 Nm
- 3000 Nm
- 3000 ft-lb
- 4000 ft-lb
- 50 ft-lb
- 500 Nm
- 500 ft-lb
- 5000 Nm
- 8000 ft-lb
- Speed Rating
- 12000 rpm
- 14000 rpm
- 16000 rpm
- 18000 rpm
- 20000 rpm
- 8000 rpm
- UNSPSC Code
- 41111934
- Torque Type
- Digital Telemetry - Non-Contact
- Series Name
- TMS9250
- Resolução
- Analog to digital (A/D) frequency, 24-bit (0.01 %FS); Normal mode frequency, 16-bit (0.01 %FS)
- Order Code
- 92511-100FTLBS,1AE,56J,61A
- 92511-100NM,1AE,56J,61A
- 92511-200NM,1AE,56J,61A
- 92511-50FTLBS,1AE,56J,61A
- 92512-250FTLBS,1AE,56J,61A
- 92512-300NM,1AE,56J,61A
- 92512-500FTLBS,1AE,56J,61A
- 92512-500NM,1AE,56J,61A
- 92513-1KFTLBS,1AE,56J,61A
- 92513-1KNM,1AE,56J,61A
- 92513-2KNM,1AE,56J,61A
- 92514-2KFTLBS,1AE,56J,61A
- 92514-3KFTLBS,1AE,56J,61A
- 92514-3KNM,1AE,56J,61A
- 92515-4KFTLBS,1AE,56J,61A
- 92515-5KNM,1AE,56J,61A
- 92516-10KNM,1AE,56J,61A
- 92516-8KFTLBS,1AE,56J,61A
- Rise Time
- 30-45 minutes (warm up time)
- Overload
- 100 lb-ft
- 10k Nm
- 16k ft-lb
- 1k Nm
- 1k lb-ft
- 200 Nm
- 200 lb-ft
- 20k Nm
- 2k Nm
- 2k lb-ft
- 400 Nm
- 4k Nm
- 4k ft-lb
- 500 lb-ft
- 600 Nm
- 6k Nm
- 6k ft-lb
- 8k ft-lb
- Accuracy
- System to read 0.05% FS typical
- Product
- 92511-100
- 92511-100NM
- 92511-200NM
- 92511-50
- 92512-250
- 92512-300NM
- 92512-500
- 92512-500NM
- 92513-1K
- 92513-1KNM
- 92513-2KNM
- 92514-2K
- 92514-3K
- 92514-3KNM
- 92515-4K
- 92515-5KNM
- 92516-10KNM
- 92516-8K
Outros
- Output
- Voltage ±10 Vdc, sinusoidal frequency output
- Agency Approvals and Standards
- FCC and CE certified, meeting all EMC emission and susceptibility requirements
- Temperature Effect (Output)
- ±0.003 %FS/°F
- Temperature Effect (Zero)
- ±0.003 %FS/°F
- Temperature (Compensated)
- 5°C to 75°C [40°F to 170°F] (Sensor and CCM)
- Temperature (Operating)
- -40°C to 85°C [-40°F to 185°F] (Sensor and CCM)
- Torsional Stiffness
- 13,000,000 lb-in/rad
- 1470 kNm/rad
- 2,750,000 lb-in/rad
- 205,000,000 lb-in/rad
- 23000 kNm/rad
- 311 kNm/rad
- 35,000,000 lb-in/rad
- 395,000 lb-in/rad
- 3950 kNm/rad
- 5,500,000 lb-in/rad
- 621 kNm/rad
- 80,000,000 lb-in/rad
- 867,000 lb-in/rad
- 9000 kNm/rad
- 98 kNm/rad
- Product Dimensions
- Ø106,7 mm [Ø4.2 in]
- Ø132,1 mm [Ø5.2 in]
- Ø162,6 mm [Ø6.4 in]
- Ø190,5 mm [Ø7.5 in]
- Ø221 mm [Ø8.7 in]
- Ø266,7 mm [Ø10.5 in]
- UNSPSC Commodity
- Force or Torque Sensors
- Rotating Inertia
- 0.0002 kg-m2
- 0.001 kg-m2
- 0.001 lb-in-sec2
- 0.002 lb-in-sec2
- 0.006 kg-m2
- 0.009 lb-in-sec2
- 0.015 kg-m2
- 0.029 kg-m2
- 0.05 lb-in-sec2
- 0.094 kg-m2
- 0.13 lb-in-sec2
- 0.26 lb-in-sec2
- 0.83 lb-in-sec2
- Torque Range
- 100 Nm
- 100 ft-lb
- 1000 Nm
- 1000 ft-lb
- 10000 Nm
- 200 Nm
- 2000 Nm
- 2000 ft-lb
- 250 ft-lb
- 300 Nm
- 3000 Nm
- 3000 ft-lb
- 4000 ft-lb
- 50 ft-lb
- 500 Nm
- 500 ft-lb
- 5000 Nm
- 8000 ft-lb
- Speed Rating
- 12000 rpm
- 14000 rpm
- 16000 rpm
- 18000 rpm
- 20000 rpm
- 8000 rpm
- UNSPSC Code
- 41111934
- Torque Type
- Digital Telemetry - Non-Contact
- Series Name
- TMS9250
- Resolução
- Analog to digital (A/D) frequency, 24-bit (0.01 %FS); Normal mode frequency, 16-bit (0.01 %FS)
- Order Code
- 92511-100FTLBS,1AE,56J,61A
- 92511-100NM,1AE,56J,61A
- 92511-200NM,1AE,56J,61A
- 92511-50FTLBS,1AE,56J,61A
- 92512-250FTLBS,1AE,56J,61A
- 92512-300NM,1AE,56J,61A
- 92512-500FTLBS,1AE,56J,61A
- 92512-500NM,1AE,56J,61A
- 92513-1KFTLBS,1AE,56J,61A
- 92513-1KNM,1AE,56J,61A
- 92513-2KNM,1AE,56J,61A
- 92514-2KFTLBS,1AE,56J,61A
- 92514-3KFTLBS,1AE,56J,61A
- 92514-3KNM,1AE,56J,61A
- 92515-4KFTLBS,1AE,56J,61A
- 92515-5KNM,1AE,56J,61A
- 92516-10KNM,1AE,56J,61A
- 92516-8KFTLBS,1AE,56J,61A
- Rise Time
- 30-45 minutes (warm up time)
- Overload
- 100 lb-ft
- 10k Nm
- 16k ft-lb
- 1k Nm
- 1k lb-ft
- 200 Nm
- 200 lb-ft
- 20k Nm
- 2k Nm
- 2k lb-ft
- 400 Nm
- 4k Nm
- 4k ft-lb
- 500 lb-ft
- 600 Nm
- 6k Nm
- 6k ft-lb
- 8k ft-lb
- Accuracy
- System to read 0.05% FS typical
- Product
- 92511-100
- 92511-100NM
- 92511-200NM
- 92511-50
- 92512-250
- 92512-300NM
- 92512-500
- 92512-500NM
- 92513-1K
- 92513-1KNM
- 92513-2KNM
- 92514-2K
- 92514-3K
- 92514-3KNM
- 92515-4K
- 92515-5KNM
- 92516-10KNM
- 92516-8K
- Output : Voltage ±10 Vdc, sinusoidal frequency output
- Agency Approvals and Standards : FCC and CE certified, meeting all EMC emission and susceptibility requirements
- Temperature Effect (Output) : ±0.003 %FS/°F
- Temperature Effect (Zero) : ±0.003 %FS/°F
- Temperature (Compensated) : 5°C to 75°C [40°F to 170°F] (Sensor and CCM)
- Temperature (Operating) : -40°C to 85°C [-40°F to 185°F] (Sensor and CCM)
- Torsional Stiffness : 13,000,000 lb-in/rad|1470 kNm/rad|2,750,000 lb-in/rad|205,000,000 lb-in/rad|23000 kNm/rad|311 kNm/rad|35,000,000 lb-in/rad|395,000 lb-in/rad|3950 kNm/rad|5,500,000 lb-in/rad|621 kNm/rad|80,000,000 lb-in/rad|867,000 lb-in/rad|9000 kNm/rad|98 kNm/rad
- Product Dimensions : Ø106,7 mm [Ø4.2 in]|Ø132,1 mm [Ø5.2 in]|Ø162,6 mm [Ø6.4 in]|Ø190,5 mm [Ø7.5 in]|Ø221 mm [Ø8.7 in]|Ø266,7 mm [Ø10.5 in]
- UNSPSC Commodity : Force or Torque Sensors
- Rotating Inertia : 0.0002 kg-m2|0.001 kg-m2|0.001 lb-in-sec2|0.002 lb-in-sec2|0.006 kg-m2|0.009 lb-in-sec2|0.015 kg-m2|0.029 kg-m2|0.05 lb-in-sec2|0.094 kg-m2|0.13 lb-in-sec2|0.26 lb-in-sec2|0.83 lb-in-sec2
- Torque Range : 100 Nm|100 ft-lb|1000 Nm|1000 ft-lb|10000 Nm|200 Nm|2000 Nm|2000 ft-lb|250 ft-lb|300 Nm|3000 Nm|3000 ft-lb|4000 ft-lb|50 ft-lb|500 Nm|500 ft-lb|5000 Nm|8000 ft-lb
- Speed Rating : 12000 rpm|14000 rpm|16000 rpm|18000 rpm|20000 rpm|8000 rpm
- UNSPSC Code : 41111934
- Torque Type : Digital Telemetry - Non-Contact
- Series Name : TMS9250
- Resolução : Analog to digital (A/D) frequency, 24-bit (0.01 %FS); Normal mode frequency, 16-bit (0.01 %FS)
- Order Code : 92511-100FTLBS,1AE,56J,61A|92511-100NM,1AE,56J,61A|92511-200NM,1AE,56J,61A|92511-50FTLBS,1AE,56J,61A|92512-250FTLBS,1AE,56J,61A|92512-300NM,1AE,56J,61A|92512-500FTLBS,1AE,56J,61A|92512-500NM,1AE,56J,61A|92513-1KFTLBS,1AE,56J,61A|92513-1KNM,1AE,56J,61A|92513-2KNM,1AE,56J,61A|92514-2KFTLBS,1AE,56J,61A|92514-3KFTLBS,1AE,56J,61A|92514-3KNM,1AE,56J,61A|92515-4KFTLBS,1AE,56J,61A|92515-5KNM,1AE,56J,61A|92516-10KNM,1AE,56J,61A|92516-8KFTLBS,1AE,56J,61A
- Rise Time : 30-45 minutes (warm up time)
- Overload : 100 lb-ft|10k Nm|16k ft-lb|1k Nm|1k lb-ft|200 Nm|200 lb-ft|20k Nm|2k Nm|2k lb-ft|400 Nm|4k Nm|4k ft-lb|500 lb-ft|600 Nm|6k Nm|6k ft-lb|8k ft-lb
- Accuracy : System to read 0.05% FS typical
- Product : 92511-100|92511-100NM|92511-200NM|92511-50|92512-250|92512-300NM|92512-500|92512-500NM|92513-1K|92513-1KNM|92513-2KNM|92514-2K|92514-3K|92514-3KNM|92515-4K|92515-5KNM|92516-10KNM|92516-8K
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
TMS 9250 DIN-Flange Torque Measurement System Datasheet
application/pdf 758.73 KB
9/2/2021
758.73 KB
TMS 9250 Shaft-to-Shaft Torque Measurement System Datasheet
application/pdf 459.89 KB
9/2/2021
459.89 KB
TMS 9250 SAE-Flange Torque Measurement System Datasheet
application/pdf 504.46 KB
9/2/2021
504.46 KB
TMS 9250 Large Capacity Flange Torque Measurement System Datasheet
application/pdf 678.83 KB
9/2/2021
678.83 KB
TMS 9250 Integral Coupling Torque Measurement System Datasheet
application/pdf 441.46 KB
9/2/2021
441.46 KB
Test & Measurement Torque Accessories Datasheet
application/pdf 591.34 KB
9/2/2021
591.34 KB
TMS 9250 Custom Flange Torque Measurement System Datasheet
application/pdf 474.42 KB
9/2/2021
474.42 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Digital Telemetry Rotary Torque Applications
application/pdf 3.13 MB
9/2/2021
3.13 MB

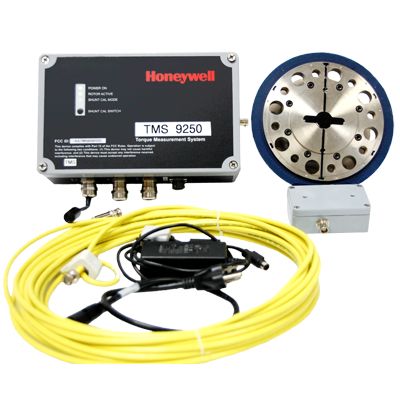

TMS9250 DIN & SAE Top Angle View
image/png 199.84 KB
9/2/2021
199.84 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
TMS 9250 DIN-Flange Torque Measurement System Datasheet
758.73 KB
9/2/2021
758.73 KB
Aerospace Test and Measurement Capabilities
1.95 MB
9/2/2021
1.95 MB
Digital Telemetry Rotary Torque Applications
3.13 MB
9/2/2021
3.13 MB
TMS 9250 Shaft-to-Shaft Torque Measurement System Datasheet
459.89 KB
9/2/2021
459.89 KB
TMS 9250 SAE-Flange Torque Measurement System Datasheet
504.46 KB
9/2/2021
504.46 KB
TMS 9250 Large Capacity Flange Torque Measurement System Datasheet
678.83 KB
9/2/2021
678.83 KB
TMS 9250 Integral Coupling Torque Measurement System Datasheet
441.46 KB
9/2/2021
441.46 KB
Test & Measurement Torque Accessories Datasheet
591.34 KB
9/2/2021
591.34 KB
TMS 9250 Custom Flange Torque Measurement System Datasheet
474.42 KB
9/2/2021
474.42 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
TMS 9250 DIN-Flange Torque Measurement System Datasheet
758.73 KB
9/2/2021
TMS 9250 Shaft-to-Shaft Torque Measurement System Datasheet
459.89 KB
9/2/2021
TMS 9250 SAE-Flange Torque Measurement System Datasheet
504.46 KB
9/2/2021
TMS 9250 Large Capacity Flange Torque Measurement System Datasheet
678.83 KB
9/2/2021
TMS 9250 Integral Coupling Torque Measurement System Datasheet
441.46 KB
9/2/2021
Test & Measurement Torque Accessories Datasheet
591.34 KB
9/2/2021
TMS 9250 Custom Flange Torque Measurement System Datasheet
474.42 KB
9/2/2021
Aerospace Test and Measurement Capabilities
1.95 MB
9/2/2021
Digital Telemetry Rotary Torque Applications
3.13 MB
9/2/2021
Product Number
SKU
Description
92511-100NM
Model 92511, 100 Nm, DIN 65 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92511-200NM
Model 92511, 200 Nm, DIN 65 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92512-250
Model 92512, 250 ft-lb, DIN 90 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92512-300NM
Model 92512, 300 Nm, DIN 90 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92512-500NM
Model 92512, 500 Nm, DIN 90 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92513-1K
Model 92513, 1000 ft-lb, DIN 120 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92513-1KNM
Model 92513, 1K Nm, DIN 120 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92513-2KNM
Model 92513, 2K Nm, DIN 120 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92514-3KNM
Model 92514, 3K Nm, DIN 150 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92515-5KNM
Model 92515, 5K Nm, DIN 180 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
SKU
Description
92511-100NM
Model 92511, 100 Nm, DIN 65 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92511-200NM
Model 92511, 200 Nm, DIN 65 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92512-250
Model 92512, 250 ft-lb, DIN 90 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92512-300NM
Model 92512, 300 Nm, DIN 90 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92512-500NM
Model 92512, 500 Nm, DIN 90 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92513-1K
Model 92513, 1000 ft-lb, DIN 120 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92513-1KNM
Model 92513, 1K Nm, DIN 120 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92513-2KNM
Model 92513, 2K Nm, DIN 120 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92514-3KNM
Model 92514, 3K Nm, DIN 150 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
92515-5KNM
Model 92515, 5K Nm, DIN 180 Flange, Digital Telemetry Torque Measurement System, 5°C to 75°C [40°F to 170°F] Temperature Compensation, Voltage ±10 Vdc output, Sinusoidal Frequency Output
