Reaction Torque Transducers

Model 2102 Series

Small flanged reaction torque sensors. 5,65 Nm to 112,98 Nm capacities. 0.1 % non-linearity & hysteresis

Model 2102 small flanged reaction torque sensor is designed for installation between test pieces such as motors, switches, axles, or shafts and their mounting plate. These models operate and are calibrated in both clockwise and counterclockwise directions. Nickel-plated alloy steel construction enhances durability in harsh, industrial environments. These models have no moving parts and utilize four bonded strain gages on a special machined portion of the transducer to achieve a maximum non-linearity of 0.1 % over a wide dynamic range. Typical applications include tire braking, motor dynamometers, friction-skid testing, and twist measurement. 50 in-lb to 1,000 in-lb capacities.

Features
  • 50 in-lb to 1000 in-lb capacities
  • 0.1 % non-linearity and hysteresis
  • Reaction measurements designed to eliminate speed limitations
  • Reduced friction error
  • No maintenance of slip rings, bearings, or brushes
  • Compact, 'low mass' physical style
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Torque Accessories Datasheet
application/pdf 591.34 KB
9/2/2021
591.34 KB
Test & Measurement Model 2102 Reaction Torque Transducer Datasheet
application/pdf 280.21 KB
9/2/2021
280.21 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Torque Transducer Range Guide
application/pdf 3.06 MB
9/2/2021
3.06 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 2102 Outline Drawing
application/pdf 65.51 KB
9/2/2021
65.51 KB
Model 2102 External Wiring Diagram
application/pdf 170.33 KB
9/2/2021
170.33 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 2102 Series Product Photo
application/zip 490.6 KB
9/2/2021
490.6 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

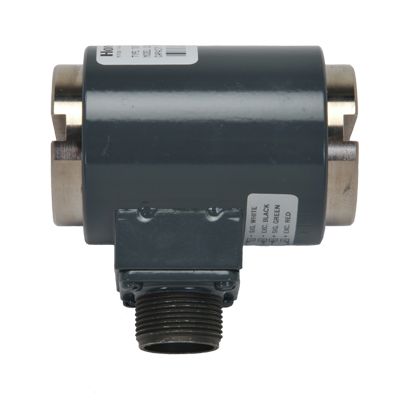

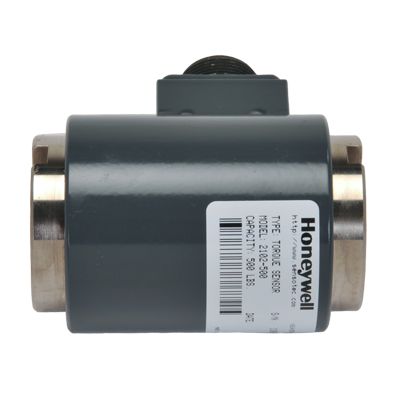

Model 2102 Front View
image/png 111.65 KB
9/2/2021
111.65 KB

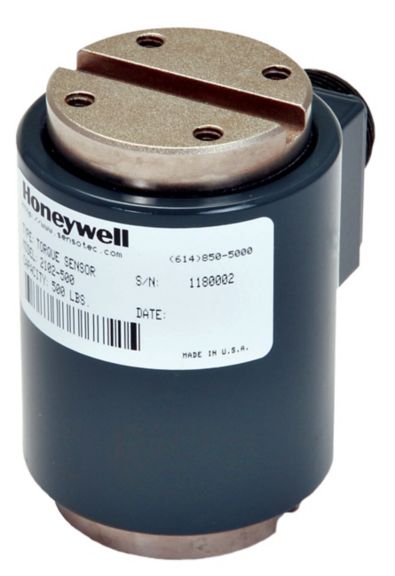

Model 2102 highres photo
image/jpeg 139.67 KB
9/2/2021
139.67 KB
Model 2102 Top Angle View
image/png 111.95 KB
9/2/2021
111.95 KB

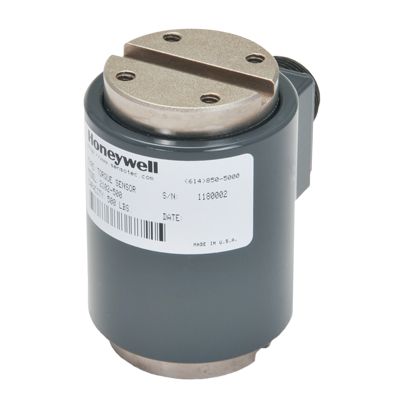

Model 2102 Top View
image/png 115.74 KB
9/2/2021
115.74 KB

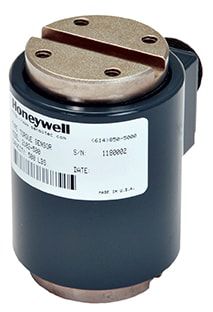

Model 2102 lowres photo
