Reaction Torque Transducers

Model 2110 Series

Flanged reaction torque sensors. 225,97 Nm to 271K Nm capacities. 0.1 % non-linearity & hysteresis

Model 2110-2116 flanged reaction torque sensor is designed for installation between test pieces such as motors, switches, axles, or shafts and their mounting plate. These models operate and are calibrated in both directions. Nickel-plated alloy steel construction enhances durability in harsh, industrial environments. These models have no moving parts and utilize four bonded strain gages on a special machined portion of the transducer to achieve a maximum non-linearity of 0.1 % over a wide dynamic range. Typical applications include tire braking, motor dynamometers, friction-skid testing, and twist measurement. 2,000 in-lb to 2,400,000 in-lb capacities.

Features
  • 2000 in-lb to 2400000 in-lb capacities
  • 0.1 % non-linearity and hysteresis
  • High torsional stiffness
  • Higher resistance to bending moments
  • Low-end sensitivity due to absence of moving parts
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Torque Accessories Datasheet
application/pdf 591.34 KB
9/2/2021
591.34 KB
Test & Measurement Models 2110-2116 Reaction Torque Transducer Datasheet
application/pdf 285.31 KB
9/2/2021
285.31 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
White Paper: New Ways to Measure Torque
application/pdf 199.69 KB
9/2/2021
199.69 KB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 2115 Outline Drawing
application/pdf 172.4 KB
9/2/2021
172.4 KB
Model 2113 Outline Drawing
application/pdf 1.36 MB
9/2/2021
1.36 MB
Model 2110 External Wiring Diagram
application/pdf 48.01 KB
9/2/2021
48.01 KB
Model 2114 Outline Drawing
application/pdf 54.56 KB
9/2/2021
54.56 KB
Model 2116 Outline Drawing
application/pdf 151.68 KB
9/2/2021
151.68 KB
Model 2111 Outline Drawing
application/pdf 186.5 KB
9/2/2021
186.5 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 2110 Series Product Photo
application/zip 825.77 KB
9/2/2021
825.77 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

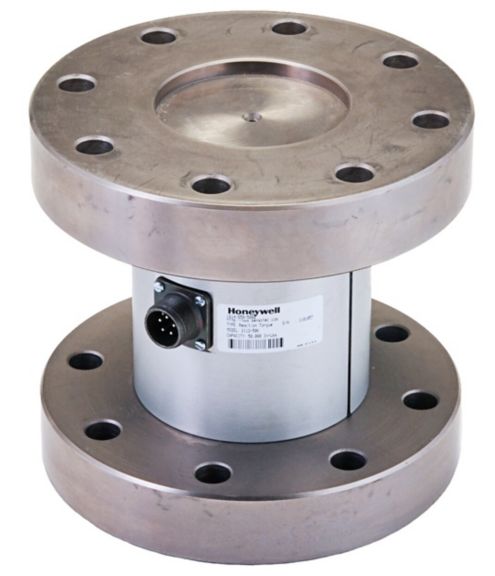

Model 2112 lowres photo
image/jpeg 17.55 KB
9/2/2021
17.55 KB

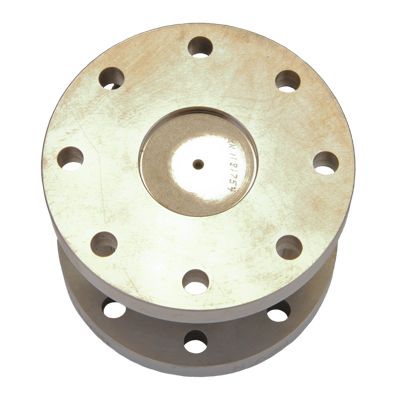

Model 2110 Top View
image/png 167.69 KB
9/2/2021
167.69 KB
Model 2110 highres photo
image/jpeg 84.7 KB
9/2/2021
84.7 KB

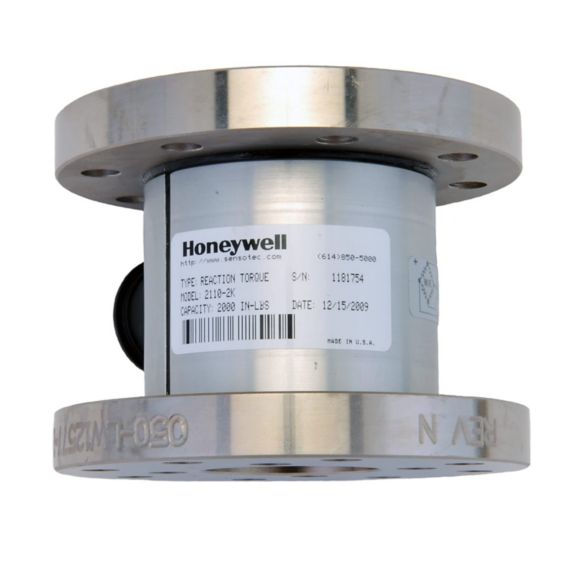

Model 2110 Front View
image/png 122.35 KB
9/2/2021
122.35 KB

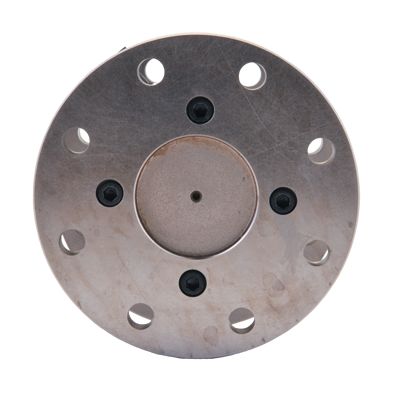

Model 2110 Bottom View
