Accéléromètres à usage général

Model MA11 Series

General purpose accelerometers. Connector, integral cable or submersible cable versions available. ±50 G or ±80 G dynamic range

The Model MA11 amplified piezoelectric accelerometers are designed to be used in industrial test and automation environments: including laboratory testing, modal studies and test cells. The seismic element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity. The stainless steel materials are non-magnetic resulting in very low magnetic field susceptibility. These features, together with a sealed body, assure accurate and reliable data. The Model MA11 is available in a number of configurations and options that includes connector or integral stainless steel armored cable (specify length at time of ordering), or a submersible format. The Model MA11 can be supplied in a number of different dynamic ranges to suit the expected vibration levels for the application.

Features
  • General purpose
  • 2 Hz to 10 kHz usable frequency range
  • IEPE output
  • mV/G output
  • Intrinsically safe option
  • Multiple termination options
Fiche Technique
Nom
La description
Taille du fichier
Date
Taille
Accelerometer Mating Connector/Cable Assembly Datasheet
application/pdf 324.48 KB
8/3/2021
324.48 KB
Test & MeasurementModel MA11 Accelerometer Datasheet
application/pdf 236.45 KB
8/3/2021
236.45 KB
Test & MeasurementAccelerometer Accessories Datasheet
application/pdf 324.5 KB
8/3/2021
324.5 KB
Brochure
Nom
La description
Taille du fichier
Date
Taille
T&M Overview Brochure
application/pdf 424.1 KB
8/3/2021
424.1 KB
Image de produit
Nom
La description
Taille du fichier
Date
Taille
Model MA11 Series Product Photo
application/zip 471.57 KB
471.57 KB
Autres
Nom
La description
Taille du fichier
Date
Taille

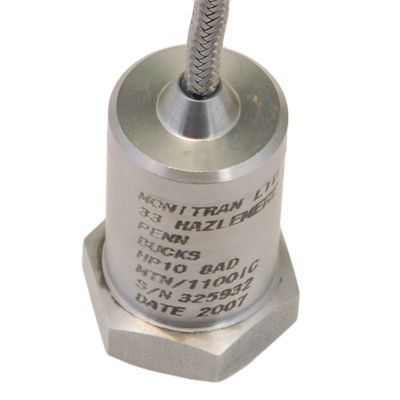

Model MA11 Top Angle View
image/png 121.81 KB
8/3/2021
121.81 KB

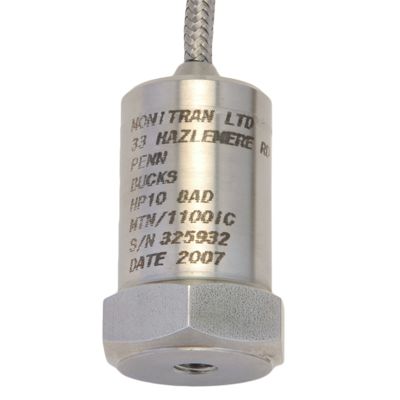

Model MA11 Front View
image/png 105.36 KB
8/3/2021
105.36 KB

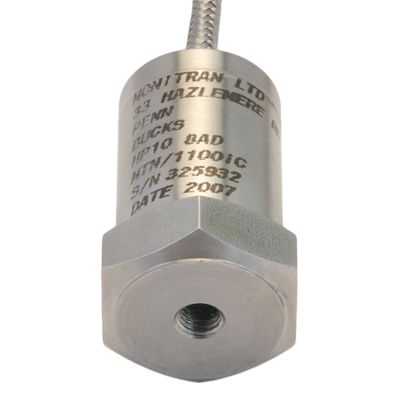

Model MA11 Bottom View
