Accéléromètres à usage général

Model MA15 Series

General purpose accelerometers. Current output. Mating connector or integral cable. 1/4-28 UNF Female mounting hole. 50 G dynamic range

The Model MA15 is a low-cost amplified piezoelectric accelerometer which is designed to be used in industrial test and automation environments: including laboratory testing, modal studies and test cells. The constant current low output impedance output combined with the ability to drive high load capacitance allows long runs of low cost cable without degradation of data. The Model MA15 features a high natural frequency, a wide frequency range and a flat sensitivity vs. temperature response over the temperature range.

The seismic element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity. The stainless steel materials are non-magnetic resulting in very low magnetic field susceptibility. These features, together with a sealed body, assure accurate and reliable data. The Model MA15 is available in a number of configurations and options that include connector or integral stainless steel armored cable (specify length at time of ordering) and an intrinsically safe option. The mounting hole can be supplied with different threads. The Model MA15 can be supplied in a number of different sensitivities to suit the expected vibration levels for the application.

Features
  • General purpose
  • 4 mA to 20 mA two-wire proportional to G output
  • 2 Hz to 1 kHz usable range
  • Intrisically safe option
  • Stainless steel overbraided PTFE cable
Fiche Technique
Nom
La description
Taille du fichier
Date
Taille
Test & MeasurementAccelerometer Accessories Datasheet
application/pdf 324.5 KB
8/3/2021
324.5 KB
Accelerometer Mating Connector/Cable Assembly Datasheet
application/pdf 324.48 KB
8/3/2021
324.48 KB
Test & MeasurementModel MA15 Accelerometer Datasheet
application/pdf 203.08 KB
8/3/2021
203.08 KB
Brochure
Nom
La description
Taille du fichier
Date
Taille
T&M Overview Brochure
application/pdf 424.1 KB
8/3/2021
424.1 KB
Image de produit
Nom
La description
Taille du fichier
Date
Taille
Model MA15 Series Product Photo
application/zip 491.23 KB
491.23 KB
Autres
Nom
La description
Taille du fichier
Date
Taille

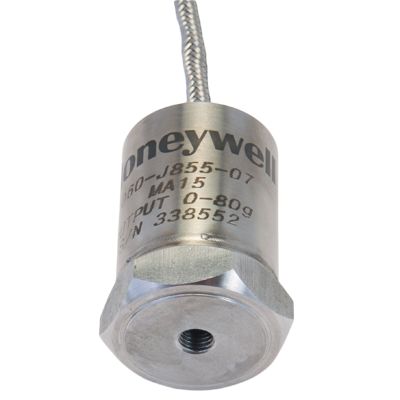

Model MA15 Bottom View
image/png 106.05 KB
8/3/2021
106.05 KB
Model MA15 Front View
image/png 82.62 KB
8/3/2021
82.62 KB

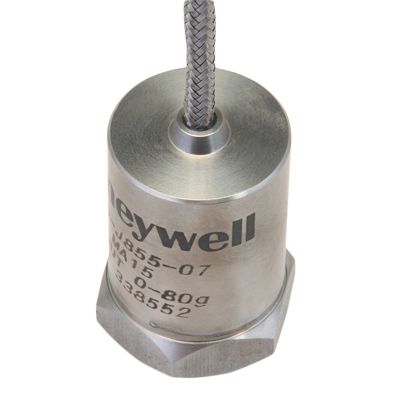

Model MA15 Top View
