Resolvers

3-inch Series

Resolver with multiple housing & rotary transformer configurations. 3 in dia.. 1X: 1X & 16X speeds. Transformer (360°+ mechanical) redundant

For manufacturers who need an accurate, reliable, repeatable and durable rotary and angle absolute position sensor for potential use in defense, aerospace, medical and industrial applications. Honeywell Hawk͐2: Resolvers provide 360° noncontact, angular position sensing and enhanced accuracy (±7 arcmin) for precise motion control.

Resolvers convert mechanical shaft position to an electrical signal which represents the actual shaft angle. They are variable transformers in which the stator has two phase windings mechanically displaced by 90°. The output consists of two sine waves that are phase shifted by 90°.

Resolvers are typically chosen over electronic sensors (i.e., optical encoders, potentiometers, magnetic encoders/sensors) because they do not contain electronics, so they are not susceptible to performance fluctuations in harsh environments. Resolvers are inherently radiation hardened and offer durable EMC (Electromagnetic Compatibility) performance.

Value to Customers
  • Product delivery: Honeywell's use of the same components for all standard configurations results in its ability to manufacture production-quality standard devices in 12 weeks versus 20-22 weeks many competitors offer
  • Customizable: Honeywell's manufacturing process and the variety of features available allow customers to customize the product to meet their application accuracy and size requirements
  • Global support: Honeywell's worldwide presence offers customers immediate product and application support: many resolver competitors offer either support only in their local manufacturing area, or limited support outside of their manufacturing area
  • Engineering expertise: Honeywell has more than 30 years" experience providing accurate, reliable, and durable resolvers
Differentiators
  • Multiple configurations: Pancake (bare and simple housed), fully housed and configurations with rotary transformers
  • Operating temperature range: -50.8 °C to 93.3 °C [-60 °F to 200 °F]
  • Excitation frequency range: 800 Hz to 5000 Hz
  • Excitation voltage range: 3 V to 15 V
  • Shock: 50 g, 11 ms
  • Vibration: 15 g, 10 Hz to 2000 Hz
  • Custom trim
  • Custom hub/housing
  • Custom redundant brushless version (two independent resolvers within the same housing)
  • Titanium housing
  • Transformer for 360°+ rotation (continuous)
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Honeywell Hawk™ Resolvers, 3-in Series, Multiple Configurations
application/pdf 636.6 KB
9/2/2021
636.6 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Position Sensors Product Range Guide
application/pdf 4.85 MB
10/4/2021
4.85 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
50075128: Honeywell Hawk™ Resolvers, 3-in Series, Multiple Configurations
application/pdf 433.86 KB
9/2/2021
433.86 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Honeywell Hawk™ Resolvers, 1-in Series and 3-Inch Series
application/pdf 75.44 KB
9/2/2021
75.44 KB
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

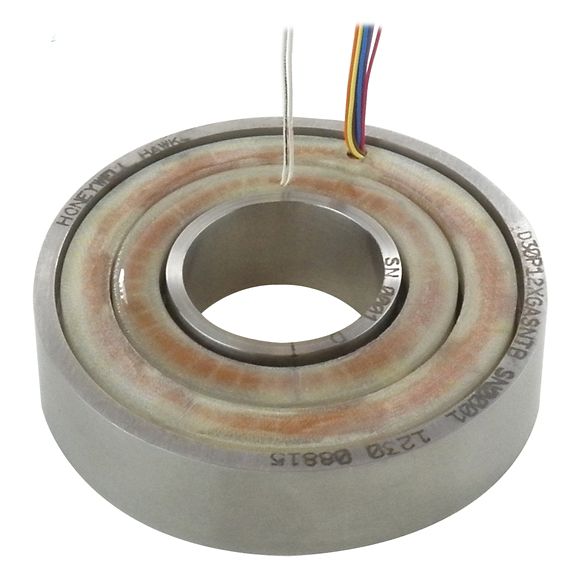

D30P12XGASNTB highres photo.jpg
image/jpeg 521.79 KB
9/2/2021
521.79 KB
3-inch Series Product Photo
application/zip 2.24 MB
9/2/2021
2.24 MB

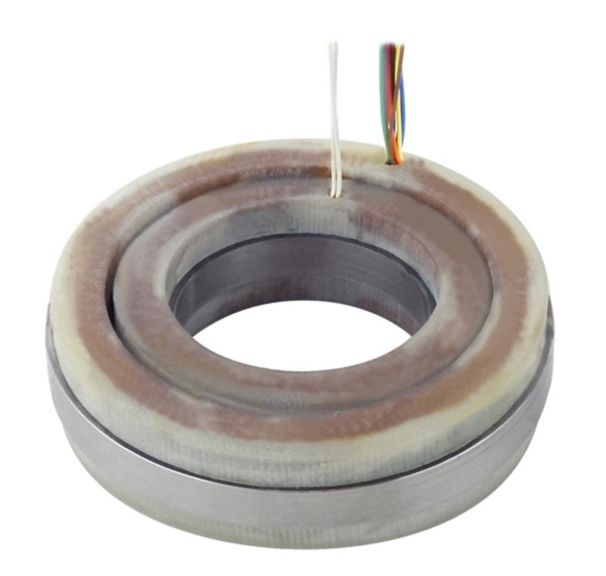

D27B14XGABNTB, S27B14XGABNYG highres photo.jpg
image/jpeg 475.1 KB
9/2/2021
475.1 KB

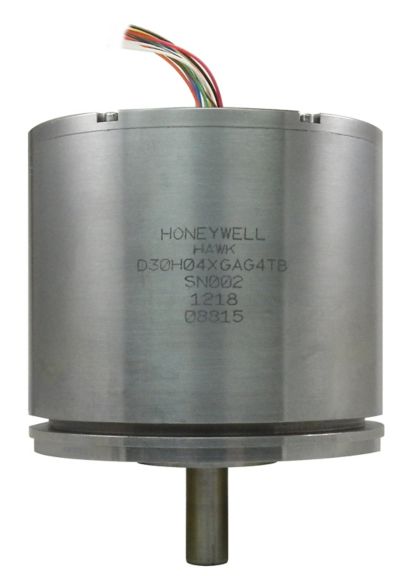

D30H04XGAG4TB highres photo.jpg
image/jpeg 637.01 KB
9/2/2021
637.01 KB
D30P12XGASNTB lowres photo.jpg
image/jpeg 71.47 KB
9/2/2021
71.47 KB
D30D12XGASNTB lowres photo.jpg
image/jpeg 102.94 KB
9/2/2021
102.94 KB
D30H04XGAG4TB lowres photo.jpg
image/jpeg 71.41 KB
9/2/2021
71.41 KB

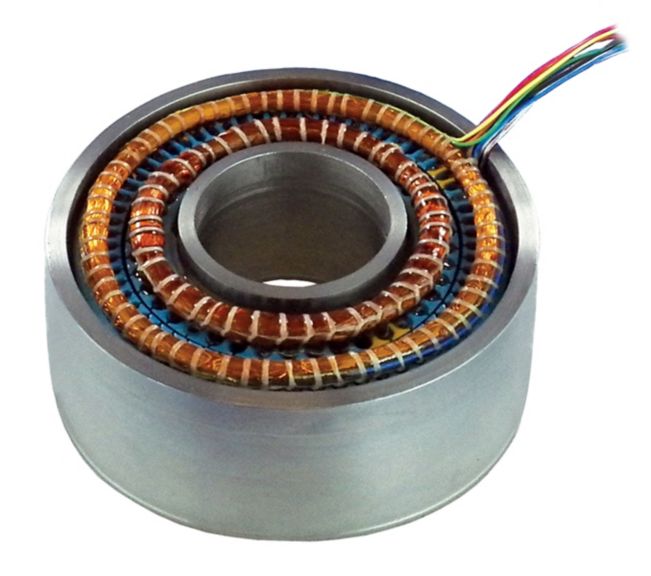

D30D12XGASNTB highres photo.jpg
