Amplified Airflow Sensors

HAF Series - High FLow

Compensated. ±50 SCCM to ±750 SCCM - Analog or digital output. 10 SLPM to 300 SLPM - Digital output

Honeywell Zephyr™ HAF Series sensors provide a digital interface for reading airflow over specified full-scale flow and compensated temperature ranges. The thermally isolated heater and temperature sensing elements help these sensors provide a fast response to air or gas flow.

Zephyr sensors are designed to measure mass flow of air and other non-corrosive gases.

10 SLPM to 300 SLPM

Standard flow ranges are 10 SLPM, 15 SLPM, 20 SLPM, 50 SLPM, 100 SLPM, 200 SLPM or 300 SLPM, with custom flow ranges available. The sensors are fully calibrated and temperature compensated with an onboard Application Specific Integrated Circuit (ASIC).

The HAF Series >10 SLPM is compensated over the calibrated temperature range of 0 °C to 50 °C [32 °F to 122 °F]. The state-of-the-art ASIC-based compensation provides digital (I2C) outputs with a response time of 1 ms.

±50 SCCM to ±750 SCCM

Standard flow ranges are available at ±50, ±100, ±200, ±400 or ±750 SCCM. Custom flow ranges are also available. The sensors are fully calibrated and temperature compensated with an onboard Application Specific Integrated Circuit (ASIC).

The HAF Series is compensated over the temperature range of 0 °C to 50 °C [32 °F to 122 °F] and operates across a temperature range of -20 °C to 70 °C [-4 °F to 158 °F]. The state-of-the-art ASIC-based compensation provides digital (I2C) outputs with a response time of 1 ms.

These sensors operate on the heat transfer principle to measure mass airflow. They consist of a microbridge Microelectronic and Microelectromechanical System (MEMS) with temperature-sensitive resistors deposited with thin films of platinum and silicon nitride. The MEMS sensing die is located in a precise and carefully designed airflow channel to provide repeatable response to flow.

Zephyr sensors provide the customer with enhanced reliability, high accuracy, repeatable measurements and the ability to customize sensor options to meet many specific application needs. The combination of rugged housings with a stable substrate makes these products extremely robust. They are designed and manufactured according to ISO 9001 standards.

Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Honeywell ZephyrTM Digital Airflow SensorsHAF Series—High Accuracy: 10 SLPM, 15 SLPM, 20 SLPM,50 SLPM, 100 SLPM, 200 SLPM, 300 SLPM
application/pdf 1.7 MB
1/3/2022
1.7 MB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Airflow sensors contain advanced microstructure technology to provide a sensitive and fast responseto flow, amount/direction of air or other gases. Potential applications include HVAC, gas metering, chromatography, vent hoods, and medical equipment.
application/pdf 2.76 MB
9/2/2021
2.76 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Honeywell Zephyr™ Digital Airflow Sensors: HAF Series-High Accuracy, ±50 SCCM to ±750 SCCM Installation Instructions
application/pdf 527.69 KB
9/2/2021
527.69 KB
Modelo CAD
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
HAF Series - High Flow CAD Models - grouped
application/zip 796.24 KB
9/2/2021
796.24 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Embedded Products in Hospital Applications
application/pdf 4.71 MB
9/2/2021
4.71 MB
Sensors and Switches for Medical Applications
application/pdf 10.15 MB
7/21/2022
10.15 MB
Controlling the Future with Technology
application/pdf 11.81 MB
8/17/2022
11.81 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Mass Flow Sensors: Mass Flow versus Volumetric Flow and Flow Rate Unit Conversions
application/pdf 199.5 KB
9/2/2021
199.5 KB
Mass Airflow Sensors Measuring Low Differential Pressures Altitude and Gas Density Correction
application/pdf 89.36 KB
9/2/2021
89.36 KB
Gas Media Compatibility & Correction Factors
application/pdf 146.35 KB
9/2/2021
146.35 KB
Mass Airflow Sensors Particle Contamination and Filter Manufacturers
application/pdf 107.23 KB
9/2/2021
107.23 KB
Airflow Sensor Glossary of Terms
application/pdf 163.38 KB
9/2/2021
163.38 KB
Pressure or Airflow Sensors?
application/pdf 564.63 KB
9/2/2021
564.63 KB
Energy and Environmental Design Trends
application/pdf 833.47 KB
9/2/2021
833.47 KB
Industrial Product Line Card --
application/pdf 2.24 MB
10/25/2022
2.24 MB
Catálogo
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Honeywell Zephyr™ Airflow Sensors, HAF Series-High Accuracy, Ł50 SCCM to Ł750 SCCM
application/pdf 83.89 KB
9/9/2021
83.89 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Sensors and Switches: Solutions for Medical Applications
application/pdf 1.34 MB
7/21/2022
1.34 MB
Sensors in Sleep Apnea Machines
application/pdf 1.88 MB
9/2/2021
1.88 MB
Solutions For Healthier Air & HVAC Systems
application/pdf 3.88 MB
5/31/2022
3.88 MB
Solutions for Ventilators
application/pdf 2.78 MB
11/25/2021
2.78 MB
Honeywell Zephyr™ Analog and Digital Airflow Sensors: HAF Series-High Accuracy, Ł50 SCCM to Ł750 SCCM
application/pdf 491.14 KB
9/2/2021
491.14 KB
Sensors in Anesthesia Machines
application/pdf 2.3 MB
9/2/2021
2.3 MB
Sensors and Switches for HVAC Applications
application/pdf 4.51 MB
9/2/2021
4.51 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

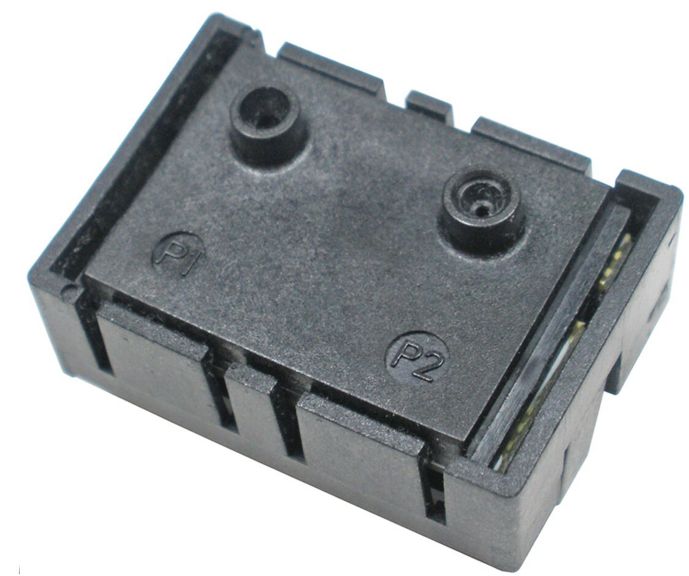

SS port housing lowres photo
image/jpeg 16.12 KB
9/2/2021
16.12 KB

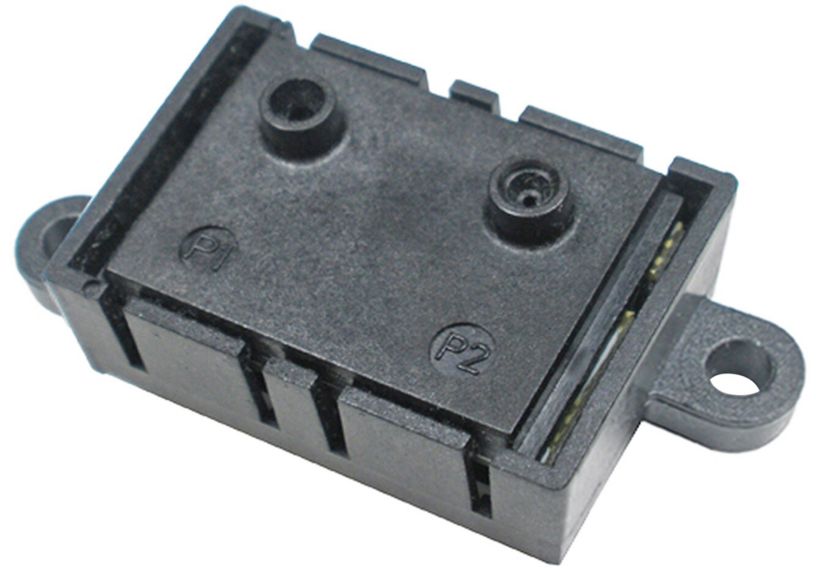

SF port housing highres photo
image/jpeg 125.67 KB
9/2/2021
125.67 KB

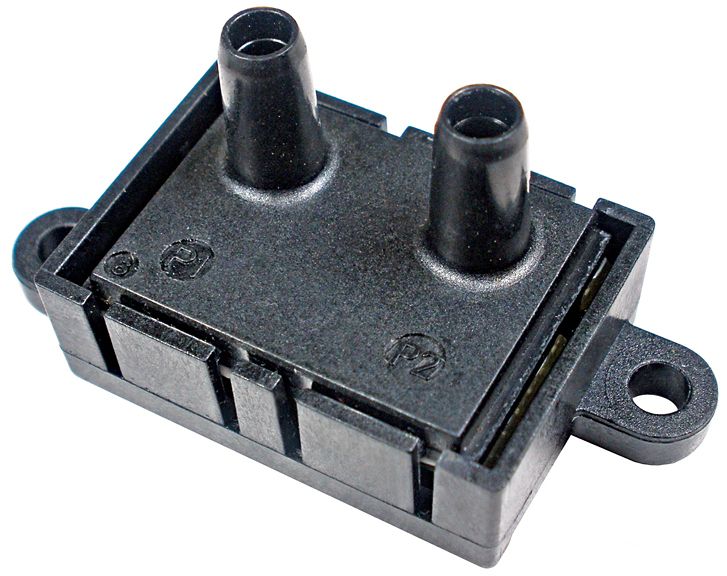

LF port housing lowres photo
