Linear and Angle Sensor ICs

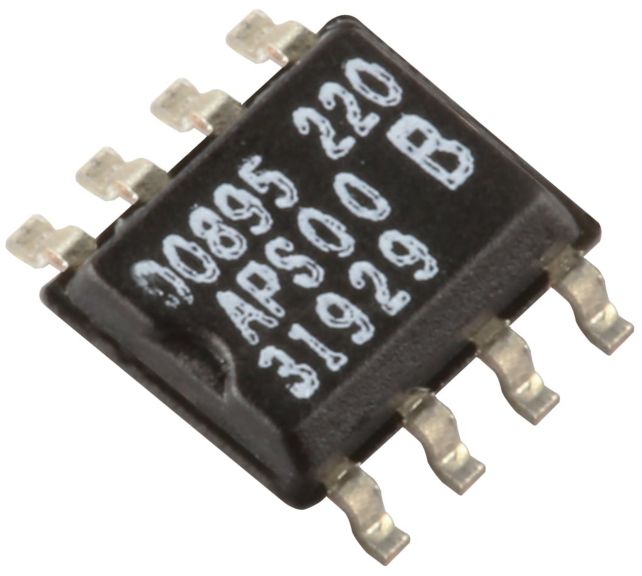

APS00B Angle Sensor IC

High-resolution magnetoresisitve displacement. SOIC-8 package. Outputs dual analog voltages responding to changes in magnetic field angle

Honeywell's APS00B High Resolution Angular Position Sensor integrated circuit (IC) is a miniature surface mount device for angular or rotary displacement designed for magnetic saturating field sensing.

The APS00B creates an analog output voltage that varies with the direction of the magnetic flux passing over the sensor IC surface. It contains dual, saturated-mode Wheatstone bridges that generate quadrature (sine and cosine) signals to provide an extended range of angular measurements up to 180°.

This product is a cost-effective and space-efficient solution for high-volume OEM designs. Potential applications include position sensing, rotary speed and angle detection, and non-contact precision location measurement systems.

APS00B sensor ICs use Honeywell Anisotropic Magnetoresistive (AMR) technology that provides advantages over Hall-effect-based magnetic sensors. They are able to resolve better than a tenth of a degree or a tenth of a millimeter, withstand large variations in magnet-to-sensor gaps, and exhibit insensitivity to shocks and vibrations. Honeywell's Magnetic Sensors are among the most precise and reliable position sensors in the industry.

These surface mount devices are mounted directly on the electrical traces on a PC (Printed Circuit) board. They are attached by an automatic solder reflow operation which requires no hole, so it may help reduce the cost of the PC board.

Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
APS00B High Resolution Magnetic Angular Position Sensor IC
application/pdf 699.96 KB
9/2/2021
699.96 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Transportation Range Guide
application/pdf 18.57 MB
10/4/2021
18.57 MB
Position Sensors Product Range Guide
application/pdf 4.85 MB
10/4/2021
4.85 MB
instruções de instalação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
APS00B High Resolution Magnetic Angular Position Sensor ICs
application/pdf 654.9 KB
9/2/2021
654.9 KB
Modelo CAD
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Magnetic Sensor IC 8-Pin SOIC CAD Model
application/zip 67.92 KB
9/2/2021
67.92 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Making Sense of Sensing
application/pdf 3.37 MB
10/6/2021
3.37 MB
Controlling the Future with Technology
application/pdf 11.81 MB
8/17/2022
11.81 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Magnetic Sensor IC Product Line Card
application/pdf 480.99 KB
9/2/2021
480.99 KB
Magnetic Sensor IC Selection Chart --
application/pdf 372.87 KB
10/25/2022
372.87 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Sensors and Switches in Mobile Cranes
application/pdf 1.98 MB
9/2/2021
1.98 MB
Construction Vehicles -
application/pdf 984.29 KB
10/25/2022
984.29 KB
Solutions For Healthier Air & HVAC Systems
application/pdf 3.88 MB
5/31/2022
3.88 MB
How to Apply Honeywell APS00B Angular Position Sensor ICs
application/pdf 589.62 KB
9/2/2021
589.62 KB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
APS00B Angle Sensor IC Product Photo
application/zip 77.66 KB
9/2/2021
77.66 KB
8-pin SOIC APS00B highres photo
image/jpeg 63.95 KB
9/2/2021
63.95 KB
8-pin SOIC APS00B lowres photo
image/jpeg 14.85 KB
9/2/2021
14.85 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Magnetic Sensor IC Product Line Card
480.99 KB
9/2/2021
480.99 KB
Magnetic Sensor IC Selection Chart --
372.87 KB
10/25/2022
372.87 KB
APS00B Angle Sensor IC Product Photo
77.66 KB
9/2/2021
77.66 KB
Transportation Range Guide
18.57 MB
10/4/2021
18.57 MB
Defence Ground Vehicles -
872.87 KB
10/25/2022
872.87 KB
Sensors and Switches in Mobile Cranes
1.98 MB
9/2/2021
1.98 MB
Construction Vehicles -
984.29 KB
10/25/2022
984.29 KB
8-pin SOIC APS00B highres photo
63.95 KB
9/2/2021
63.95 KB
Position Sensors Product Range Guide
4.85 MB
10/4/2021
4.85 MB
APS00B High Resolution Magnetic Angular Position Sensor IC
699.96 KB
9/2/2021
699.96 KB
8-pin SOIC APS00B lowres photo
14.85 KB
9/2/2021
14.85 KB
Solutions For Healthier Air & HVAC Systems
3.88 MB
5/31/2022
3.88 MB
How to Apply Honeywell APS00B Angular Position Sensor ICs
589.62 KB
9/2/2021
589.62 KB
Magnetic Sensor IC 8-Pin SOIC CAD Model
67.92 KB
9/2/2021
67.92 KB
APS00B High Resolution Magnetic Angular Position Sensor ICs
654.9 KB
9/2/2021
654.9 KB
Agricultural Vehicles -
1.11 MB
10/25/2022
1.11 MB
Making Sense of Sensing
3.37 MB
10/6/2021
3.37 MB
Controlling the Future with Technology
11.81 MB
8/17/2022
11.81 MB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
APS00B High Resolution Magnetic Angular Position Sensor IC
699.96 KB
9/2/2021
Transportation Range Guide
18.57 MB
10/4/2021
Position Sensors Product Range Guide
4.85 MB
10/4/2021
APS00B High Resolution Magnetic Angular Position Sensor ICs
654.9 KB
9/2/2021
Magnetic Sensor IC 8-Pin SOIC CAD Model
67.92 KB
9/2/2021
Making Sense of Sensing
3.37 MB
10/6/2021
Controlling the Future with Technology
11.81 MB
8/17/2022
Magnetic Sensor IC Product Line Card
480.99 KB
9/2/2021
Magnetic Sensor IC Selection Chart --
372.87 KB
10/25/2022
Defence Ground Vehicles -
872.87 KB
10/25/2022
Sensors and Switches in Mobile Cranes
1.98 MB
9/2/2021
Construction Vehicles -
984.29 KB
10/25/2022
Solutions For Healthier Air & HVAC Systems
3.88 MB
5/31/2022
How to Apply Honeywell APS00B Angular Position Sensor ICs
589.62 KB
9/2/2021
Agricultural Vehicles -
1.11 MB
10/25/2022
APS00B Angle Sensor IC Product Photo
77.66 KB
9/2/2021
8-pin SOIC APS00B highres photo
63.95 KB
9/2/2021
8-pin SOIC APS00B lowres photo
14.85 KB
9/2/2021
SKU
Description
alt
APS00A
APS00A Instrumentation amplifier for the APS00B series high resolution magnetic angular position sensor IC, plastic, surface mount, SOIC-8, 1000 units/tape and 178 mm [7 in] reel
alt
APS00B
APS00B High resolution magnetic angular position sensor IC, plastic, surface mount, SOIC-8, 1000 units/tape and 178 mm [7 in] reel
SKU
Description
alt
APS00A
APS00A Instrumentation amplifier for the APS00B series high resolution magnetic angular position sensor IC, plastic, surface mount, SOIC-8, 1000 units/tape and 178 mm [7 in] reel
alt
APS00B
APS00B High resolution magnetic angular position sensor IC, plastic, surface mount, SOIC-8, 1000 units/tape and 178 mm [7 in] reel
