General Purpose Accelerometers

Model MA15 Series

General purpose accelerometers. Current output. Mating connector or integral cable. 1/4-28 UNF Female mounting hole. 50 G dynamic range

The Model MA15 is a low-cost amplified piezoelectric accelerometer which is designed to be used in industrial test and automation environments: including laboratory testing, modal studies and test cells. The constant current low output impedance output combined with the ability to drive high load capacitance allows long runs of low cost cable without degradation of data. The Model MA15 features a high natural frequency, a wide frequency range and a flat sensitivity vs. temperature response over the temperature range.

The seismic element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity. The stainless steel materials are non-magnetic resulting in very low magnetic field susceptibility. These features, together with a sealed body, assure accurate and reliable data. The Model MA15 is available in a number of configurations and options that include connector or integral stainless steel armored cable (specify length at time of ordering) and an intrinsically safe option. The mounting hole can be supplied with different threads. The Model MA15 can be supplied in a number of different sensitivities to suit the expected vibration levels for the application.

Features
  • General purpose
  • 4 mA to 20 mA two-wire proportional to G output
  • 2 Hz to 1 kHz usable range
  • Intrisically safe option
  • Stainless steel overbraided PTFE cable
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Accelerometer Accessories Datasheet
application/pdf 325.39 KB
9/2/2021
325.39 KB
Test & Measurement Model MA15 Accelerometer Datasheet
application/pdf 203.24 KB
9/2/2021
203.24 KB
Accelerometer Mating Connector/Cable Assembly Datasheet
application/pdf 325.33 KB
9/2/2021
325.33 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model MA15 Series Product Photo
application/zip 491.23 KB
9/2/2021
491.23 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model MA15 highres photo
image/jpeg 183.67 KB
9/2/2021
183.67 KB
Model MA15 lowres photo
image/jpeg 27.83 KB
9/2/2021
27.83 KB

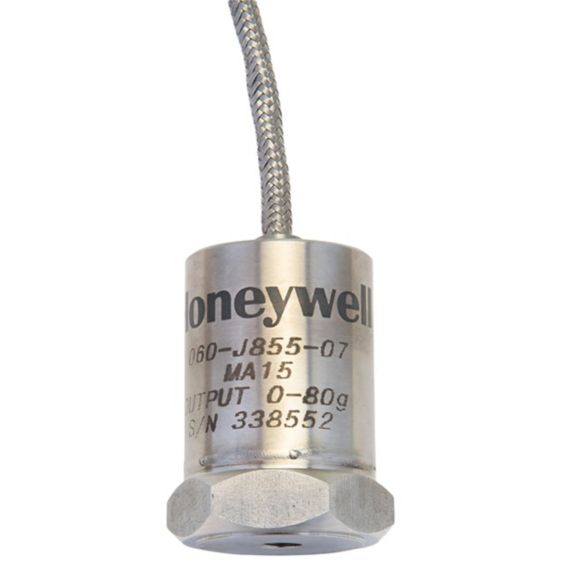

Model MA15 Front View
image/png 80.45 KB
9/2/2021
80.45 KB

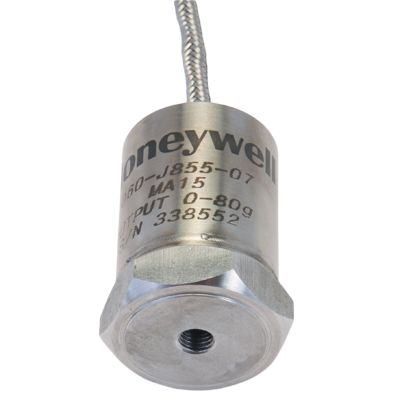

Model MA15 Bottom View
image/png 103.88 KB
9/2/2021
103.88 KB

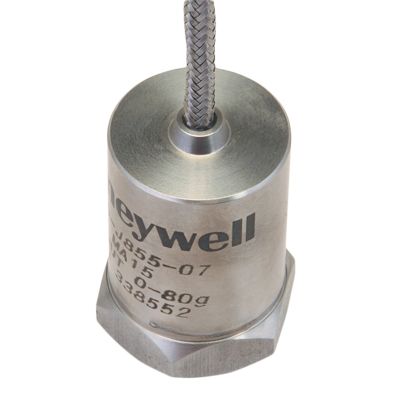

Model MA15 Top View
