General Purpose Accelerometers

Model MA331

dc response accelerometers for use with strain gage amps. Integral cable. Square base with 4 6-40 UNF mounting bolts. ±1 G to ±50 G dynamic range

The MA331/332 Series accelerometers are designed to be used in Industrial test and automation environments including laboratory testing, modal studies and test cells in application requiring a frequency response down to 0 Hz. The MA331/332 Series accelerometers come in different styles. This mV output version is for applications where strain gage signal conditioning is likely to be used to condition the signal. The Model MA331/332 Series can also be supplied in a number of different frequency ranges and sensitivities to suit the application. The stainless steel materials are non-magnetic resulting in very low magnetic field susceptibility. These features, together with a sealed body, assure accurate and reliable data.

Features
  • dc response
  • mV/V output
  • For use with strain gage amps
  • Stainless steel overbraided PTFE cable
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Models MA331 and MA332 Accelerometer Datasheet
application/pdf 197.15 KB
9/2/2021
197.15 KB
Accelerometer Mating Connector/Cable Assembly Datasheet
application/pdf 325.33 KB
9/2/2021
325.33 KB
Test & Measurement Accelerometer Accessories Datasheet
application/pdf 325.39 KB
9/2/2021
325.39 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model MA331 Product Photo
application/zip 604.79 KB
9/2/2021
604.79 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model MA331 highres photo
image/jpeg 15.84 KB
9/2/2021
15.84 KB

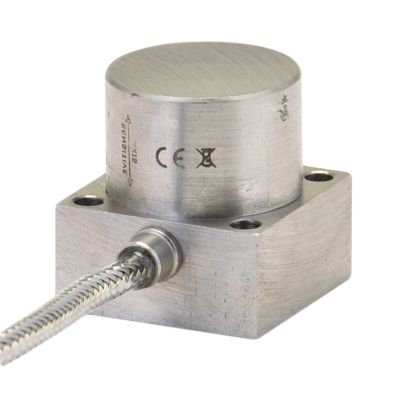

Model MA331 Top Angle View
image/png 138.38 KB
9/2/2021
138.38 KB
Model MA331 lowres photo
image/jpeg 4.76 KB
9/2/2021
4.76 KB

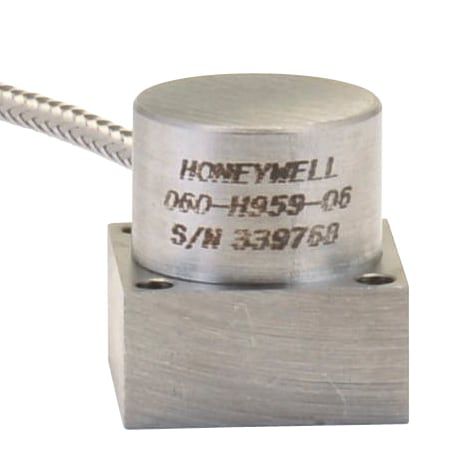

Model MA331 Front View
image/png 126.03 KB
9/2/2021
126.03 KB

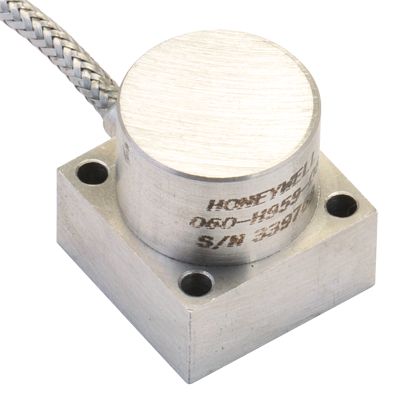

Model MA331 Top View
image/png 159.1 KB
9/2/2021
159.1 KB

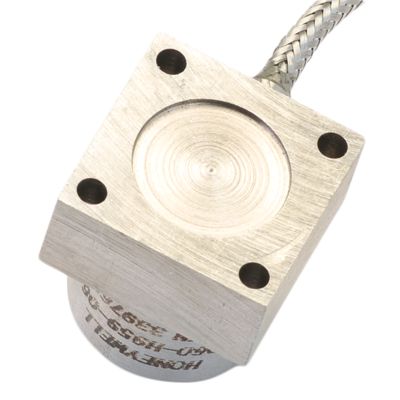

Model MA331 Bottom View
image/png 161.99 KB
9/2/2021
161.99 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model MA331 highres photo
15.84 KB
9/2/2021
15.84 KB
Test & Measurement Models MA331 and MA332 Accelerometer Datasheet
197.15 KB
9/2/2021
197.15 KB
Accelerometer Mating Connector/Cable Assembly Datasheet
325.33 KB
9/2/2021
325.33 KB
Model MA331 Product Photo
604.79 KB
9/2/2021
604.79 KB
Model MA331 Top Angle View
138.38 KB
9/2/2021
138.38 KB
Model MA331 lowres photo
4.76 KB
9/2/2021
4.76 KB
Test & Measurement Accelerometer Accessories Datasheet
325.39 KB
9/2/2021
325.39 KB
T&M Overview Brochure
428.72 KB
9/2/2021
428.72 KB
Model MA331 Front View
126.03 KB
9/2/2021
126.03 KB
Model MA331 Top View
159.1 KB
9/2/2021
159.1 KB
Model MA331 Bottom View
161.99 KB
9/2/2021
161.99 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Models MA331 and MA332 Accelerometer Datasheet
197.15 KB
9/2/2021
Accelerometer Mating Connector/Cable Assembly Datasheet
325.33 KB
9/2/2021
Test & Measurement Accelerometer Accessories Datasheet
325.39 KB
9/2/2021
T&M Overview Brochure
428.72 KB
9/2/2021
Model MA331 Product Photo
604.79 KB
9/2/2021
Model MA331 highres photo
15.84 KB
9/2/2021
Model MA331 Top Angle View
138.38 KB
9/2/2021
Model MA331 lowres photo
4.76 KB
9/2/2021
Model MA331 Front View
126.03 KB
9/2/2021
Model MA331 Top View
159.1 KB
9/2/2021
Model MA331 Bottom View
161.99 KB
9/2/2021
SKU
Description
alt
060-J077-03
Model MA331, low frequency mV/V accelerometer, ±5 G, square base, side cable exit, sensitivity 15 mV to 75 mV, F.S. useable frequency range dc to 300 Hz, with 16 feet stainless steel overbraided PTFE cable
SKU
Description
alt
060-J077-03
Model MA331, low frequency mV/V accelerometer, ±5 G, square base, side cable exit, sensitivity 15 mV to 75 mV, F.S. useable frequency range dc to 300 Hz, with 16 feet stainless steel overbraided PTFE cable
