High Frequency Accelerometers

Model MA342 Series

High frequency accelerometers. 2 Hz to 10 kHz. 1/4-28 UNF female mounting threads. 2-pin MS connector

The MA341/342 Series miniature amplified piezoelectric accelerometers are designed to be used in Industrial test and automation environments: including laboratory testing, modal studies and test cells where space is limited and small size is desired or a high natural frequency is required. The constant current low output impedance output combined with the ability to drive high load capacitance allows long runs of low cost cable without degradation of data. The seismic element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity.

The stainless steel materials are non-magnetic resulting in very low magnetic field susceptibility. These features, together with a sealed body, assure accurate and reliable data. The MA341/342 series is available in a number of configurations and options that includes different mounting arrangement patterns and different stainless steel armored cable lengths, (specify length at time of ordering).

Features
  • High frequency
  • 2 Hz to 15 kHz usable frequency range
  • IEPE output
  • mV/G output
  • Isolated ac output
  • Stainless steel overbraided PTFE cable
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Models MA341 and MA342 Accelerometer Datasheet
application/pdf 224.35 KB
9/2/2021
224.35 KB
Accelerometer Mating Connector/Cable Assembly Datasheet
application/pdf 325.33 KB
9/2/2021
325.33 KB
Test & Measurement Accelerometer Accessories Datasheet
application/pdf 325.39 KB
9/2/2021
325.39 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model MA342 Series Product Photo
application/zip 216.04 KB
9/2/2021
216.04 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

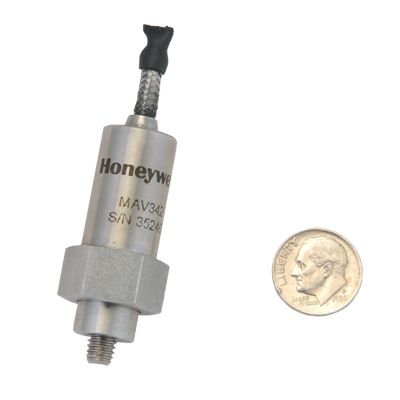

Model MA342 Top Angle View
image/png 72.35 KB
9/2/2021
72.35 KB

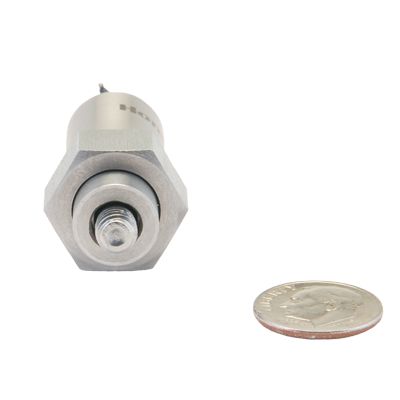

Model MA342 Bottom View
image/png 60.03 KB
9/2/2021
60.03 KB
Model MA342 lowres photo
image/jpeg 6.12 KB
9/2/2021
6.12 KB

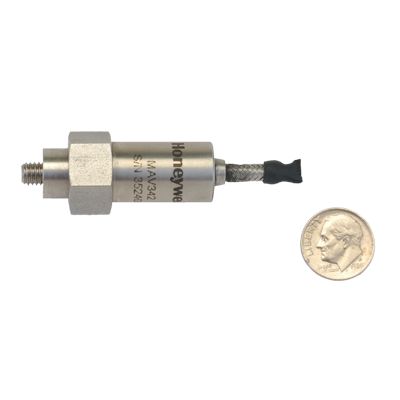

Model MA342 Top View
image/png 48.11 KB
9/2/2021
48.11 KB

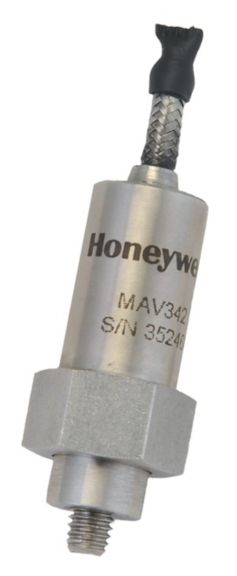

Model MA342 highres photo
image/jpeg 32.96 KB
9/2/2021
32.96 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model MA342 Series Product Photo
216.04 KB
9/2/2021
216.04 KB
Test & Measurement Models MA341 and MA342 Accelerometer Datasheet
224.35 KB
9/2/2021
224.35 KB
Model MA342 Top Angle View
72.35 KB
9/2/2021
72.35 KB
Model MA342 Bottom View
60.03 KB
9/2/2021
60.03 KB
T&M Overview Brochure
428.72 KB
9/2/2021
428.72 KB
Model MA342 lowres photo
6.12 KB
9/2/2021
6.12 KB
Model MA342 Top View
48.11 KB
9/2/2021
48.11 KB
Model MA342 highres photo
32.96 KB
9/2/2021
32.96 KB
Accelerometer Mating Connector/Cable Assembly Datasheet
325.33 KB
9/2/2021
325.33 KB
Test & Measurement Accelerometer Accessories Datasheet
325.39 KB
9/2/2021
325.39 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Models MA341 and MA342 Accelerometer Datasheet
224.35 KB
9/2/2021
Accelerometer Mating Connector/Cable Assembly Datasheet
325.33 KB
9/2/2021
Test & Measurement Accelerometer Accessories Datasheet
325.39 KB
9/2/2021
T&M Overview Brochure
428.72 KB
9/2/2021
Model MA342 Series Product Photo
216.04 KB
9/2/2021
Model MA342 Top Angle View
72.35 KB
9/2/2021
Model MA342 Bottom View
60.03 KB
9/2/2021
Model MA342 lowres photo
6.12 KB
9/2/2021
Model MA342 Top View
48.11 KB
9/2/2021
Model MA342 highres photo
32.96 KB
9/2/2021
SKU
Description
alt
060-J128-01
Model MA342, high frequency IEPE accelerometer, 100 mV/G, top cable exit, 1/4-28 UNF swivel base, 5 m integral stainless steel overbraided PTFE cable, useable freq. range 2 Hz to 15 KHz, current range 0.5 mA to 8 mA
SKU
Description
alt
060-J128-01
Model MA342, high frequency IEPE accelerometer, 100 mV/G, top cable exit, 1/4-28 UNF swivel base, 5 m integral stainless steel overbraided PTFE cable, useable freq. range 2 Hz to 15 KHz, current range 0.5 mA to 8 mA
